2-51

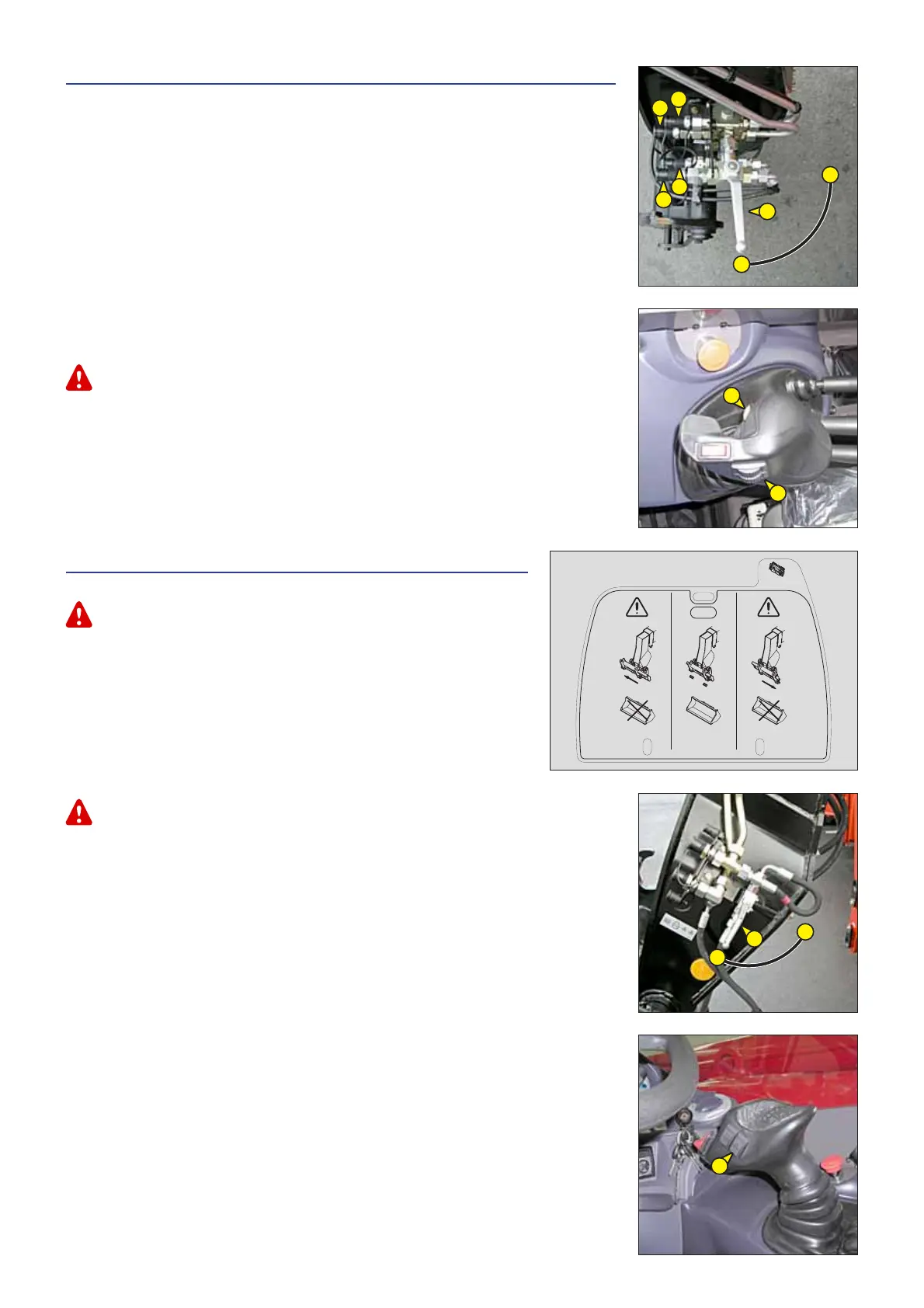

11 - JIB HEAD ELECTROVALVE + HYDRAULIC ATTACHMENT LOCKING
The addition of these two options on the attachment line allows two hydraulic functions
to be used and locks the attachment onto the carriage.
ATTACHMENT LINE L1 CONTROL
- Set valve 1 to position A.
- Push button 2 forward or backward.
ATTACHMENT LINE L2 CONTROL
- Set valve 1 to position A.
- Hold down button 3 and push button 2 forwards or backwards.
ATTACHMENT LOCKING CONTROL
- Set valve 1 to position B.
- Hold down button 3 and push button 2 forward to lock the attachment and backward
to release it.
Once the attachment is locked, return valve 1 to position A to prevent accidental release of the
attachment.
12 - SINGLE SIDE-SHIFT CARRIAGE (TSDL)
The single side-shift carriage (TSDL) is only compatible with the following
attachments:
• floating fork carriage (TFF)
• tilting fork carriage (PFB)
• loading bucket (CBR)
• concrete bucket (BB, BBG)
• chute bucket (GL)
• crane jib and crane jib with winch (P, PT, PO, PC)
• winch (H)
• fixed platform, swivelling platform, roofer’s platform.
The use of any other attachment on the TSDL is forbidden.
If it is being used with a loading bucket (CBR), the single side-shift carriage MUST
be centred and no side-shift operations performed.
WITH JIB HEAD COUPLER
ATTACHMENT LINE CONTROL
- Set valve 1 to position A.
- Push button 2 forward or backward.
TSDL CONTROL
- Set valve 1 to position B.
- Push button 2 forward to move sideways to the right, and backward to move sideways to
the left.
3
2
B
A
1
2
N°272186
TSDL
B
A
1
L2
L2
L1
L1
