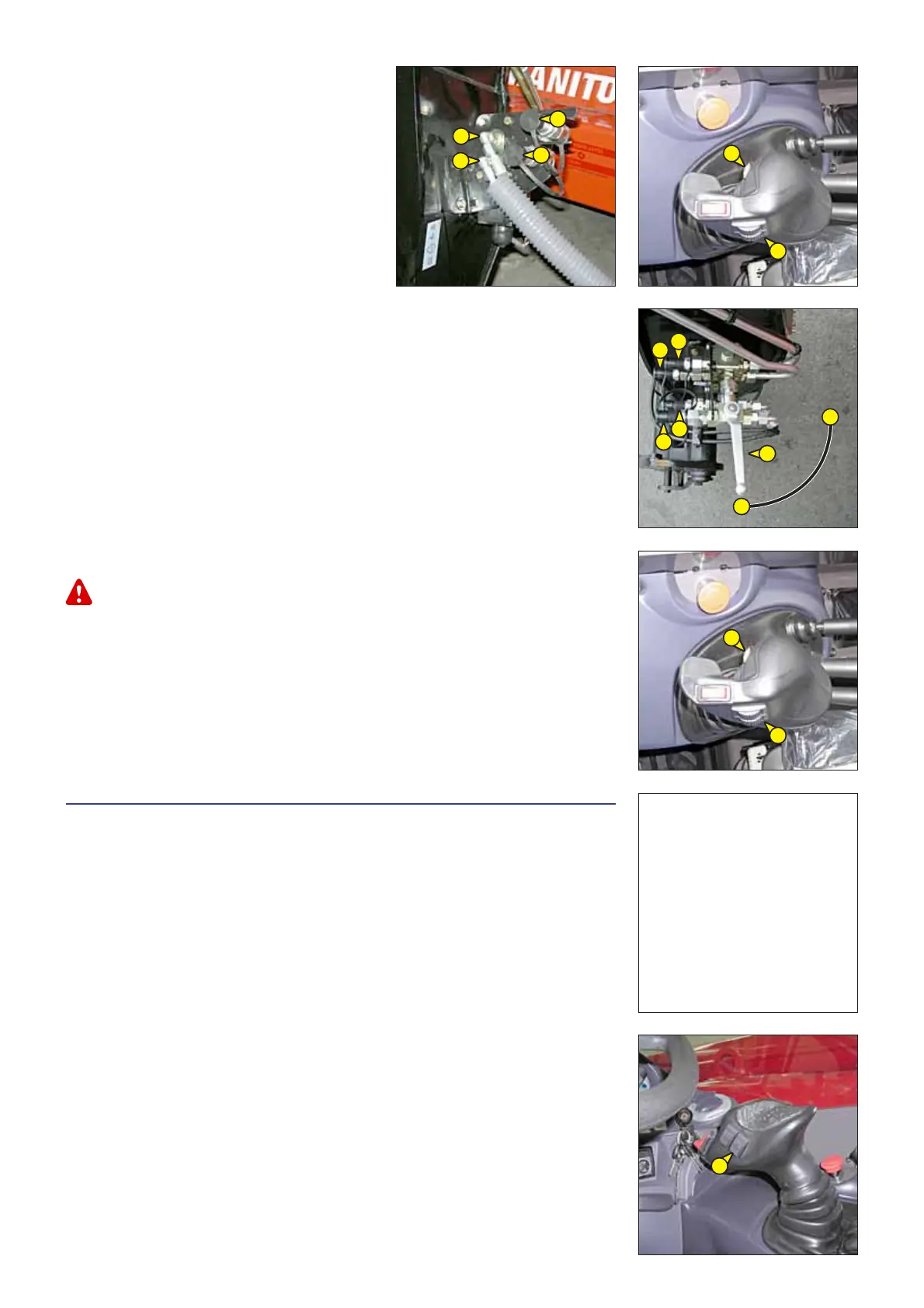

WITH JIB HEAD ELECTROVALVE
TSDL LINE L1 CONTROL
- Push button 2 forward to move sideways to the
right, and backward to move sideways to the left.
ATTACHMENT LINE L2 CONTROL
- Hold down button 3 and push button 2 forwards
or backwards.
WITH JIB HEAD ELECTROVALVE + PREARRANGED HYDRAULIC ATTACHMENT
LOCKING
TSDL LINE L1 CONTROL
- Push button 2 forward to move sideways to the right, and backward to move sideways to
the left.
ATTACHMENT LINE L2 CONTROL
- Set valve 1 to position A.
- Hold down button 3 and push button 2 forwards or backwards.
ATTACHMENT LOCKING CONTROL
- Set valve 1 to position B.
- Hold down button 3 and push button 2 forward to lock the attachment and backward to
release it.
Once the attachment is locked, return valve 1 to position A to prevent accidental release of the
attachment.
13 - SINGLE OR DUAL EFFECT REAR HYDRAULIC CONTROL PREDISPOSITION
Enables the use of a hydraulic attachment at the rear of the lift truck (e.g. a trailer with
hydraulic tipping).
REAR HYDRAULIC CONTROL
- Press down on switch 1 (indicator lamp lit) to power the hydraulic control at the rear of the
lift truck.
- Push button 2 forward or backward.
