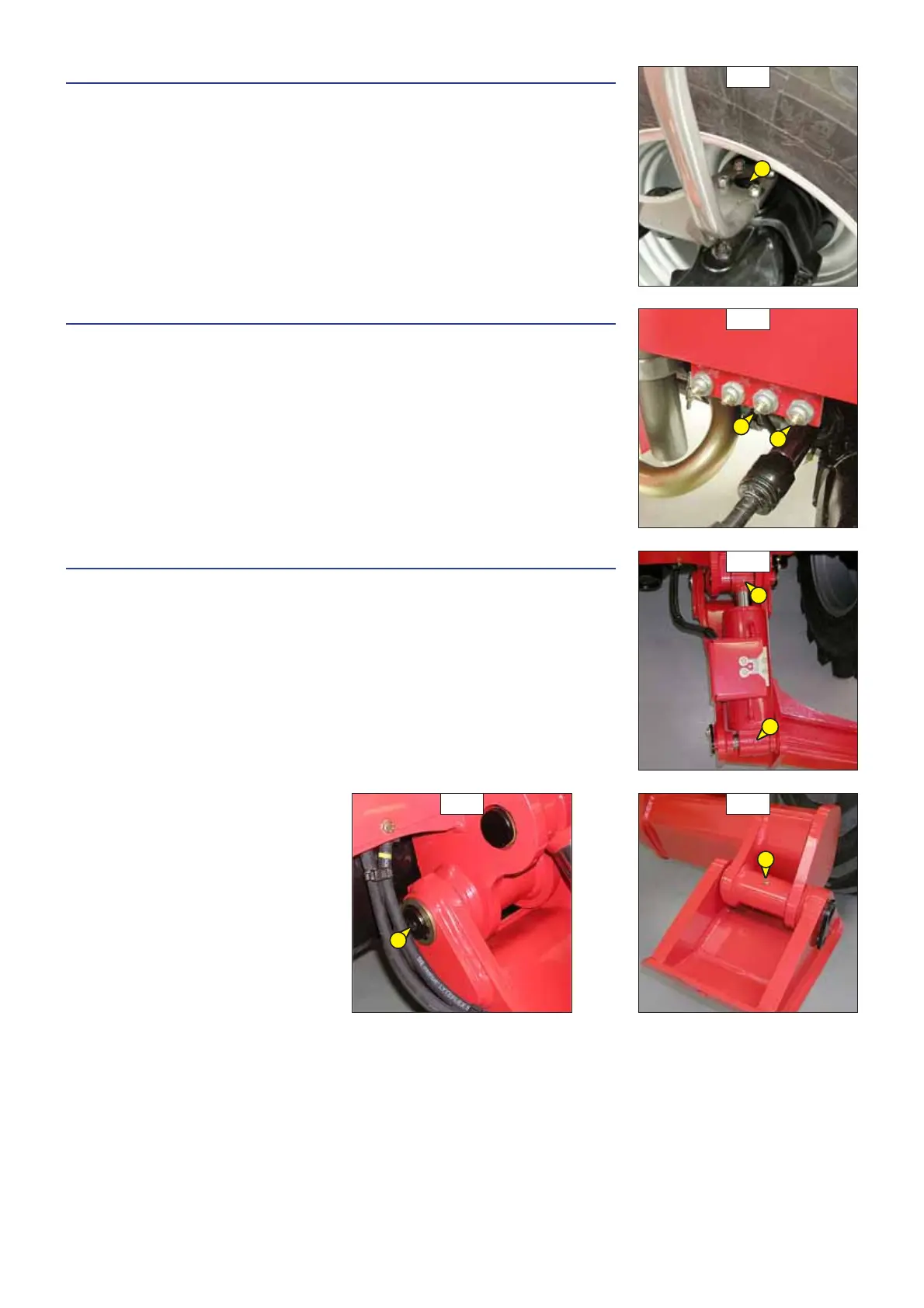

B10 - FRONT AND REAR WHEEL REDUCER PIVOTS
GREASE
- Clean and lubricate the points 1 (8 lubricators) (fig. B10) with grease (see: 3 - MAINTENANCE:
LUBRICANTS AND FUEL) and remove the surplus of grease.
B11 - REAR AXLE OSCILLATION
GREASE
- Clean and lubricate the points 1 (2 lubricators) (fig. B11) with grease (see: 3 - MAINTENANCE:
LUBRICANTS AND FUEL) and remove the surplus of grease.
B12 - STABILIZERS
GREASE
MT 1030 S Turbo Série 5-E3
- Clean and lubricate the following points with grease (see: 3 - MAINTENANCE: LUBRICANTS AND
FUEL) and remove the surplus of grease.
1 - Nipples on stabilizer actuator shafts (4 nipples) (fig. B12/1).
2 - Nipples on stabilizer actuator shafts (4 nipples) (fig. B12/2 et B12/3).
B10
1
B11
1
1
B12/3
2
B12/2
2
B12/1
1
1
