3-41
G3 - FRONT HEADLIGHTS
ADJUST
RECOMMENDED SETTING
(as per standard ECE-76/756 76/761 ECE20)

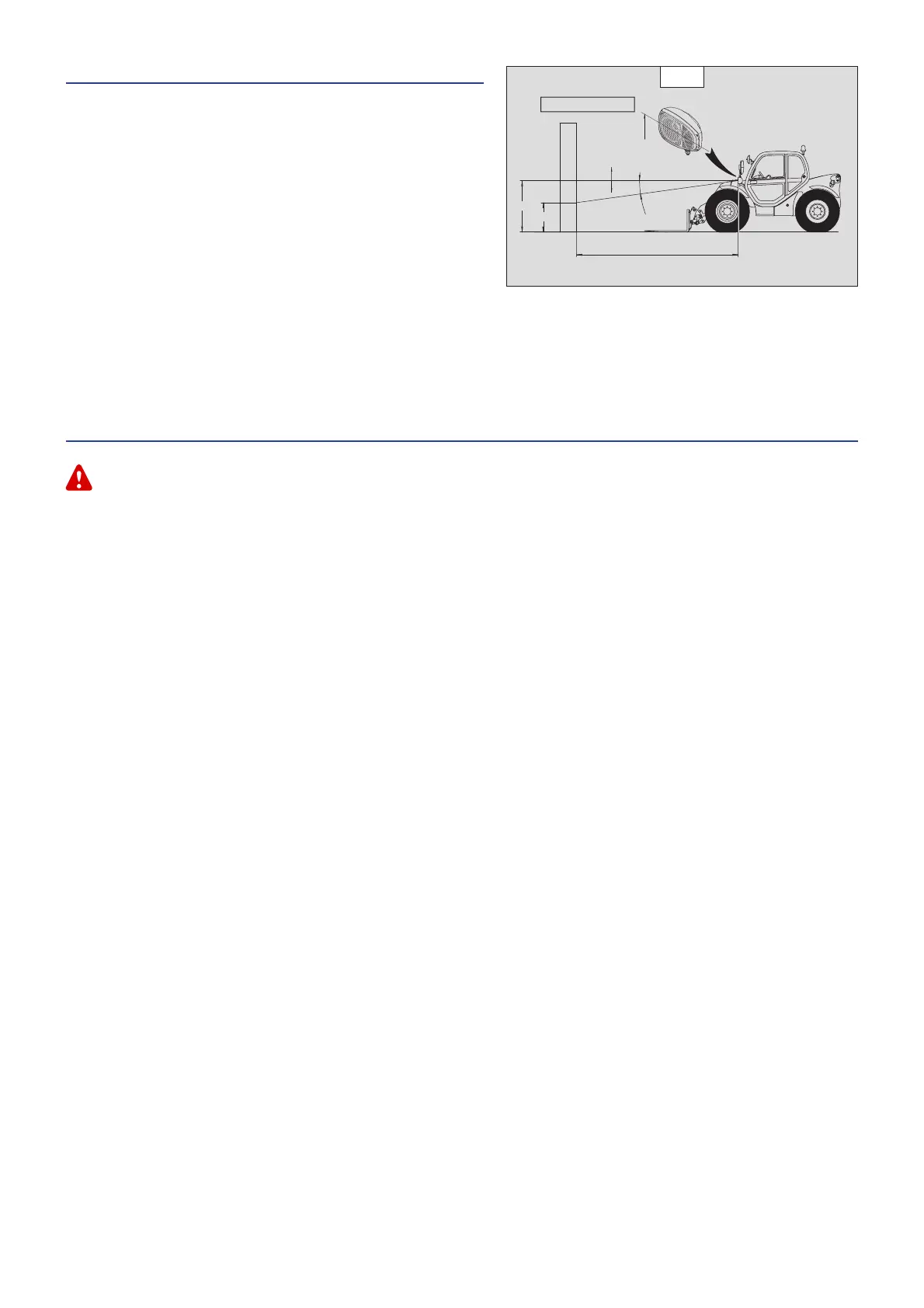

Set to -2 % of the dipped beam in relation to the horizontal line of the
headlamp.
ADJUSTING PROCEDURE
- Place the lift truck unloaded and in the transport position and
perpendicular to a white wall on flat, level ground (fig. G3).
- Check the tyre pressures (see: 2 - DESCRIPTION: CHARACTERISTICS).
- Place the forward/reverse selector in neutral and release the parking
brake.
CALCULATING THE HEIGHT OF THE DIPPED BEAM (H2)
• h1 = Height of the dipped beam in relation to the ground.
• h2 = Height of the adjusted beam.
• l= Distance between the dipped beam and the white wall.
G4 - LIFT TRUCK
TOW
Do not tow the lift truck at more than 25 km/h.
- Place the forward/reverse selector in neutral and the gear shift in neutral (according to model of lift truck).
- Release the parking brake.
- Put the warning lights on.
- If the I.C. engine is not running there will be no steering or braking assistance. Operate the steering and pedal slowly avoiding sudden
jerky movements.
h1
+%
-%
l
h1
h2
-2%
h2 = h1 - (l x 2 / 100)
G3
