Manitou MT 732 Operator's Manual

3-42

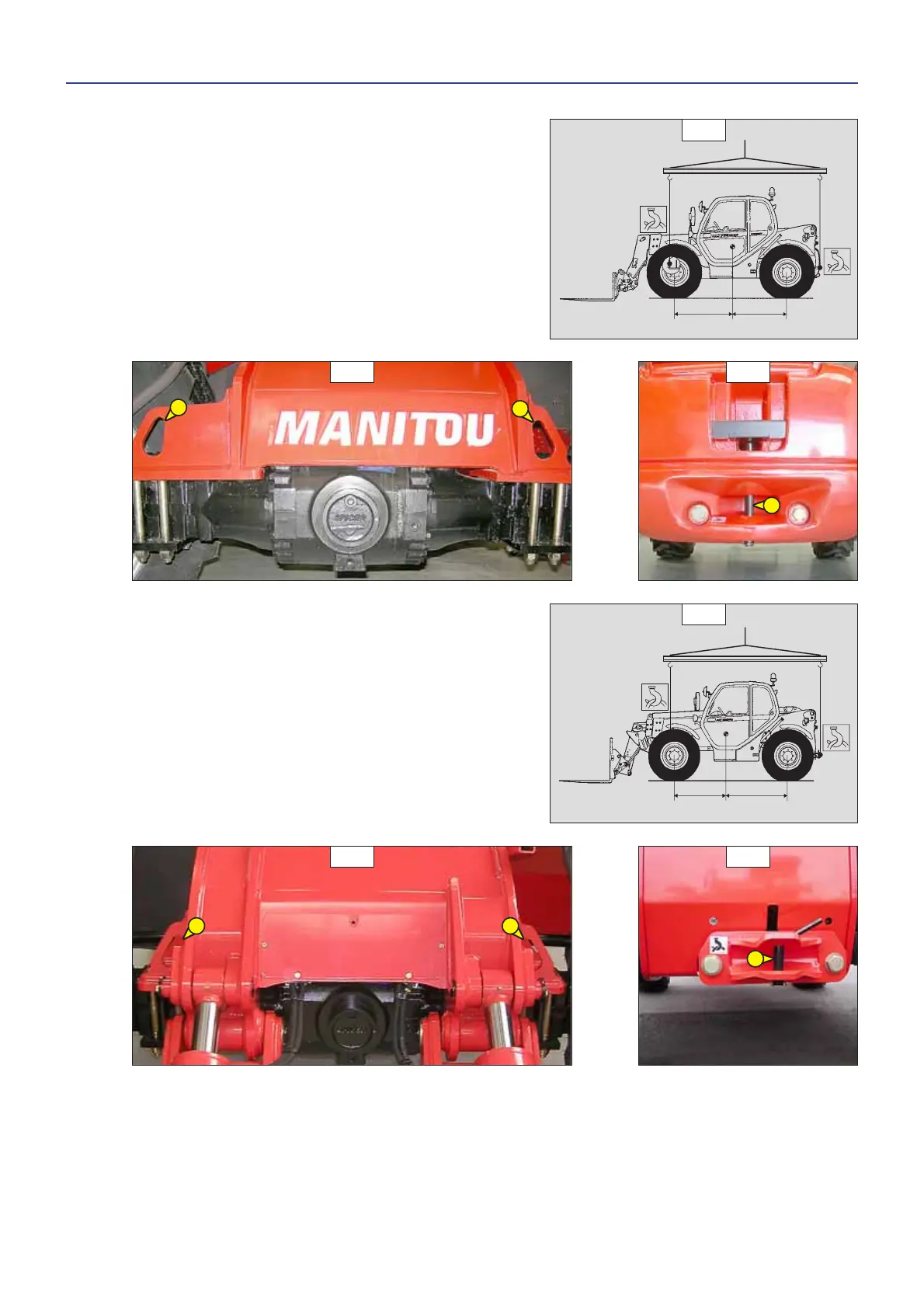

G5 - LIFT TRUCK
SLING
MT 732 Série E-E3
MT 932 Série E-E3
- Take into account the position of the lift truck centre of gravity for lifting (fig.
G5/1).
A = 1456 mm B = 1104 mm MT 732 Série E-E3
A = 1459 mm B = 1101 mm MT 932 Série E-E3
- Place the hooks in the fastening points provided (fig. G5/2 and G5/3).
MT 1030 S Turbo Série 5-E3
- Take into account the position of the lift truck centre of gravity for lifting (fig.
G5/1).
A = 1208 mm B = 1482 mm MT 1030 S Turbo Série 5-E3
- Place the hooks in the fastening points provided (fig. G5/2 and G5/3).
AB
G5/1
G5/2
G5/3
AB
G5/1
G5/2
G5/3
647083 EN (21/06/2011)
