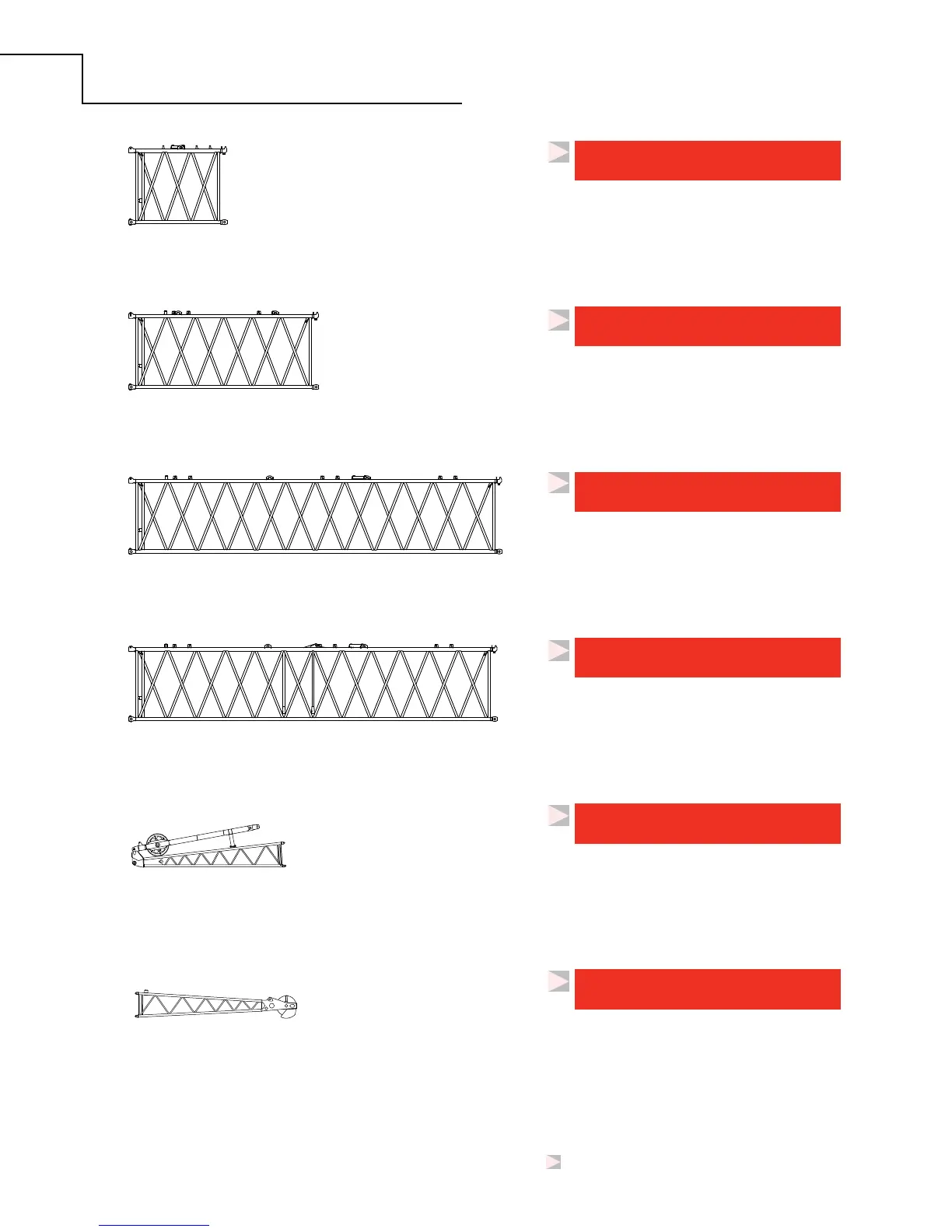

Outline dimensions
10
No. 76 Main Boom 3,0 m (9.8')
Insert & Straps x 1
Length 3,17 m 10' 5"
Width 2,54 m 8' 4"
Height 2,59 m 8' 6"
Weight 772 kg 1,700 lb
No. 76 Main Boom 6,0 m (19.7')
Insert & Straps x 1
Length 6,17 m 20' 3"
Width 2,54 m 8' 4"
Height 2,59 m 8' 6"
Weight 1 126 kg 2,700 lb
No. 76 Main Boom 12,0 m (39.4')
Insert & Straps x 1, 2, 3, 4
Length 12,17 m 39' 11"
Width 2,54 m 8' 4"
Height 2,59 m 8' 6"
Weight 2 134 kg 4,700 lb
No. 76 Main Boom 12,0 m (39.4') w/
Backstay Insert & Straps x 1
Length 12,17 m 39' 11"
Width 2,54 m 8' 4"
Height 2,59 m 8' 6"
Weight 2 179 kg 4,800 lb
No. 134 Jib Butt 4,6 m (15')
& Strut, Stop x 1
Length 4,67 m 15' 4"
Width 0,86 m 2' 10"
Height 1,29 m 4' 3"
Weight 635 kg 1,400 lb
No. 134 Jib Top 4,6 m (15')
& Pendants x 1
Length 4,93 m 16' 2"
Width 0,79 m 2' 7"
Height 0,79 m 2' 7"
Weight 553 kg 1,220 lb
