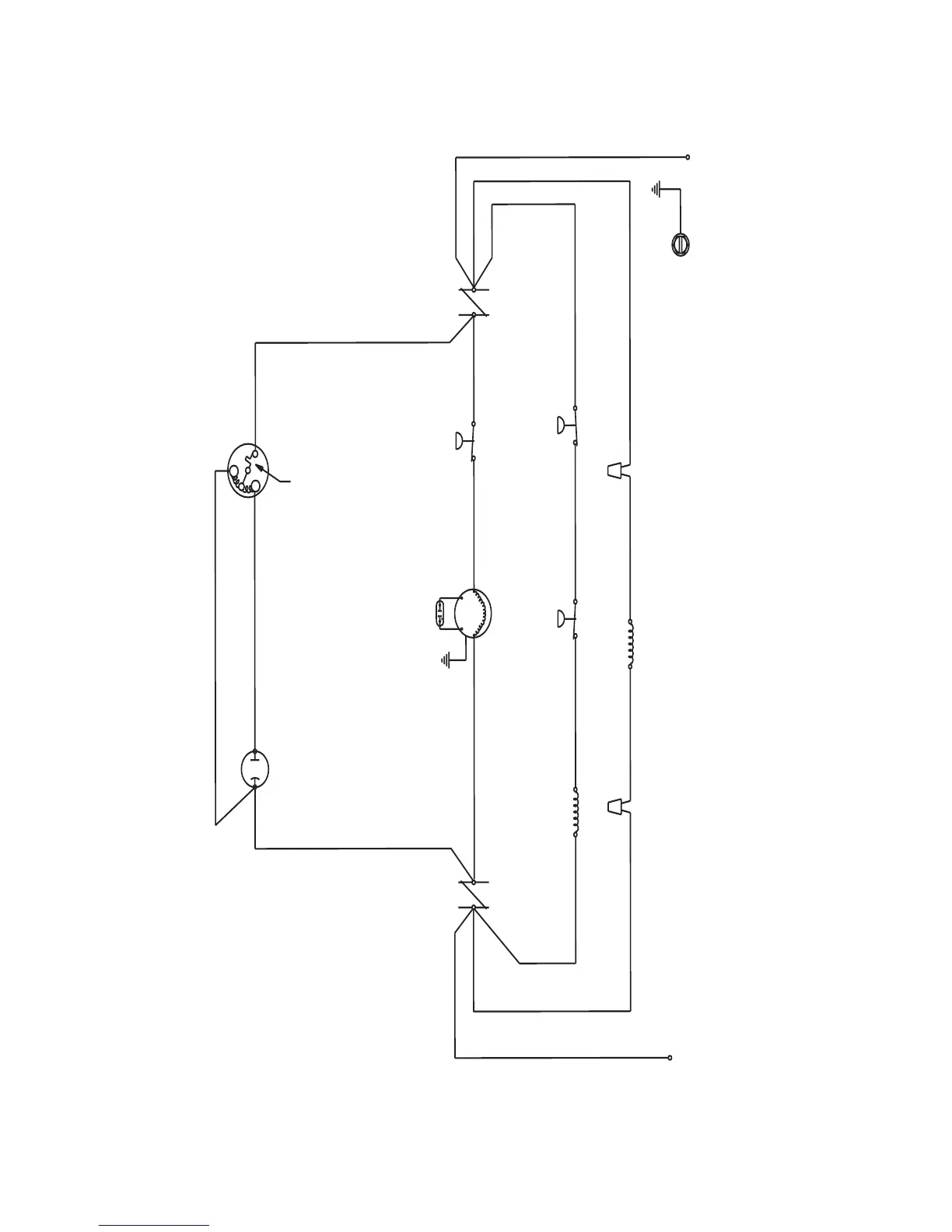

280 Part Number 80-1505-3 6/11
CVD2085 WITHOUT PTCR-
1 PHASE
L1
Ground
See Serial Plate for Voltage
Contactor
Coil
L2 (N)
(95)
(85)
(94)
(49)
(96)
(74)
(50)
(48)
(47)
Low Pressure
Switch
Contactor
Contacts
Fan Cycle Control
Fan Motor
Run Capacitor
Contactor
Contacts
Run Capacitor
R
C
S
R
Compressor
Overload
High Pressure
Cutout
R
COMPRESSOR CRANKCASE
HEATER
