Maintenance Section 4

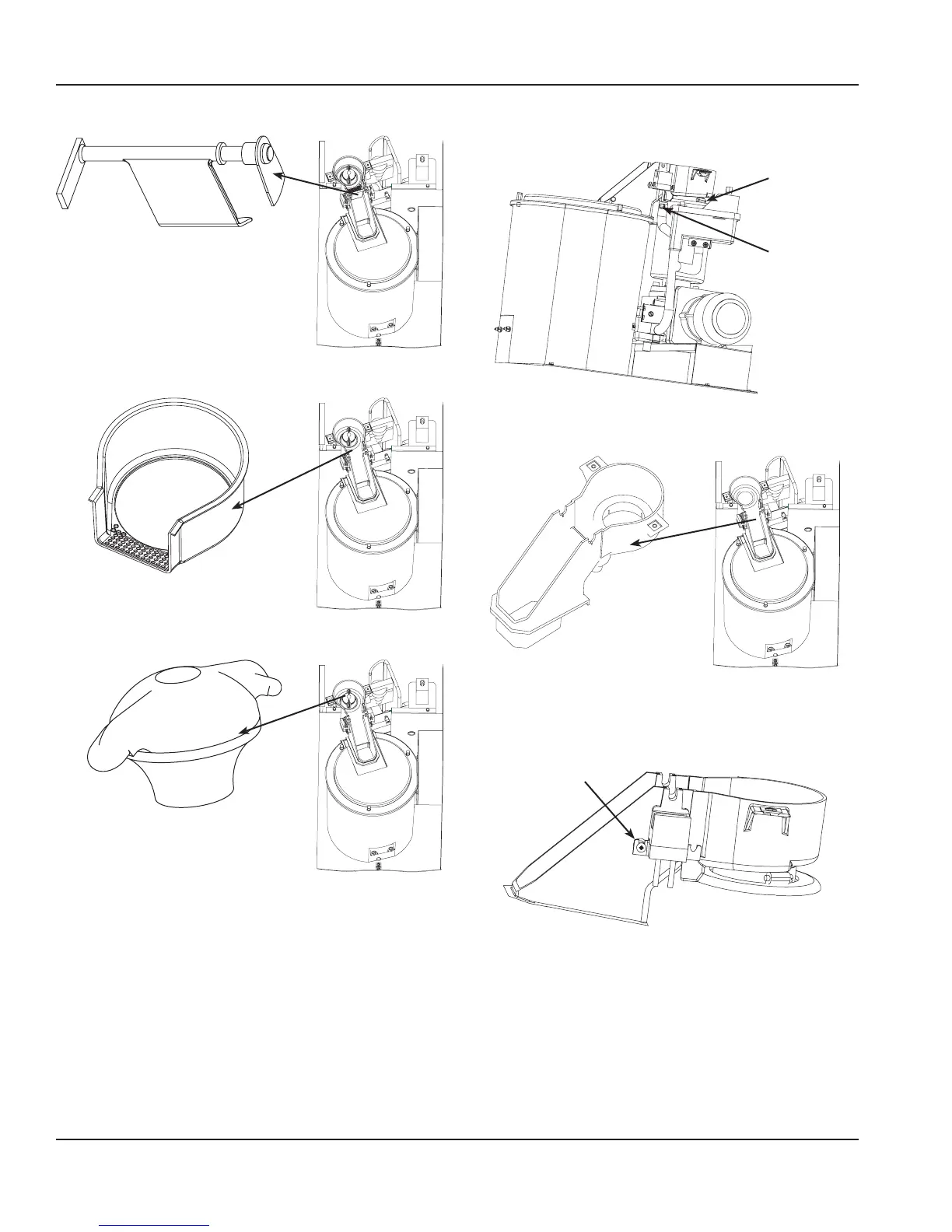

8. Lift out ice damper.
9. Lift out ice strainer ramp.
10. Turn ice wiper counterclockwise to remove.
11. Loosen ice chute hose clamp.
12. Disconnect ice chute drain.
Ice Chute
Drain
Ice Chute
Hose Clamp
13. Lift up on ice chute to remove. The ice chute must be
removed before the bin cover can be removed.
14. The ice chute can be cleaned in place. If complete
removal is desired, use a Phillips screwdriver to remove
the Hall Effect switch assembly from the ice chute.
Remove
Screw
To Next Page
