Part Number: 000015202 Rev 00 12/17 21
Section 4 Maintenance

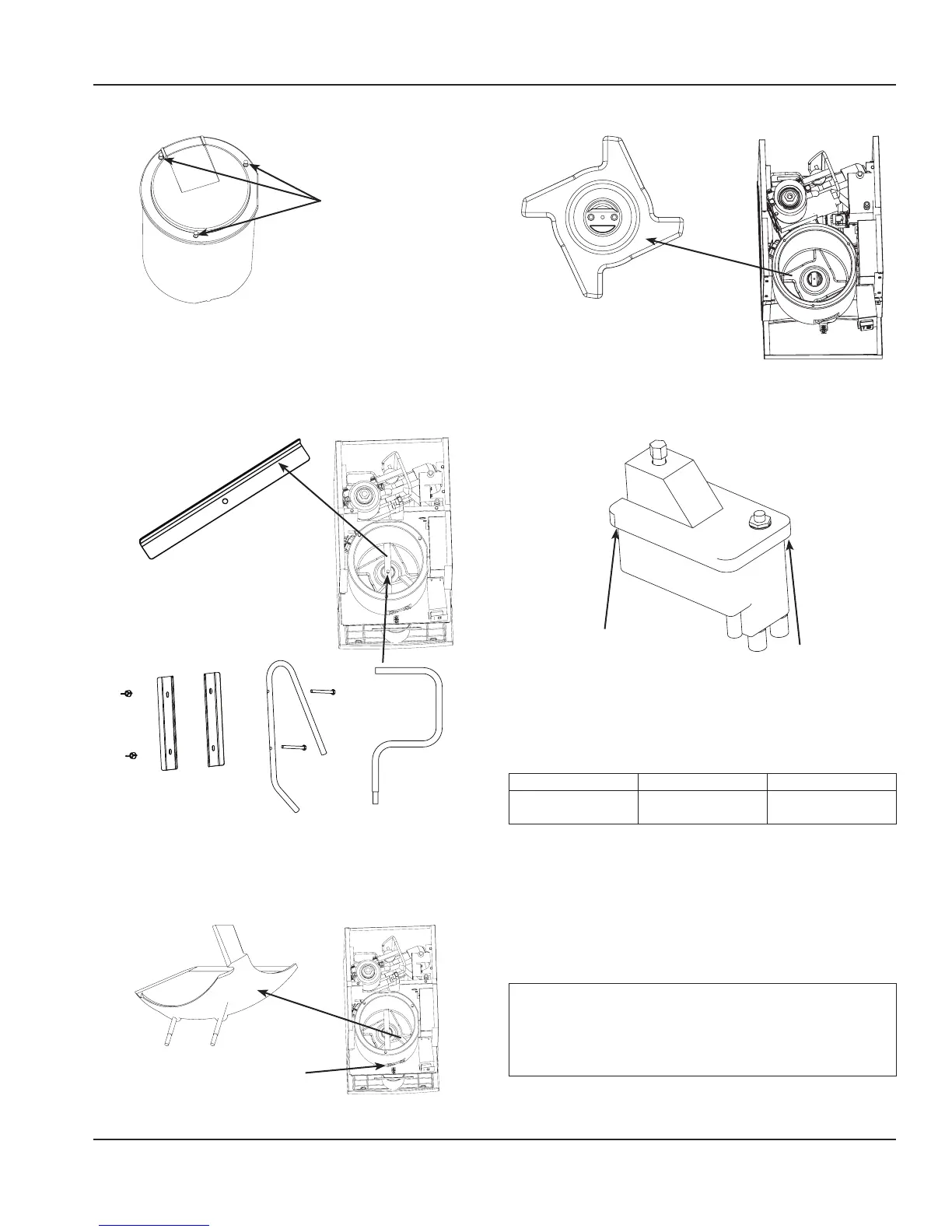

15. Remove three thumbscrews, then remove bin cover.
Remove Thumbscrews
16. Remove agitator bar and ice breaker on CNF202.
NOTE: Bar must be reassembled by inserting front edge into
the paddle wheel, then lowering the back edge (rounded
90 angle) to prevent water leakage into the compressor
compartment.
CNF201 - Remove Thumbscrew &
Agitator Bar
CNF202 - Remove Upright Agitator
& Agitator Bar, Then Ice Breaker
Thumbscrews, Bolts & Breaker Bar
17. Remove ice deflector.
A. Remove the two thumbscrews.
B. Lift the ice deflector out.
Remove
Wingnuts
18. Remove ice dispensing wheel by lifting straight out.
19. Remove the water reservoir cover.
A. Push up on cover to snap off.
20. Mix a solution of cleaner and warm water. Depending
upon the amount of mineral buildup, a larger quantity
of solution may be required. Use the ratio in the table
below to mix enough solution to thoroughly clean all
parts.
Solution Type Water Mixed With
Cleaner 1 gal. (4 l)
16 oz (500 ml)
cleaner
21. Use the cleaner/water mixture to clean all components.
The cleaner solution will foam when it contacts lime
scale and mineral deposits; once the foaming stops,
use a soft-bristle nylon brush, sponge or cloth (NOT a
wire brush) to carefully clean the parts. Soak parts for
5 minutes (15 - 20 minutes for heavily scaled parts).
Rinse all components with clean water.
,
Caution
Do not pour cleaner or sanitizer solutions into the bin.
The solution will leak out of the front of the bin and into
the compressor compartment.
To Next Page
