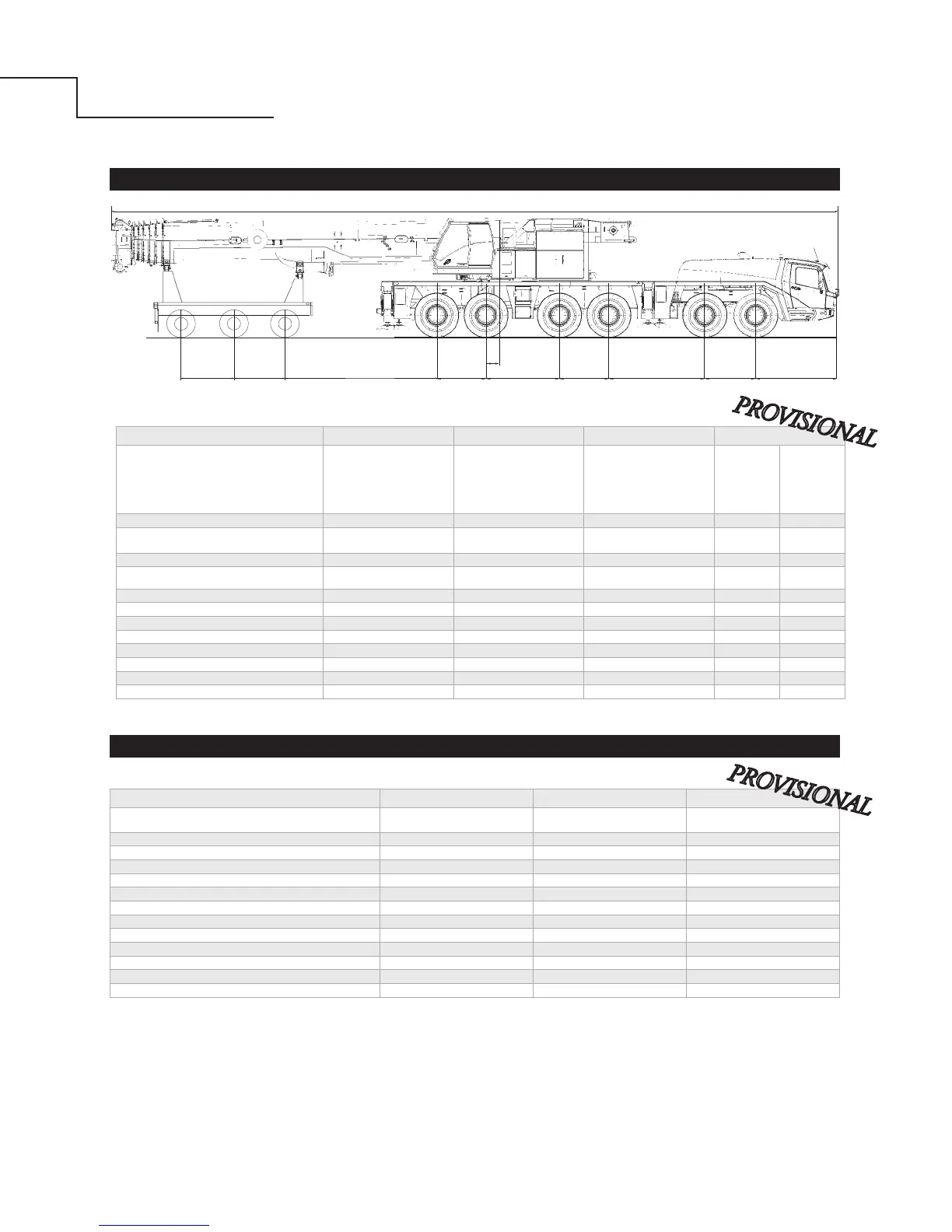

Manitowoc Grove GMK6300L Product Guide

1384 mm
(4.5')
1384 mm
(4.5')
5150 mm
(16.9')
1650 mm
(5.4')
2450 mm
(8.0')
1650 mm
(5.4')
3200 mm
(10.5')
1700 mm
(5.6')
1726 mm
(5.7')
24 282 mm (79.7')
8
Basic Weights  kg lb Axles  and  Axles    Total
Mercedes power, 16.00R25 tires, 12x6x12 drive/steer, retarder,
2nd oil cooler, outrigger pads, driver and tanks filled
22 769 (50,197) 48 740 (107,453) 71 509 (157,650)
Additions:
12x8x12 drive/steer - 147 (-324) 537 (1184) 390 (860)
Brackets for hydraulic swingaway 57 (126) 29 (64) 86 (190)
Hose reel + parts for hydraulic swingaway 211 (465) 159 (351) 370 (816)
12 m - 21 m (39 ft - 69 ft) hydraulic swingaway 1840 (4057) 167 (368) 2007 (4425)
Auxiliary hoist -1427 (-3146) 3263 (7194) 1836 (4048)
7000 kg (15,400 lb) base plate stowed on carrier 3390 (7474) 3270 (7209) 6660 (14,683)
Substitutions:
14.00R25 tires - 241 (-531) - 481 (-1060) - 722 (-1592)
20.5R25 tires 172 (379) 343 (756) 515 (1135)
Removals:
Front and rear outrigger floats - 1 (-2) - 281 (-619) - 282 (-622)
Weights
Trailing boom - PROVISIONAL
Basic Weights  kg lb Axles  and  Axles    Three dolly axle Total
GMK6300L Mercedes power with 20.5R25
tires, 12x8x12 drive/steer, retarder,
12 m - 21 m (39 ft - 69 ft) hydraulic lung
swingaway, 2nd oil cooler, outrigger pads,
auxiliary hoist, driver and tanks filled, 3 axle
boom dolly (4536 kg [10,000 lb]
14 334 (31,601) 41 171 (90,767) 25 851 (56,992) 81 356 (179,359)
Additions:
7000 kg (15,400 lb) base section stowed on
carrier
3390 (7474) 3270 (7209) 0 (0) 6660 (14,683)
Removals:
Brackets for hydraulic swingaway including
hose reel
- 41 (-90) - 112 (-247) - 303 (-668) - 456 (-1005)
12 m - 21 m (39 ft - 69 ft) hydraulic swingaway - 73 (-161) - 196 (-432) -1738 (-3832) -2007 (-4425)
Front outriggers -1516 (-3342) - 884 (-1949) 0 (0) -2400 (-5291)
Rear outriggers 1686 (3717) -4386 (-9669) 0 (0) -2700 (-5952)
Front and rear outrigger floats - 1 (-2) - 281 (-619) 0 (0) - 282 (-622)
Substitutions:
12x6x12 drive/steer 147 (324) - 537 (-1184) 0 (0) - 390 (-860)
14.00R25 tires - 412 (-908) - 825 (-1819) 0 (0) -1237 (-2727)
16.00R25 tires - 172 (-379) - 343 (-756) 0 (0) - 515 (-1135)
Boom over front -PROVISIONAL
