Section 2 Installation Instructions
Part Number 000001114 2-13
WATER SUPPLY AND DRAIN LINE SIZING/CONNECTIONS

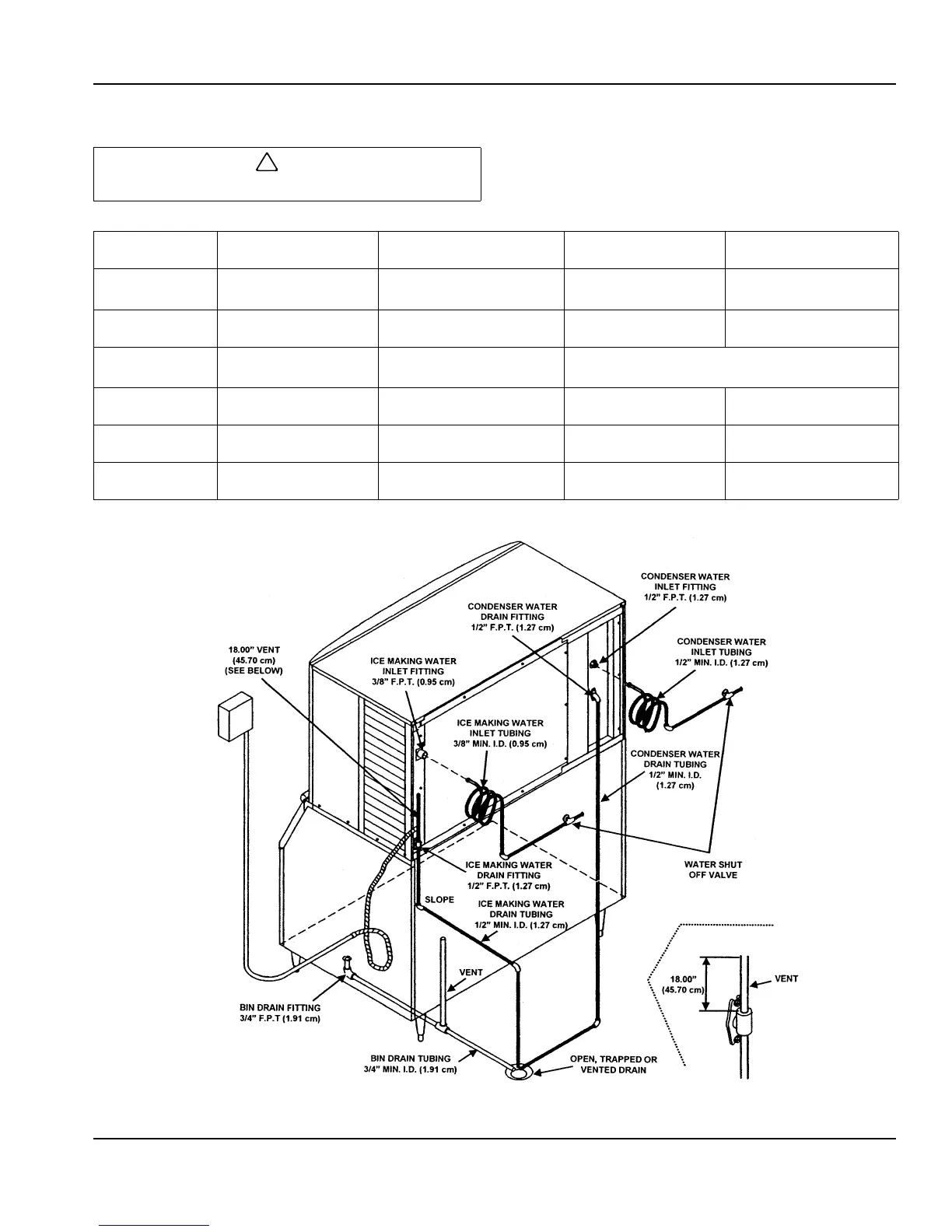

Typical Water Supply Drain Installation
!
Caution
Plumbing must conform to state and local codes.
Location Water Temperature Water Pressure Ice Machine Fitting
Tubing Size Up to Ice
Machine Fitting
Ice Making
Water Inlet
33°F (0.6°C) Min.
90°F (32.2°C) Max.
20 psi (137.9 kPA) Min.
80 psi (551.5 kPA) Max.
3/8" Female
Pipe Thread
3/8" (9.5 mm) minimum
inside diameter
Ice Making
Water Drain
--- ---
1/2" Female
Pipe Thread
1/2" (12.7 mm) minimum
inside diameter
Condenser
Water Inlet
33°F (0.6°C) Min.
90°F (32.2°C) Max.
20 psi (137.9 kPA) Min.
150 psi (1034.2 kPA) Max.
Q1300/Q1600/Q1800 - 1/2" Female Pipe Thread
All Others - 3/8" Female Pipe Thread
Condenser
Water Drain
--- ---
1/2" Female
Pipe Thread
1/2" (12.7 mm) minimum
inside diameter
Bin Drain --- ---
3/4" Female
Pipe Thread
3/4" (19.1 mm) minimum
inside diameter
Large Capacity
Bin Drain
--- ---
1” Female Pipe Thread
1” (25.4 mm) min. inside
diameter
SV1626
