Manitowoc QM20

222 Part Number 80-01111-9 7/10
SM50
THERM-
ISTOR
CONTROL BOARD
BIN
LIGHT
COMPRESSOR
WATER INLET
HOT GAS
SOLENOID
START
RELAY
START
CAPACITOR
BIN
THERMO-
STAT
L1
FUSE (7A)
TRANS.
CAUTION: DISCONNECT POWER BEFORE
WORKING ON ELECTRICAL CIRCUITRY.

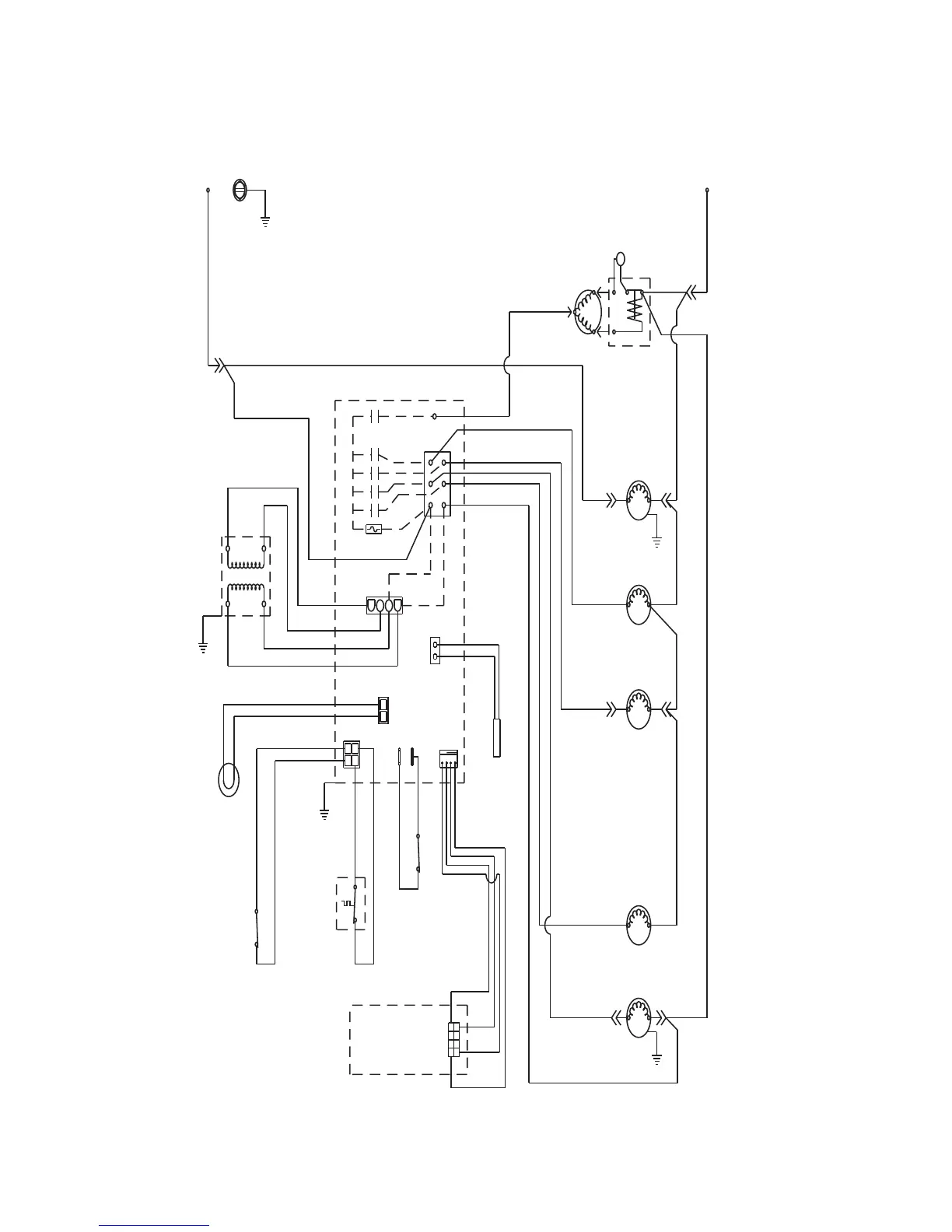

NOTE: DIAGRAM SHOWN DURING THE FREEZE CYCLE.
FAN MOTOR
DISPLAY
BOARD
DRAIN
PUMP
SWITCH
WATER PUMP
DRAIN
PUMP
L2
S
C
R
(33)
(47)
(48)
(43)
(44)
(45)
(41)
(42)
(46)
(21)
(31)
(22)
(28)
(27)
(29)
(26)
(25)
(24)
(23)
(32)
(20)
BIN
LIGHT
SWITCH
