Step 6 Remove parts for cleaning.
A. Remove Two Thumbscrews and Water
Pump Cover (When Used).
B. Remove the Vinyl Hose Connecting the
Water Pump and Water Distribution Tube
C. Remove Water Pump
• Disconnect the water pump power cord
• Loosen the screws securing the pump-
mounting bracket to the bulkhead
• Lift the pump and bracket assembly off
the mounting screws.

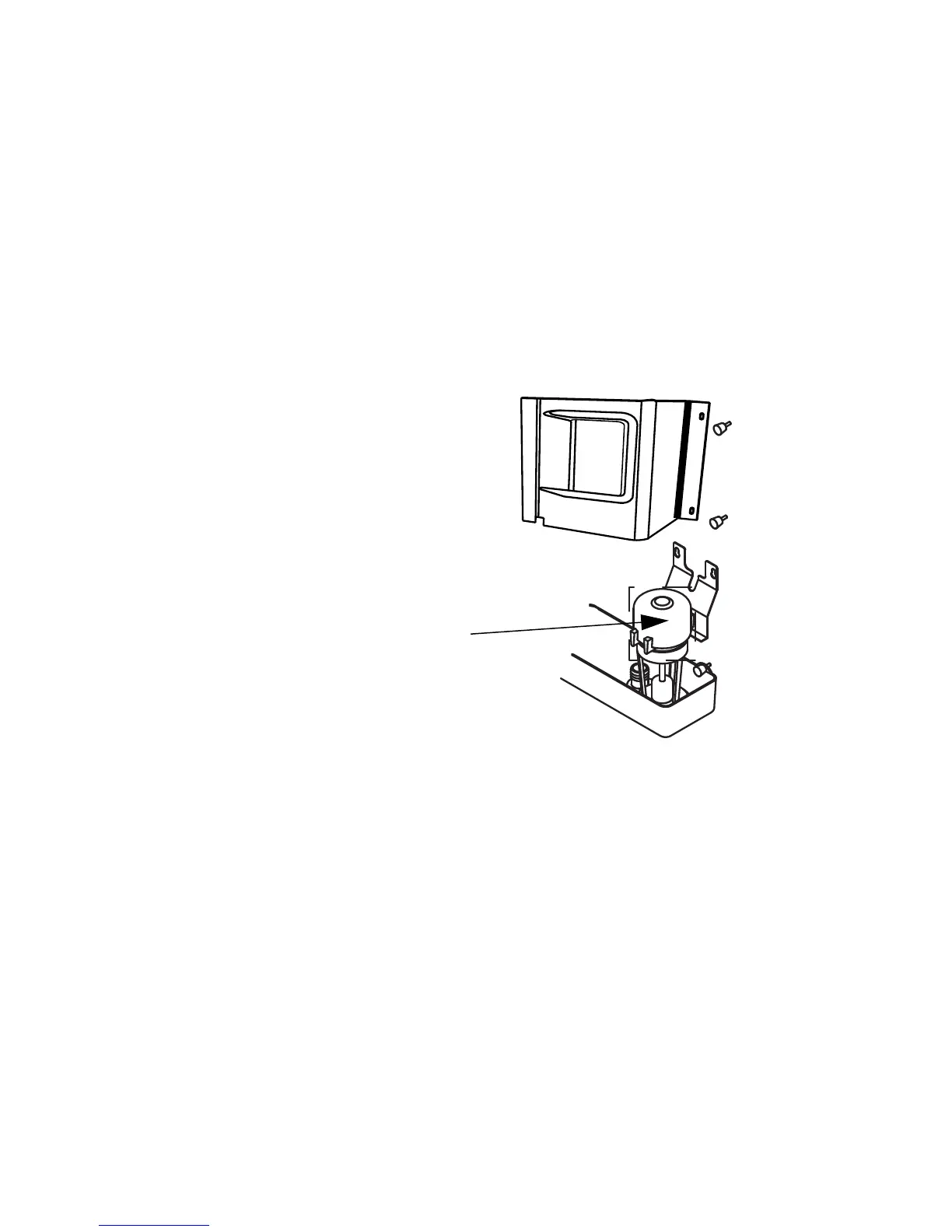

Water Pump Removal
DO NOT SOAK
WATER PUMP MOTOR IN
CLEANER OR SANITIZER
SOLUTIONS
WHEN USED- REMOVE
THUMBSCREWS AND
WATER PUMP COVER
