Manitowoc QM20 User Manual

Part Number 80-01111-9 7/10 51
Q130 Models
Q130 Water Distribution Tube Removal
• Loosen the two thumbscrews, which secure
the distribution tube.
• Lift the distribution tube up off the
thumbscrews.
Disassembly
• Twist the barbed end until the tab lines up with
the keyway.
• Pull the inner tube end outward.

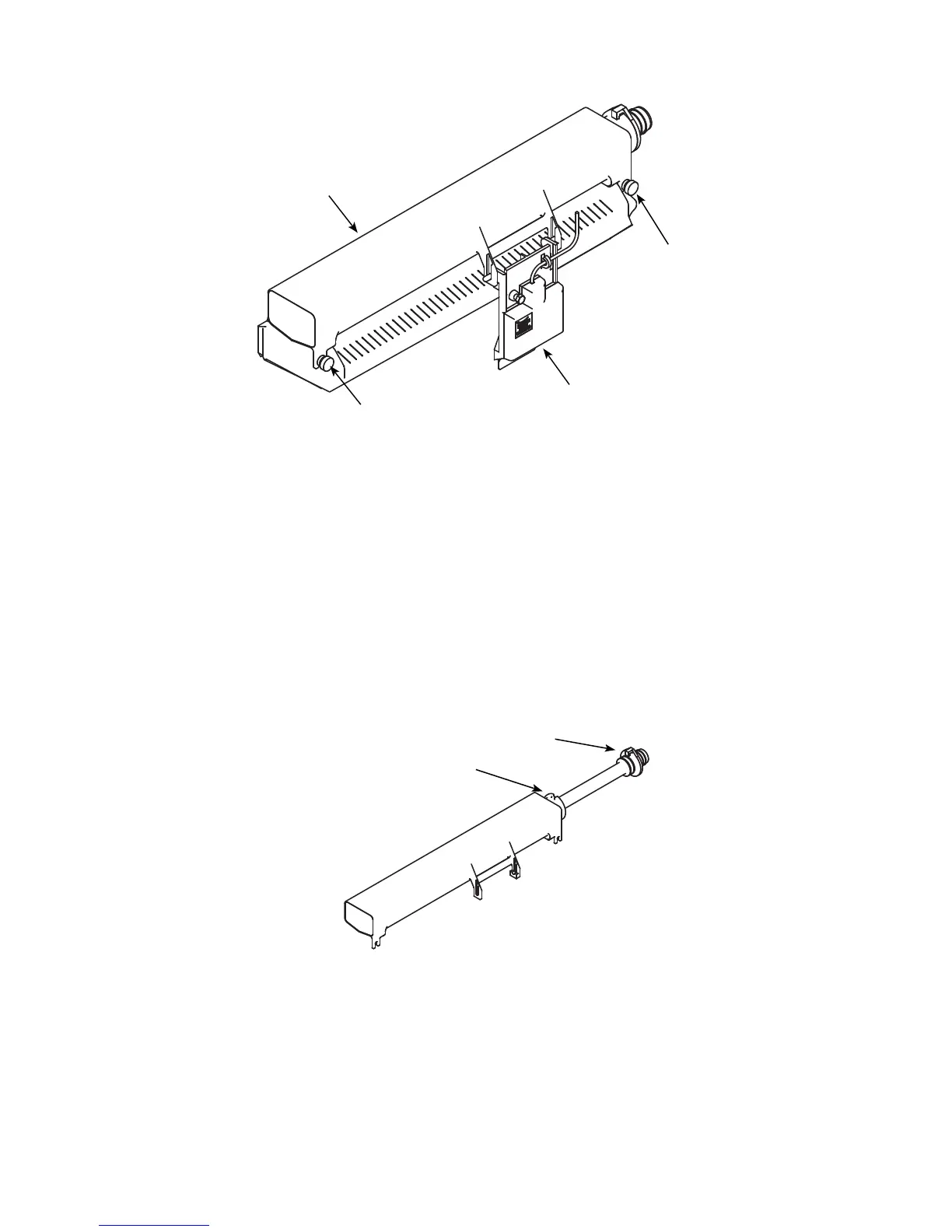

Q130 Water Distribution Tube Disassembly
SV1731C
THUMBSCREW
REMOVE ICE
THICKNESS PROBE
THUMBSCREW
DISTRIBUTION
TUBE
SV1741
KEYWAY
TAB
