General Information Section 1
2-2
Q Series
Metric Measurements

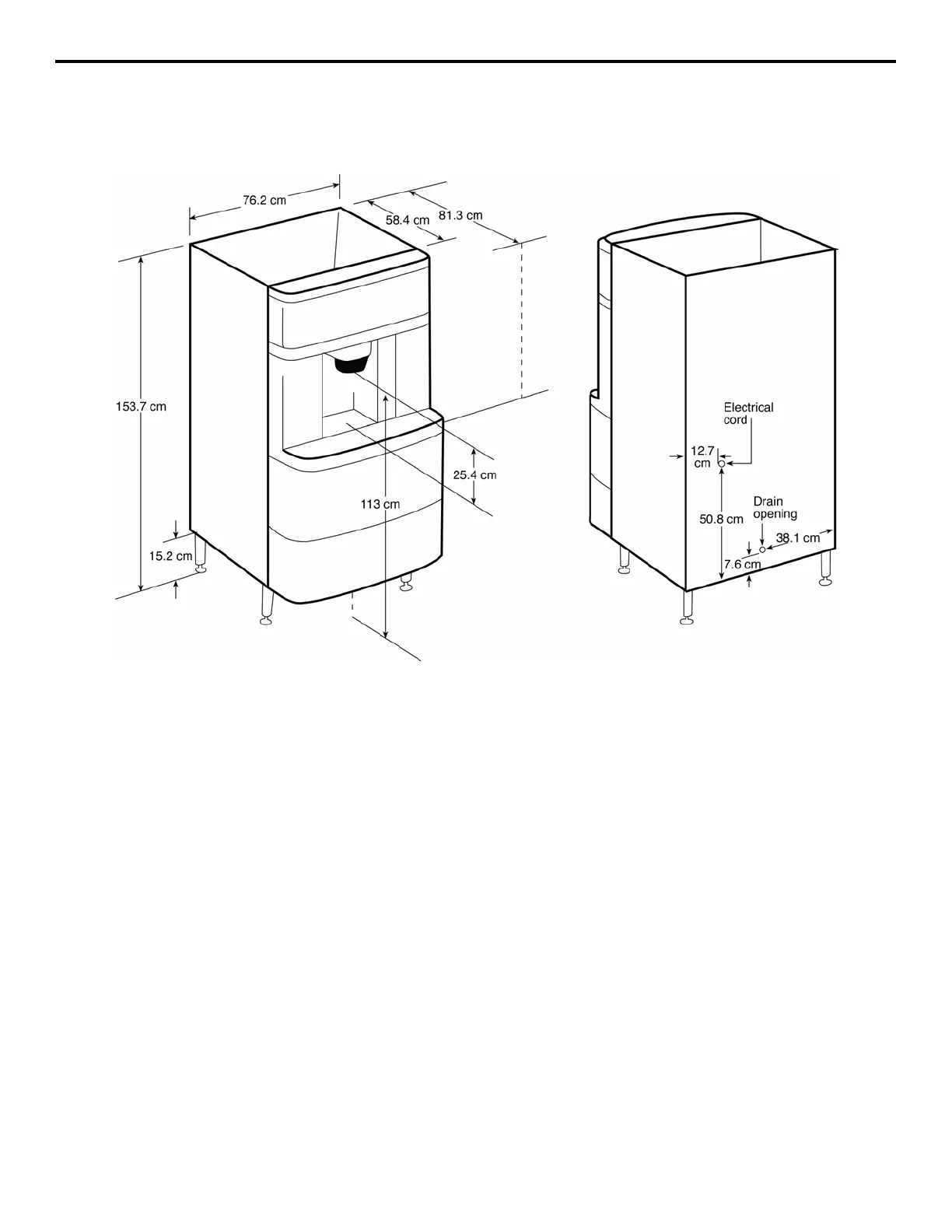

Dimensions:
Width 76.2 cm
Depth – overall 81.3 cm
Height – with 6 inch legs 153.7 cm
Dispense Height 25.4 cm
Bin Top Size – width 76.2 cm
- depth 58.4 cm
Electrical Entrance: Cord exits machine from the
back of the machine.
Drain to Bottom of Dispenser: 7.6 cm
Drain to Right Side: 38.1 cm
Drain Fitting Size: ½” N.P.T.
Ice Storage Capacity: 108.9 kg actual
A.R.I. 81.6 kg.
Electric Voltage – Cycle – Amperage:
120 Volts – 60 Hz. – 1.6 amp (U.S. Standard)
(Eight foot cord with plug is included with the
U.S. Standard unit)
120 Volts – 50 / 60 Hz. / 1 Ph 1.6 amp
220 Volts – 50 / 60 Hz. / 1 Ph 1.5 amp
230 Volts 60 Hz. / 1 Ph 1.5 amp
240 Volts 50 Hz. / 1 Ph 1.5 amp
Motor Horsepower: 1/7 HP
Fuse Size: 15 amp maximum
Ship Weight: 84.8 kg
Operating Temperature Range:
2°C minimum - 43°C maximum
Follow N.E.C. (National Electrical Code)
And any local electrical codes.
