4-6
Maintenance Section 4

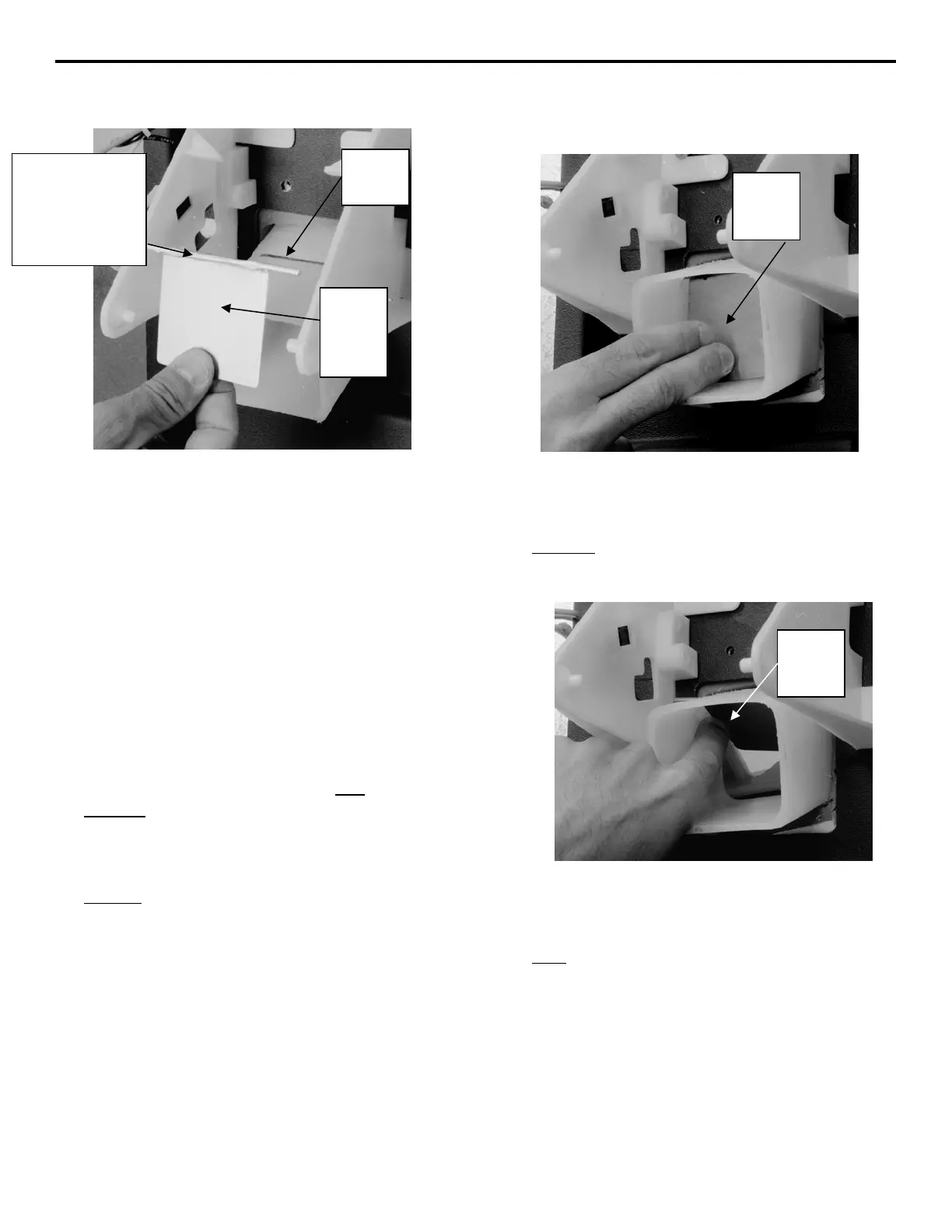

Re-Installing the Paddle Wheel Guard
1 When re-assembling the rocking chute/door, the
paddle wheel guard is placed in the slot in the
ice chute.
Notice that a cylinder hinge is welded to the top
front side of the paddle wheel guard, as shown
in the picture above.
When the paddle wheel guard is placed in the
slot in the ice chute, the cylinder hinge on the
front of the paddle wheel guard faces forward,
as shown in the picture above.
When the paddle wheel guard is correctly
installed, the paddle wheel guard will swing
outward
toward the front of the chute, allowing
ice to flow out of the chute.
If incorrectly installed, the paddle wheel guard
will not swing outward and ice delivery is
blocked.
Correct Installation
2 Correct Installation:
If you press your finger forward against the
paddle wheel guard, the paddle wheel guard
does not swing back open.
Incorrect Installation
3 Incorrect Installation:
If you press your finger forward against the
paddle wheel guard, the paddle wheel guard
does
swing back open.
Cylinder hinge
Welded to
Front of
Paddle wheel
Guard
Slot in
Chute
Paddle
wheel
guard
(front)
Paddle
wheel
guard
Paddle
wheel
guard
