Disassembling the Rocking Chute/Door (continued)

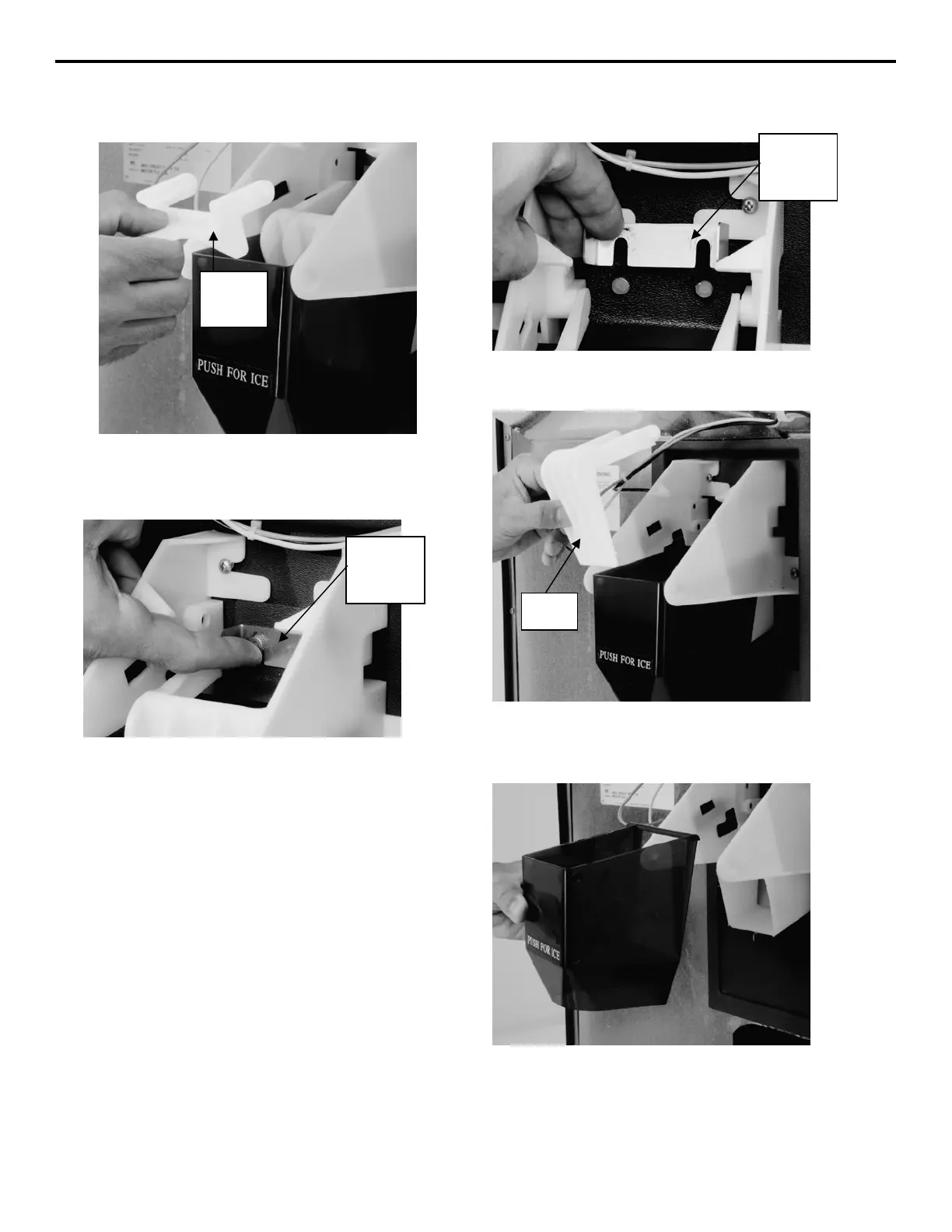

3 Remove door lock.
4 Loosen the two knurled screws of the metal
support bracket.
5 Remove metal support bracket.
6 Remove door.
7 Remove ice chute.
Door
Lock
Door
Metal
Support
Bracket
Metal
Support
Bracket
