4-8
Maintenance
Section 4
Disassembling the Dispenser Parts
For Bin Cleaning (continued)
5

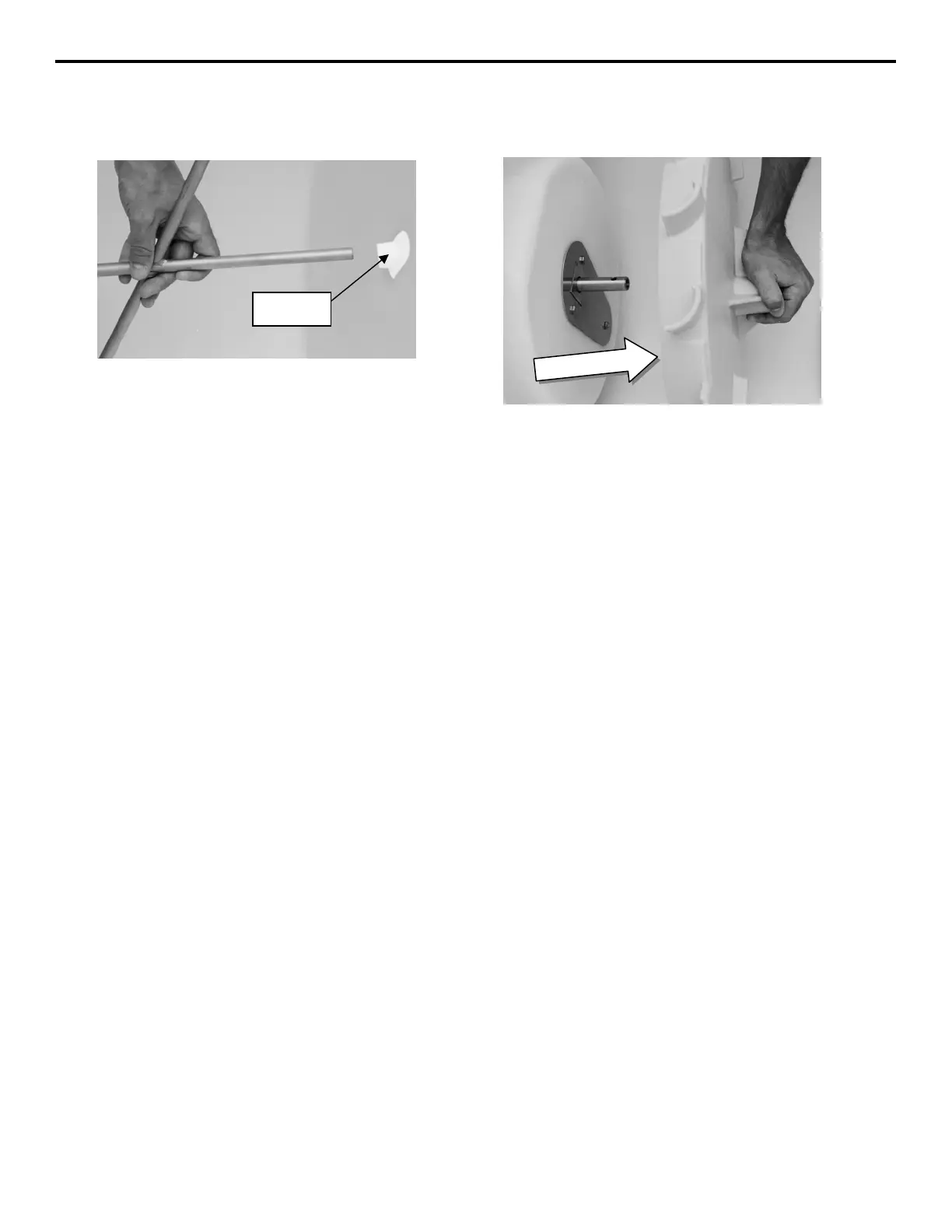

Move the agitator to one side and slide the
agitator forward until the rear of the agitator
shaft is clear of the bushing.
6
Remove the agitator from the bin area.
7
Slide the paddle wheel from its shaft.
Bushing
21
23
