Manitowoc RFS1200 User Manual

Part Number 000007661 11/16 109
Power Supplied
to Ice Machine?
Toggle Switch In
ON Position?
Move Switch To ON Position
Restore Power, Reset BreakerNO
NO
YES

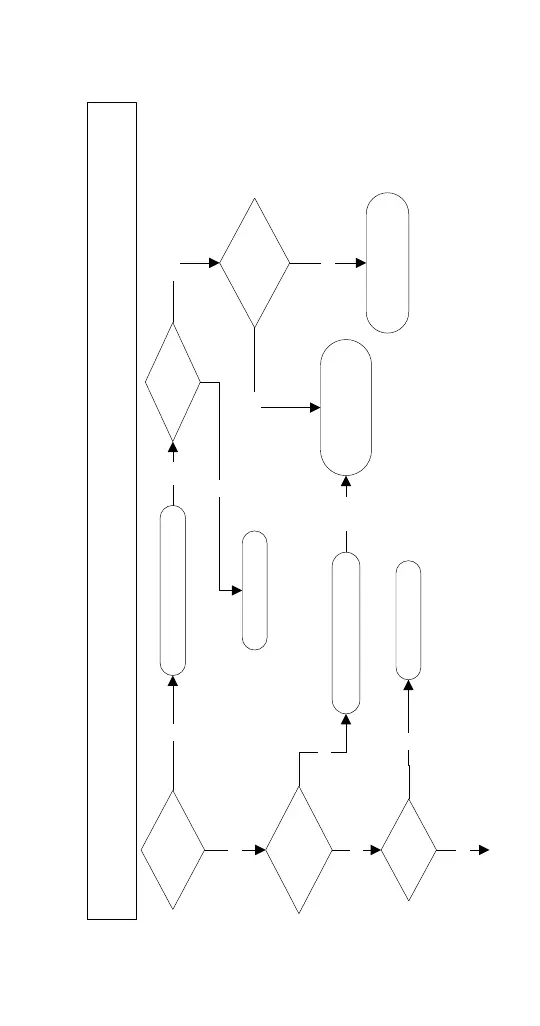

Electrical Flowchart - RF2300C/RFC2300C QuietQube
Switch
Illuminated?
NO
YES
Replace Switch
Immediately
Trips?
YES
YES
Toggle Switch In
Off Position?
Isolate And Ohm Each
Component - Then Each
Wire If Required
NO
TRIPS
YES
Isolate And Ohm Switch
Check Wiring From Panel
YES
NO
Test Run

Manitowoc RFS1200 Specifications

General

Brand	Manitowoc
Model	RFS1200
Category	Ice Maker
Language	English
