Manitowoc RFS1200

Part Number 000007661 11/16 35

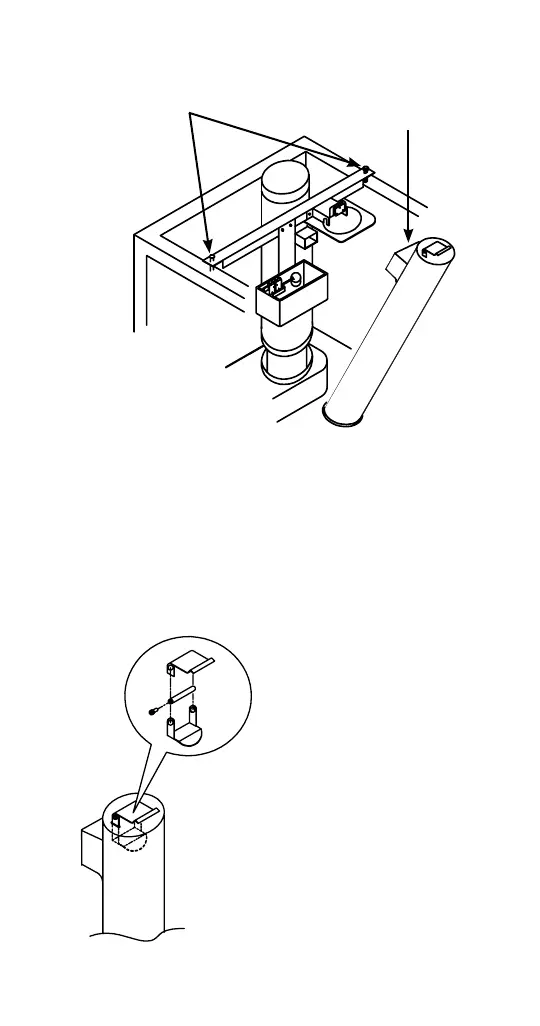

LOOSEN SUPPORT
BOLTS
TIP TOP OF ICE
CHUTE BACK AND
LIFT TO REMOVE
ICE CHUTE SWITCH ACTUATOR REMOVAL
RFS0300/RF0650/RF1200/RFS1200/RF2300/RFS2300
1. Pull to remove nylon end cap.
2. Slide pin to remove.
3. Remove both sections of the pressure switch
bracket.
INCORRECT REASSEMBLY CAN
RESULT IN AN ICE MACHINE
THAT WILL NOT RUN
