Part Number 000007661 11/16 95
Power Supplied
to Ice Machine?
Toggle Switch In
ON Position?
Move Switch To ON Position
Restore Power, Reset BreakerNO
NO
YES

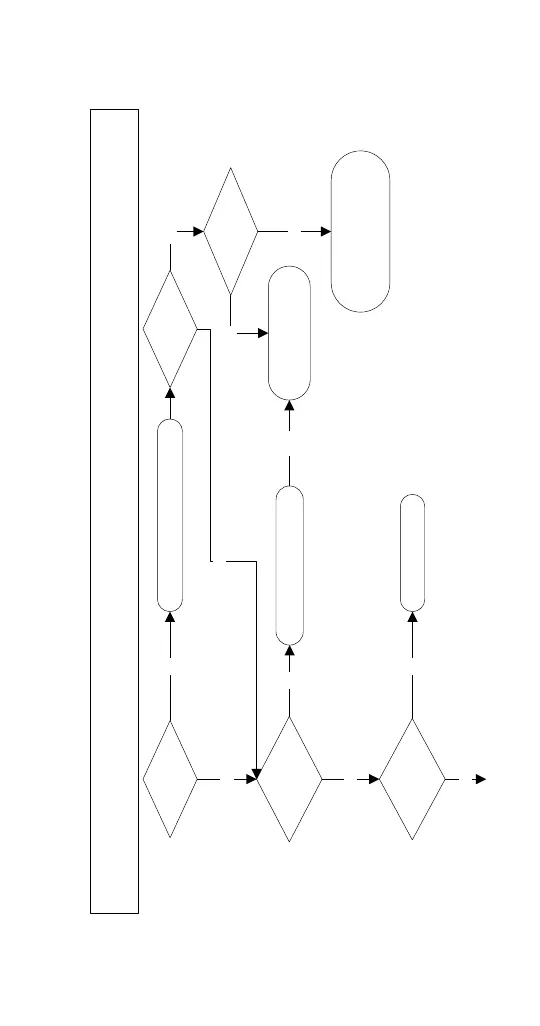

Electrical Flowchart – RF1200R/RFS1200R
Switch
Illuminated?
NO
YES
Replace Switch
Immediately
Trips?
Yes
Ohm Toggle Switch, Time
Delays, Gear Motors, Water
Inlet Valve
Yes
No
Toggle Switch In
Off Position?
Isolate And Ohm Each
Component - Then Each
Wire If Required
Yes
No
Trips
To Next Page
