Remove all Panels

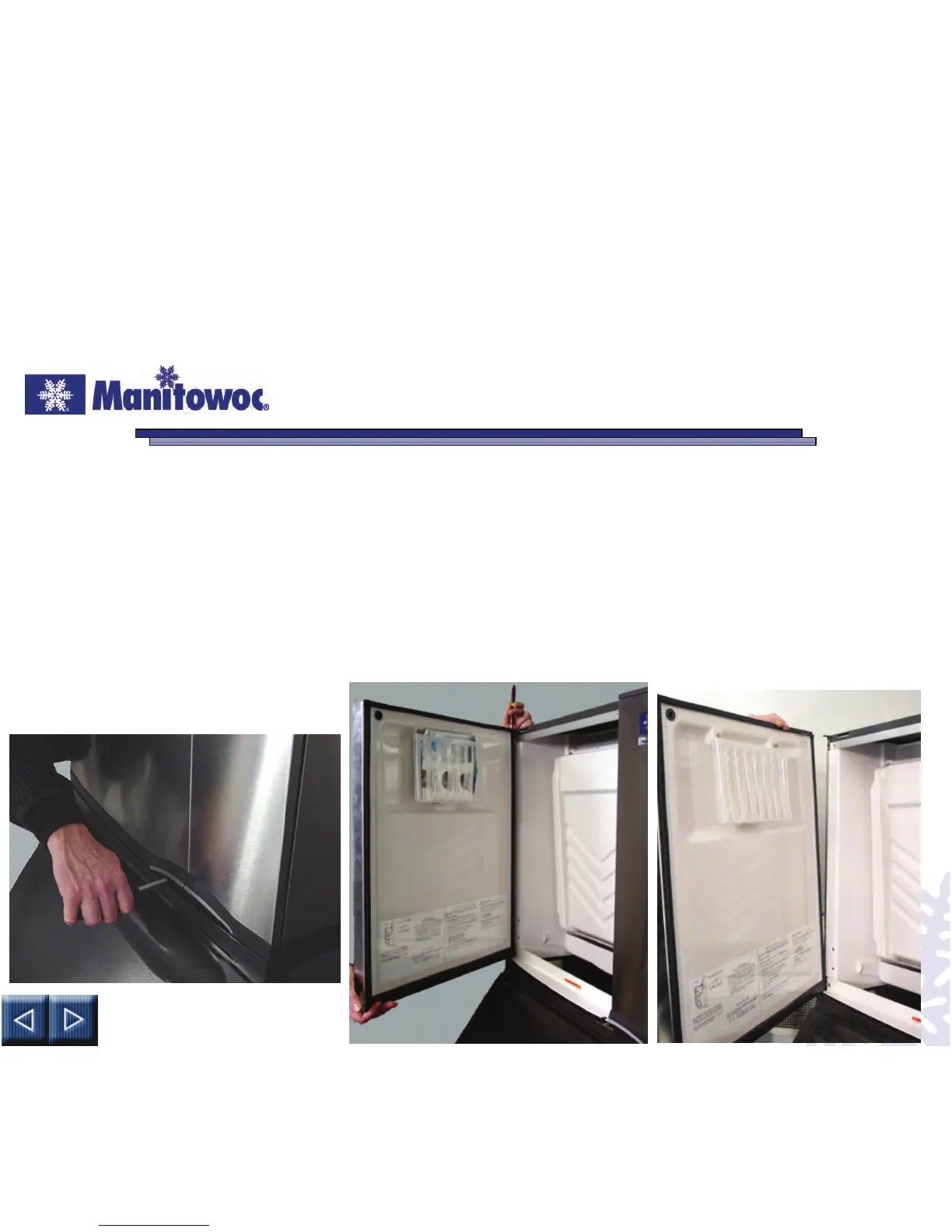

Single Evaporator - Hinged Front Door Removal
³ Loosen Screws on the left and right front panels
³ Open the left front door 45 degrees and support with hand
³ Depress the top pin to disengage door, tilt forward
³ Lift off of bottom pin
³ The right front panel lifts up to disengage
³ Remove the top cover and the remaining panels
