Manitowoc S model

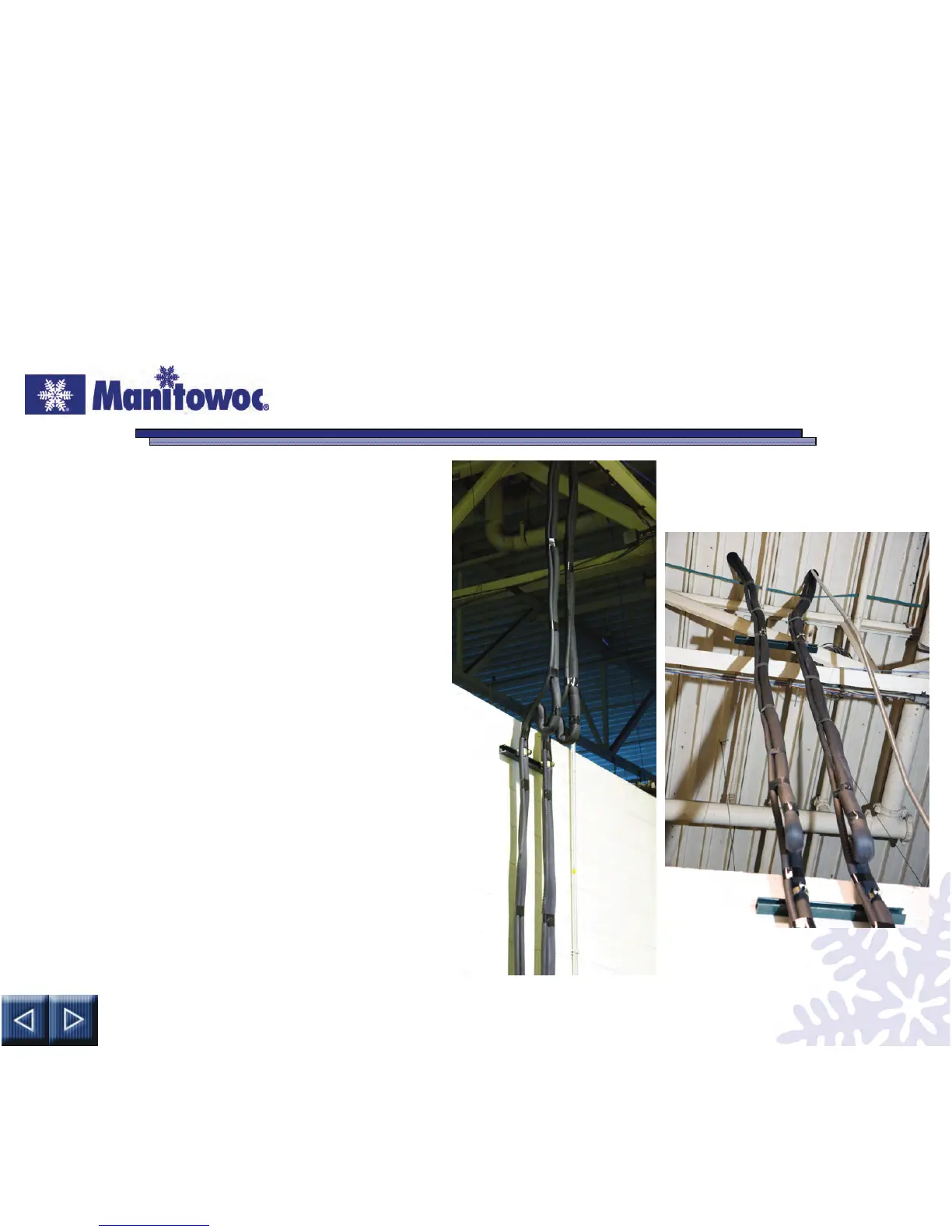

Suction Line Oil Traps
0 to 20 feet (0 to 6.1 m) Rise:
The ice machine head section has
one oil trap built in which allows
for a maximum condenser rise of
20 feet (6.1 m) without additional
traps in the suction line.
21 to 35 feet (6.4 to 10.7 m) Rise:
The suction line requires an
additional Oil Trap (“S” type) to be
installed. Install the trap as close
as possible to midpoint between
the ice machine head section and
CVD condensing unit.
