Installation Instructions Section 2

2-6 Part Number 80-1620-3

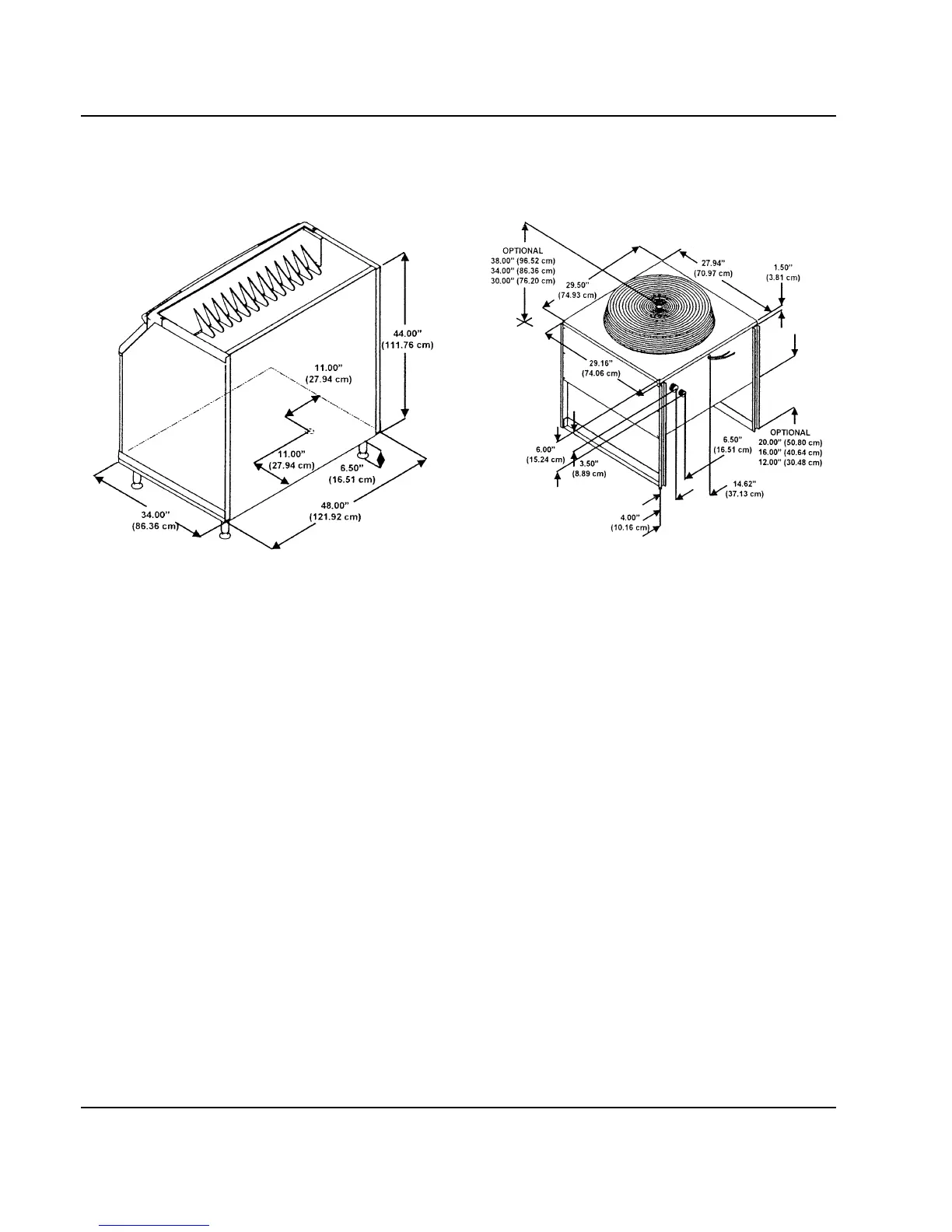

Ice Storage Bin Dimensions

48 INCH (130 CM) ICE STORAGE BINS

Remote Condenser Dimensions

JC0495/JC0895/JC1395

SV1297

B970

SV1297

Default Chapter2
- Safety Notices2
- Table of Contents5
Section 19
General Information9
Model Numbers9
How to Read a Model Number9
Ice Cube Sizes9
Accessories10
- Bin Caster10
- Ice Bagger10
- Guardian Sachet Packets10
- Arctic Pure Water Filter System10
- Manitowoc Cleaner and Sanitizer10
- Aucs® Automatic Cleaning System10
- Dispenser10
Model/Serial Number Location11
Owner Warranty Registration Card12
- General12
Warranty Coverage12
- Parts12
- Labor12
- Exclusions12
- Authorized Warranty Service12
Section 213
Installation Instructions13
General13
Ice Machine Dimensions13
- S320/S420 Air and Water-Cooled Ice Machines13
- S600 Air and Water-Cooled Ice Machines14
- S600 Remote Ice Machines14
- S300/S450/S500/S850/S1000/S1200 Air and Water-Cooled Ice Machines15
- S500/S850/S1000 Remote Ice Machines16
Ice Storage bin Dimensions16
- 30 Inch (76 CM) Ice Storage Bins16
- 22 Inch (56 CM) Ice Storage Bins16
- Inch (130 CM) Ice Storage Bins18
Remote Condenser Dimensions18
- Jc0495/Jc0895/Jc139518
Location of Ice Machine19
Ice Machine Heat of Rejection19
Removing Drain Plug and Leveling the Ice Storage bin20
Air-Cooled Baffle20
Electrical Service21
- General21
- Voltage21
- Minimum Circuit Ampacity21
- Electrical Requirements21
- Maximum Breaker Size & Minimum Circuit Amperage Chart22
Self-Contained Electrical Wiring Connections23
- Self Contained Ice Machine 115/1/60 or 208-230/1/6023
- Self Contained Ice Machine 208-230/3/6023
- Self Contained Ice Machine 230/1/5023
- 115/1/60 or 208-230/1/6023
Remote Electrical Wiring Connections24
- Remote Ice Machine with Single Circuit Model Condenser 230/1/5024
- Or 380-415/3/5024
Water Supply and Drain Requirements25
- Water Supply25
- Water Inlet Lines25
- Drain Connections25
Cooling Tower Applications (Water-Cooled Models)25
- Water Supply and Drain Line Sizing/Connections26
Remote Condenser/Line Set Installation27
- Remote Ice Machines Refrigerant Charge27
- Guidelines for Routing Line Sets28
- Calculating Remote Condenser Installation Distances29
- Lengthening or Reducing Line Set Lengths30
- Connecting a Line Set30
- Remote Receiver Service Valve30
Remote Ice Machine Usage with Non-Manitowoc Multi-Circuit Condensers31
- Warranty31
- Head Pressure Control Valve31
- Fan Motor31
- Internal Condenser Volume31
- Condenser DT31
- Refrigerant Charge31
- Quick Connect Fittings31
- Non-Manitowoc Multi-Circuit Condenser Sizing Chart32
Installation Check List33
Additional Checks for Remote Models33
Before Starting the Ice Machine34
- Aucs Automatic Cleaning System34
Section 335
Ice Machine Operation35
Component Identification35
Sequence of Operation36
- Initial Start-Up or Start-Up after Automatic Shut-Off36
- Freeze Sequence36
- Harvest Sequence37
- Automatic Shut-Off37
- Safety Timers37
- Warm Water Rinse Cycle37
Operational Checks38
- General38
- Water Level38
- Ice Thickness Check38
- Harvest Sequence Water Purge39
General41
Ice Machine Inspection41
Exterior Cleaning41
Cleaning the Condenser41
Water-Cooled Condenser and Water Regulating Valve42
Alphasan42
Guardian43
- Guardian Sachet Replacement Frequency43
- Sachet Installation/Replacement Procedure43
- Clean up Procedure for Damaged Sachet Packet43
Interior Cleaning and Sanitizing44
- General44
- Cleaning Procedure44
- Sanitizing Procedure45
- Removal of Parts for Cleaning/Sanitizing46
Removing the Front Panels52
Removal from Service/Winterization53
- General53
- Self-Contained Air-Cooled Ice Machines53
- Water-Cooled Ice Machines53
- Remote Ice Machines53
- Aucs Accessory53
Checklist55
Safety Limit Feature56
