Manley CORE - Digital to Analog Converter

BRICKWALL
LIMITER
DIRECT
OUT 1
MAIN
OUT 2
OUTPUT
GAIN
TUBE STAGE
EQ
INSERT
JACK
FET
PIN1: SHIELD/GROUND
PIN2: HOT/POSITIVE PHASE
PIN3: LOW/NEGATIVE PHASE
c o r e
REFERENCE CHANNEL STRIP
MIC INPUT
LINE INPUT
DIRECT OUTPUT (1)
INSERT
XLR PINOUT
TIP: SEND
RING: RETURN
SLEEVE: GROUND
MIXER
DIGITAL TO ANALOG CONVERTER
SIGNAL PROCESSOR
EQ OR COMPRESSOR OR EFFECTS
DIRECT INPUT (FRONT PANEL)
DIGITAL AUDIO
WORKSTATION
8

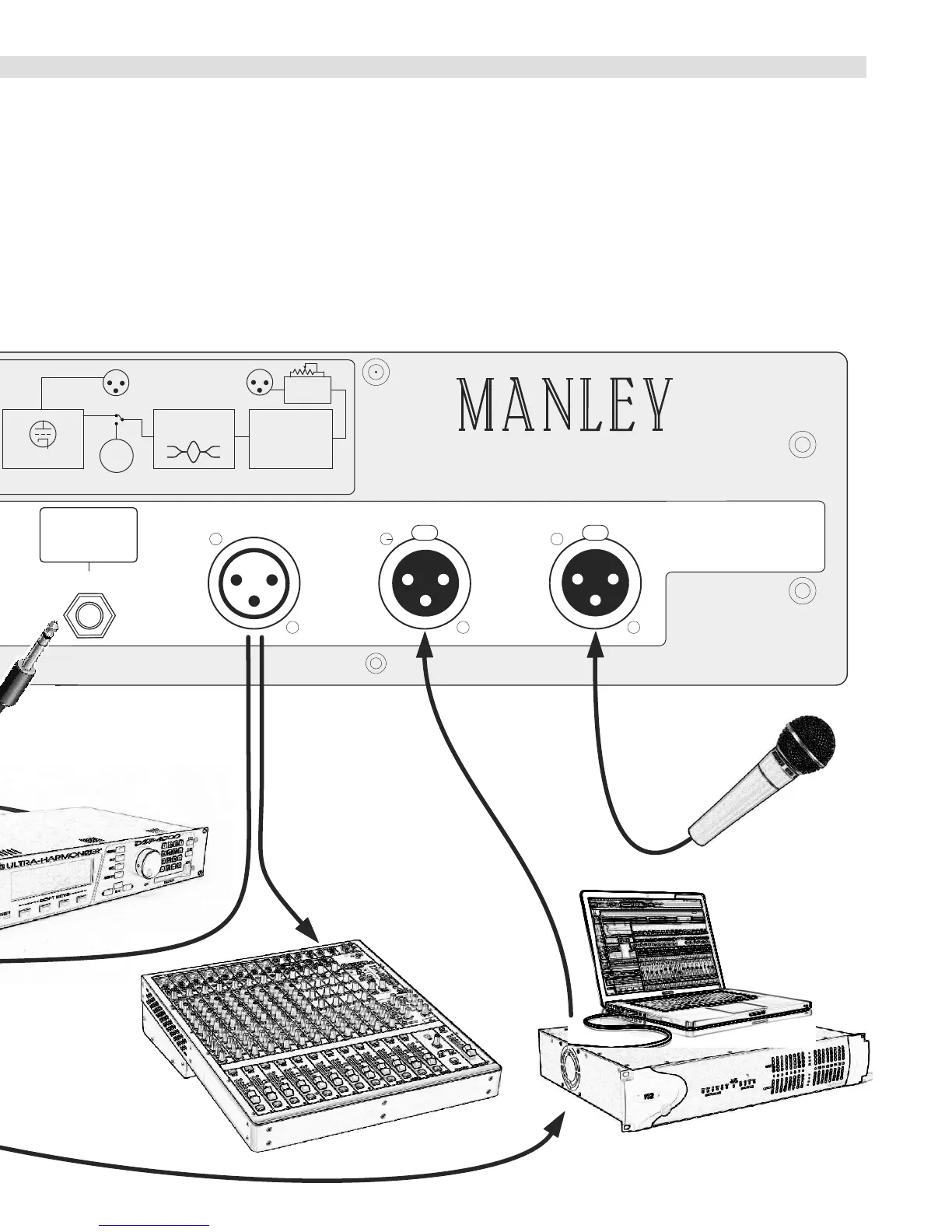

Diagram 7
