RDE 92500-02-R/08.94

Brueninghaus Hydromatik 11

Reparaturanleitung A11VO

Repair Instructions A11VO

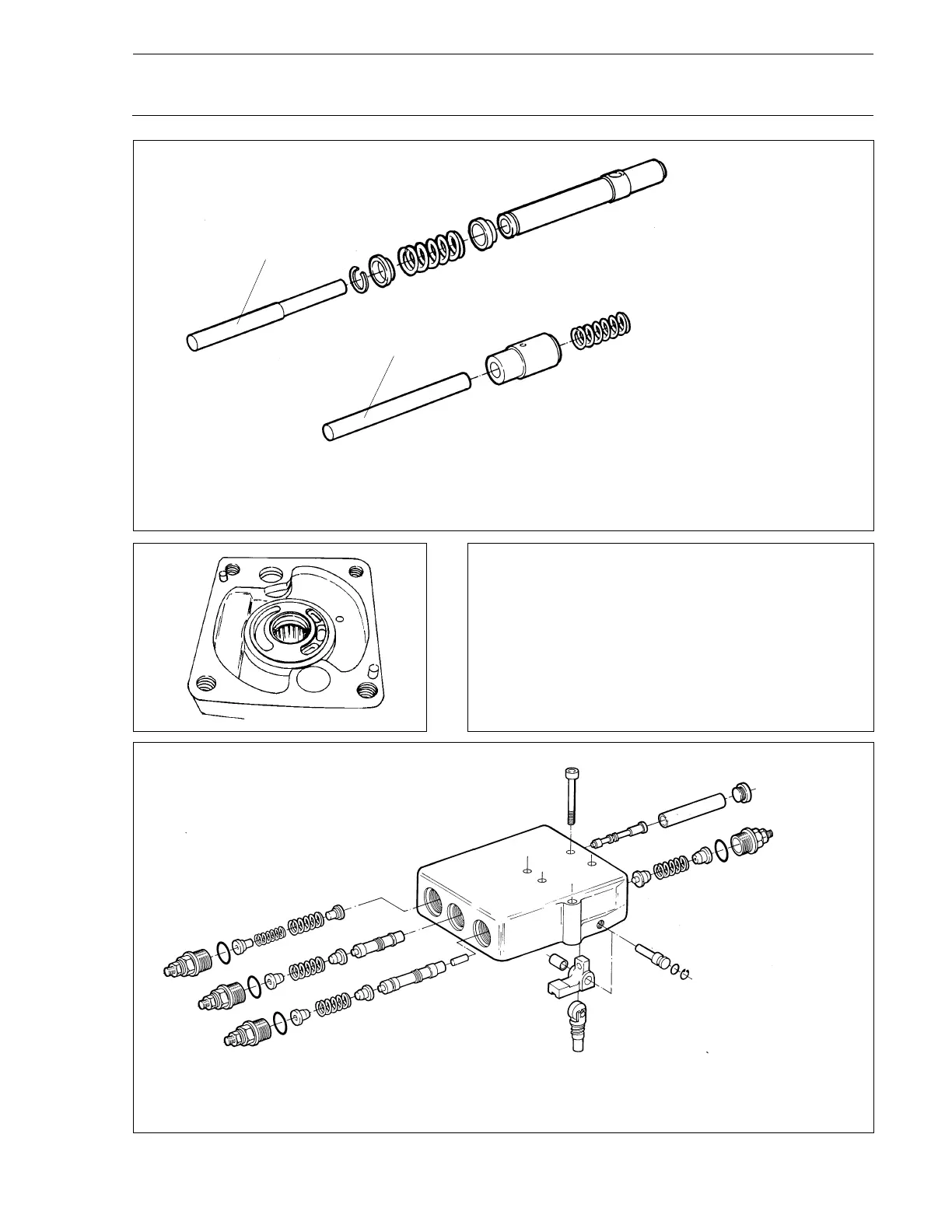

1. Hydraulische Verstellung - klein

2. Hydraulische Verstellung - groß

1. Hydraulic control rod - small size

2. Hydraulic control rod - big size

21 Steuerplatte ausbauen.

Lage kennzeichnen.

Remove control plate.

Mark position.

Regler zerlegen.

☞ * Einstellung nicht verändern.

Disassemble regulator.

☞ * Do not change setting values.

Anschlußplatte, Regler demontieren

Remove port plate, regulator
