Reparaturanleitung A11VO
Repair Instructions A11VO

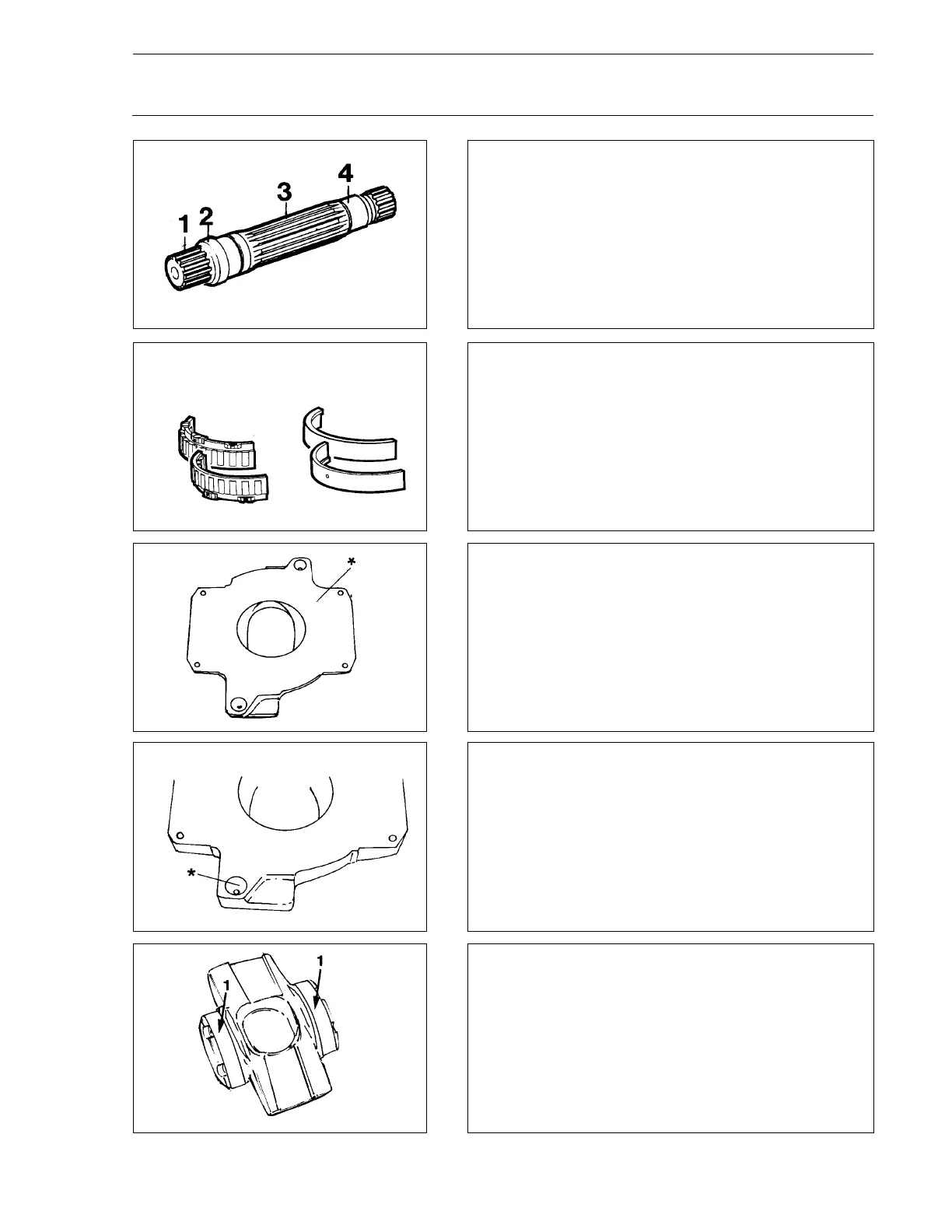

33 Kontrolle!
Verzahnung (1); Lauffläche WDR (2); Verzahnung (3);
Lagersitz (4).
Check!
Gears (1); Contact area shaft seal (2); Gears (3);
Bearing seat (4).
34 Kontrolle!
Käfig- Paar (1);
Lagerschalenpaar (2).
Check!
Cage set (1);
Bearing cup set (2).
35 Kontrolle!
Gleitfläche (*).
Check!
Contact area (*).
36 Kontrolle!
Kalotte für Regler (*).
Check!
Socket for regulator (*).
37 Kontrolle!
Lagerbahn (1).
Check!
Contact area of bearing (1).
Überprüfungshinweise
Inspection notes
Lager
Bearing
Lagerschalen
Bearing cup
