RDE 92500-02-R/08.94
Brueninghaus Hydromatik 9
Reparaturanleitung A11VO
Repair Instructions A11VO
14

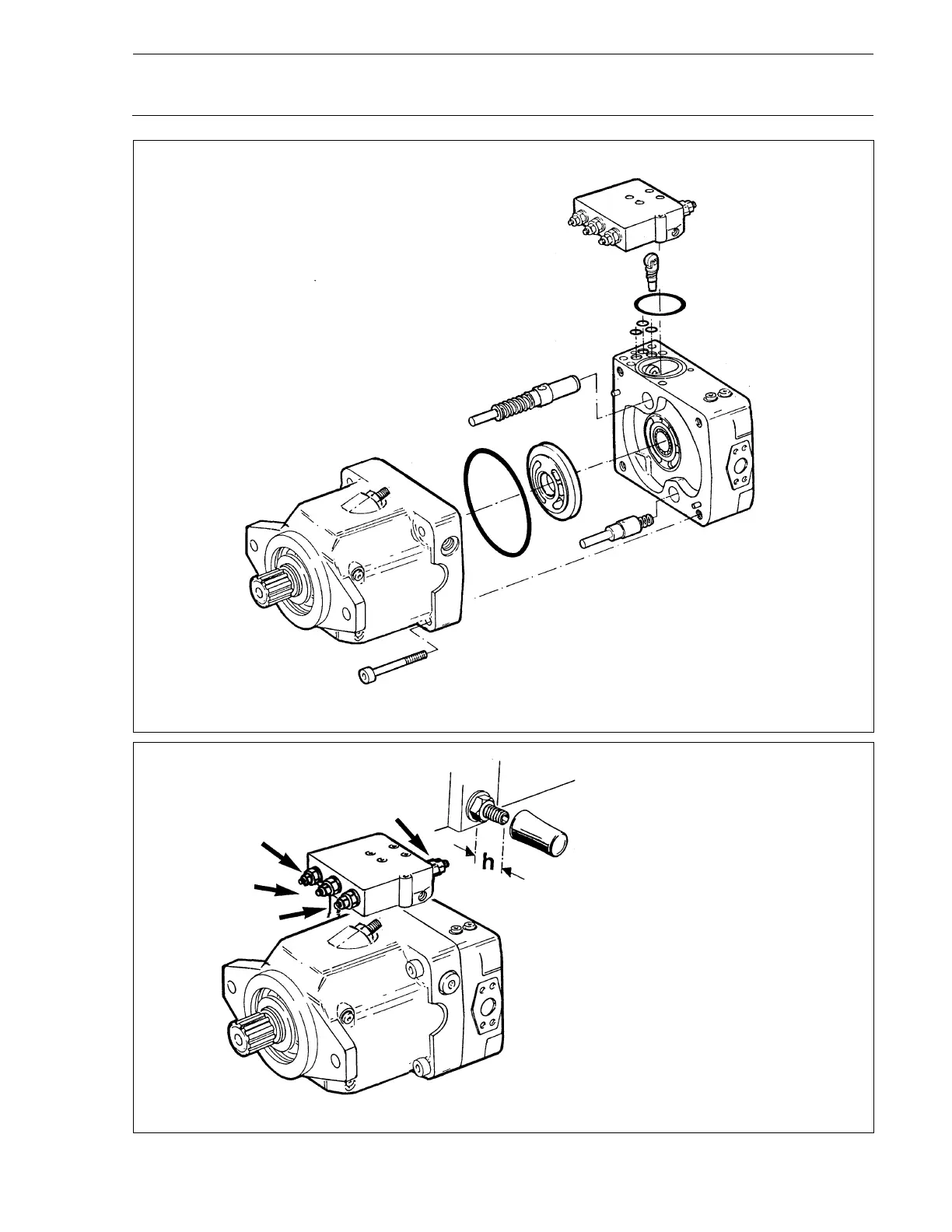

Anschlußplatte, Regler demontieren
Remove port plate, regulator
Schutzkappe abnehmen.
Einstellhöhe "h" messen und notieren.
Remove protection cover.
Measure and note adjustment heigth "h".
15
