RDE 92500-02-R/08.94

Brueninghaus Hydromatik 13

Reparaturanleitung A11VO

Repair Instructions A11VO

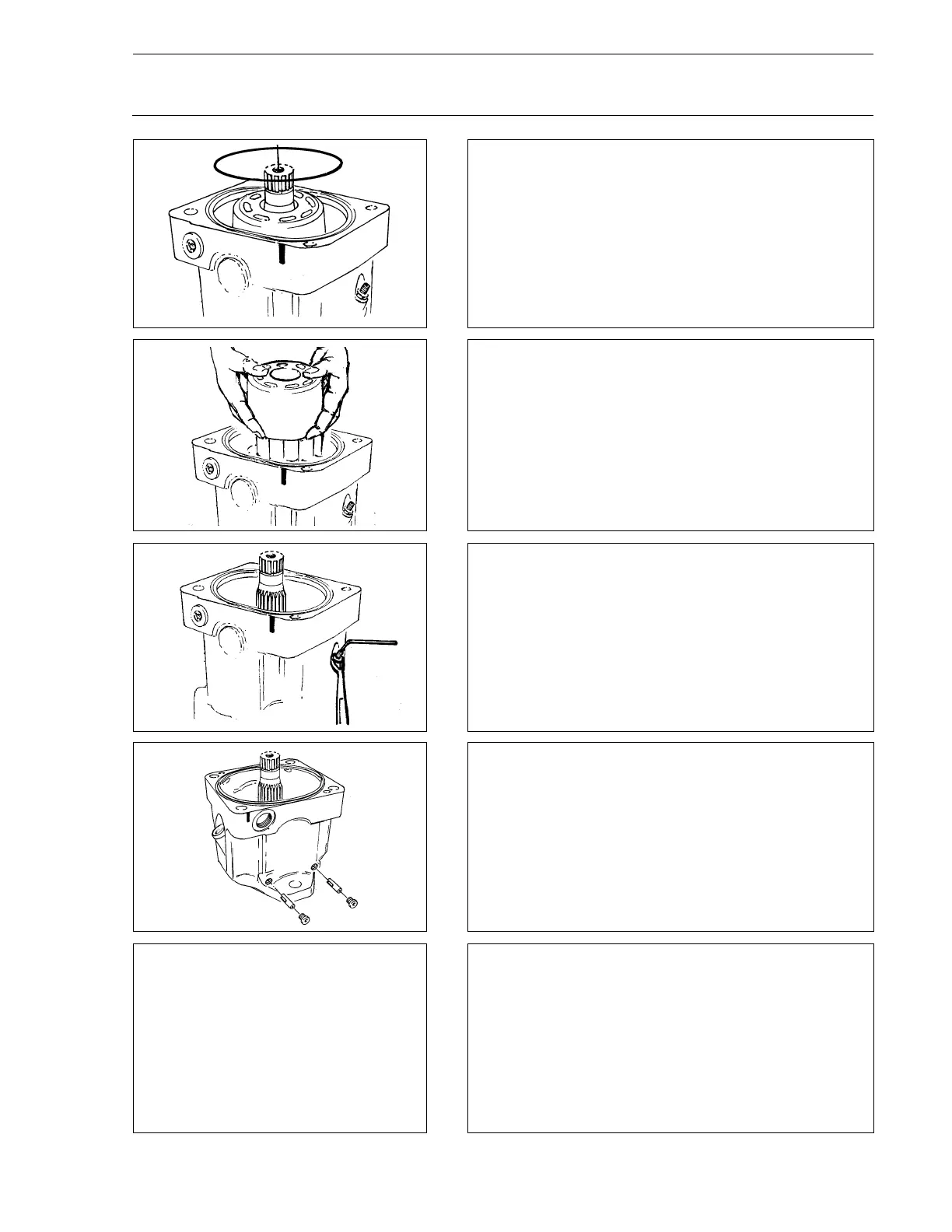

26 O-Ring ausbauen.

Remove O-ring.

27 Zylinder mit Kolben ausbauen.

Remove cylinder with pistons.

28 Q-min, Q-max- Einstellschrauben lösen.

Maß "X" festhalten.

Remove Q-min and Q-max screws after noting

down adjustment dimension.

29 Gelenkstifte für Schwenklager ausbauen.

Remove joint pin for swivel cradle.

Triebwerk ausbauen

Remove rotary group
