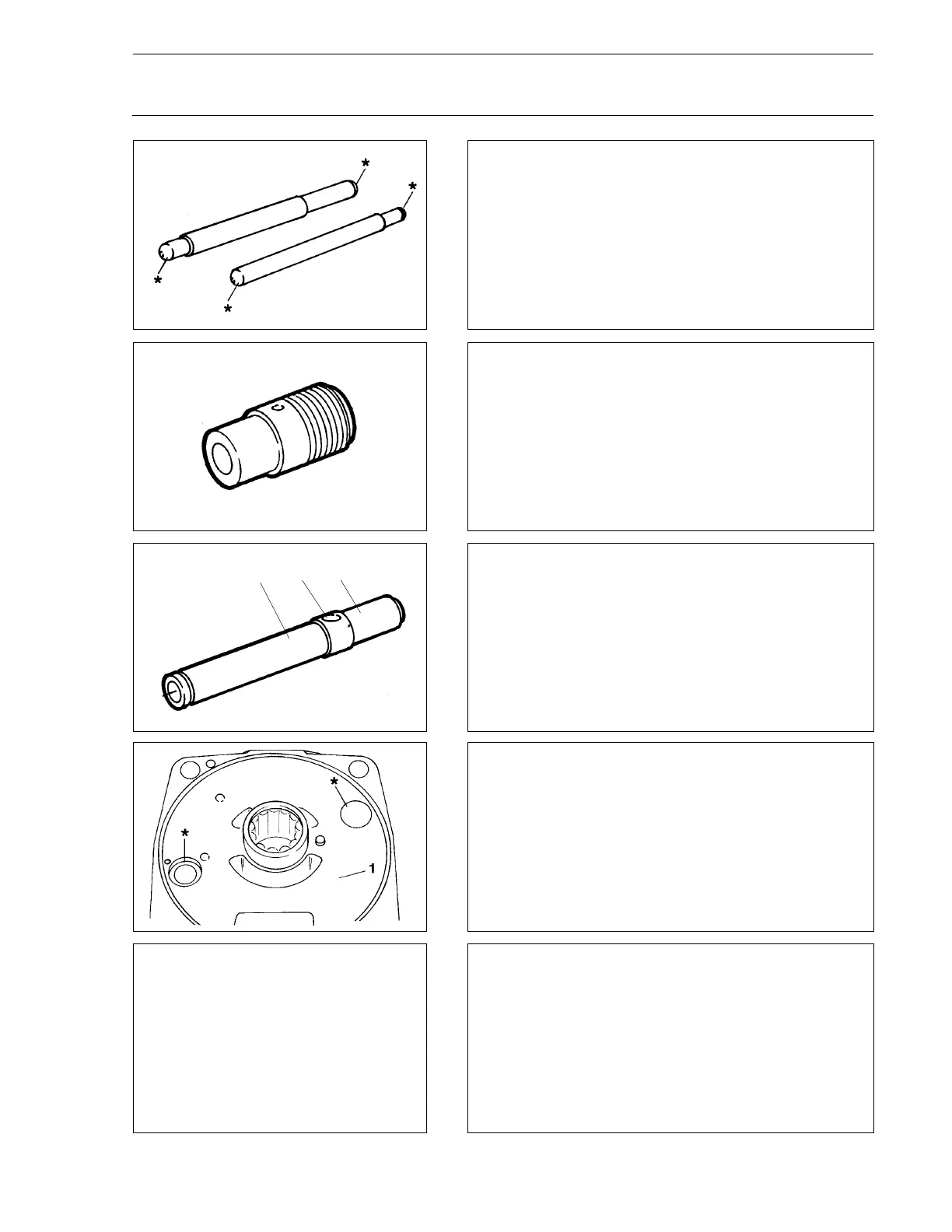

RDE 92500-02-R/08.94

Brueninghaus Hydromatik 17

Reparaturanleitung A11VO

Repair Instructions A11VO

43 Kontrolle!

Kugelköpfe (*)

Check!

Fixing segments (*)

44 Kontrolle!

Kolben (*)

Check!

Pistons (*)

Überprüfungshinweise

Inspection notes

45 Kontrolle!

Stellkolben (1)

Bohrung - Steuerbüchse (2)

Check!

Positioning piston (1)

Boring - control bush (2)

46 Kontrolle!

Bohrung (*)

Auflagefläche - Steuerplatte (1)

Check!

Boring (*)

Contact area control plate (1)
