USER’S MANUAL
15
User’s Manual
Control Panel
Control Panel Button Function
VOL+ : Volume up.
VOL- : Volume down.
CH+: TV channel up.
CH- : TV channel down.
MENU : Press to select the main menu.
SOURCE : Select the input signal.
POWER : Turn the TV on or o.

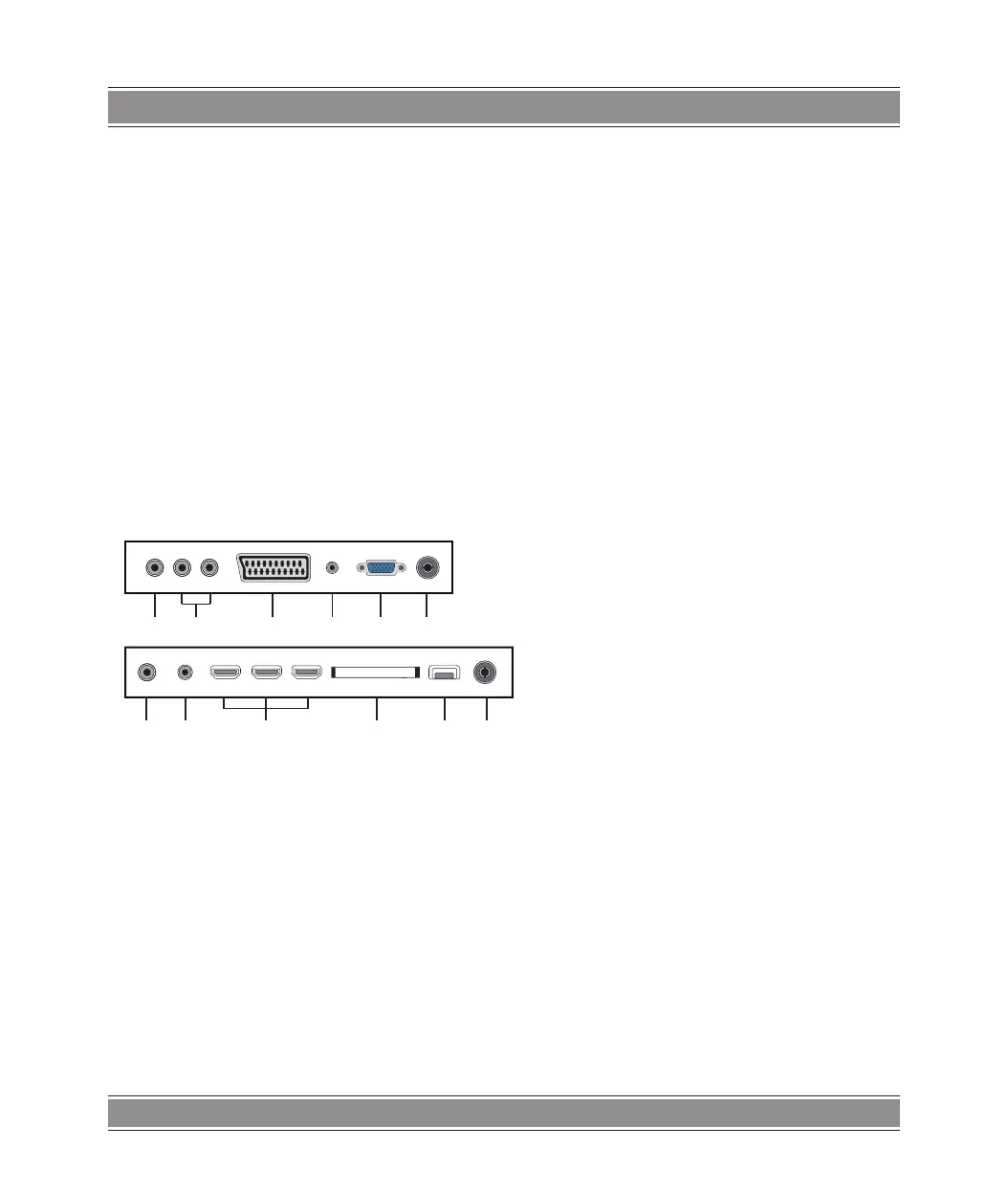

TV Terminal Connections
8. HEADPHONE output terminal.
4. PC AUDIO terminal.
5. VGA input terminal.
7. Mini-YPBPR input terminal.
3. SCART input terminal.
1. Video input terminal.
2. AUDIO input terminal.
6. TV antenna.
9. HDMI input terminal.
11. USB input terminal.
10. CI slot.
12.COAXIAL connect to a 5.1 audio system.
Optional Configuration
as below
Connect the USB to the USB jack on the set.
NOTE
– It is only 500 mA MAX of DC current output when you con-
nect with USB jack
– To ensure the Mobile HD works well, you should use other
power supply for the Mobile HD. And do not use the USB jack
in the same time.
– It supports Mobile HD by connecting with USB jack (must
more than 2 GB). The partitions of the Mobile HD can’t be more
than 4 partitions. The max partition is 2TB. It supports FAT/FAT32
document. The max FAT document is 4GB and the max FAT32
document is 2TB.
1
7 8 9 10 11 12
2 3 4 5 6
