Mantis 2224DAHM - Page 13

Key No. Part No. Description Qty.
1 300000 Gear Housing Assembly 1
2 16-54B 1/4-28 Whiz Flange Locknut 7
3 300300 Frame Bar Brace 1
4 300200 Side Handle 1
5 300201 Grip 1
6 300310 30" Frame Bar 1
7 30-2 30" Inside Blade 1
Key No. Part No. Description Qty.
8 30-1 30" Outside Blade 1
9 16-93 Blade Guard 5
10 16-54A Large Head Phillips Screw 4
11 300504 Large Head Screw 1/4-28 x 7/8 1
12 16-65 Connecting Rod Spacer 1
13 16-64 Connecting Rod 1
14 300316 Thread Protector 2
15 3036-B 1/4-28 Flange Locknut 2

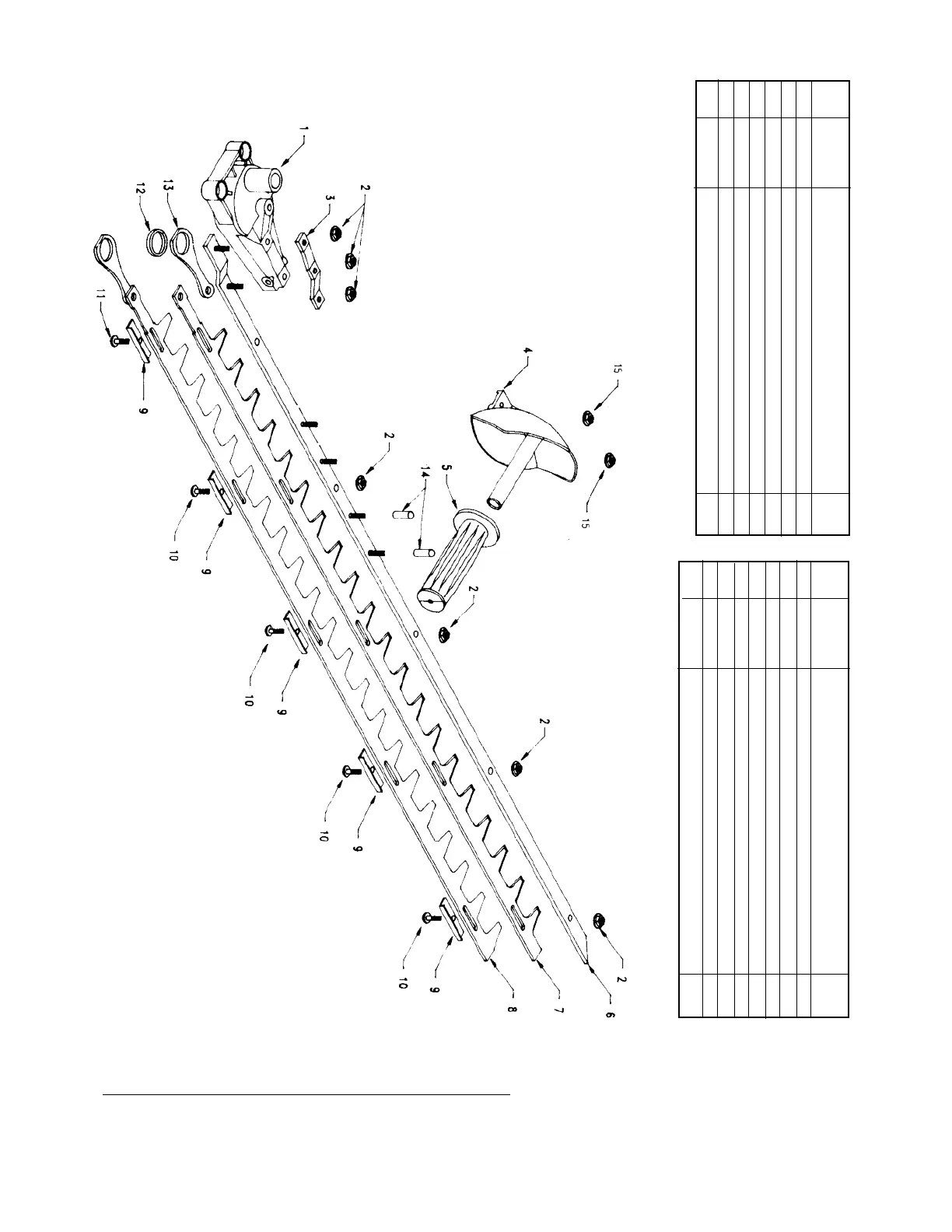

CUTTING BAR AND SIDE HANDLE ASSEMBLY
Single Edge Trimmers
