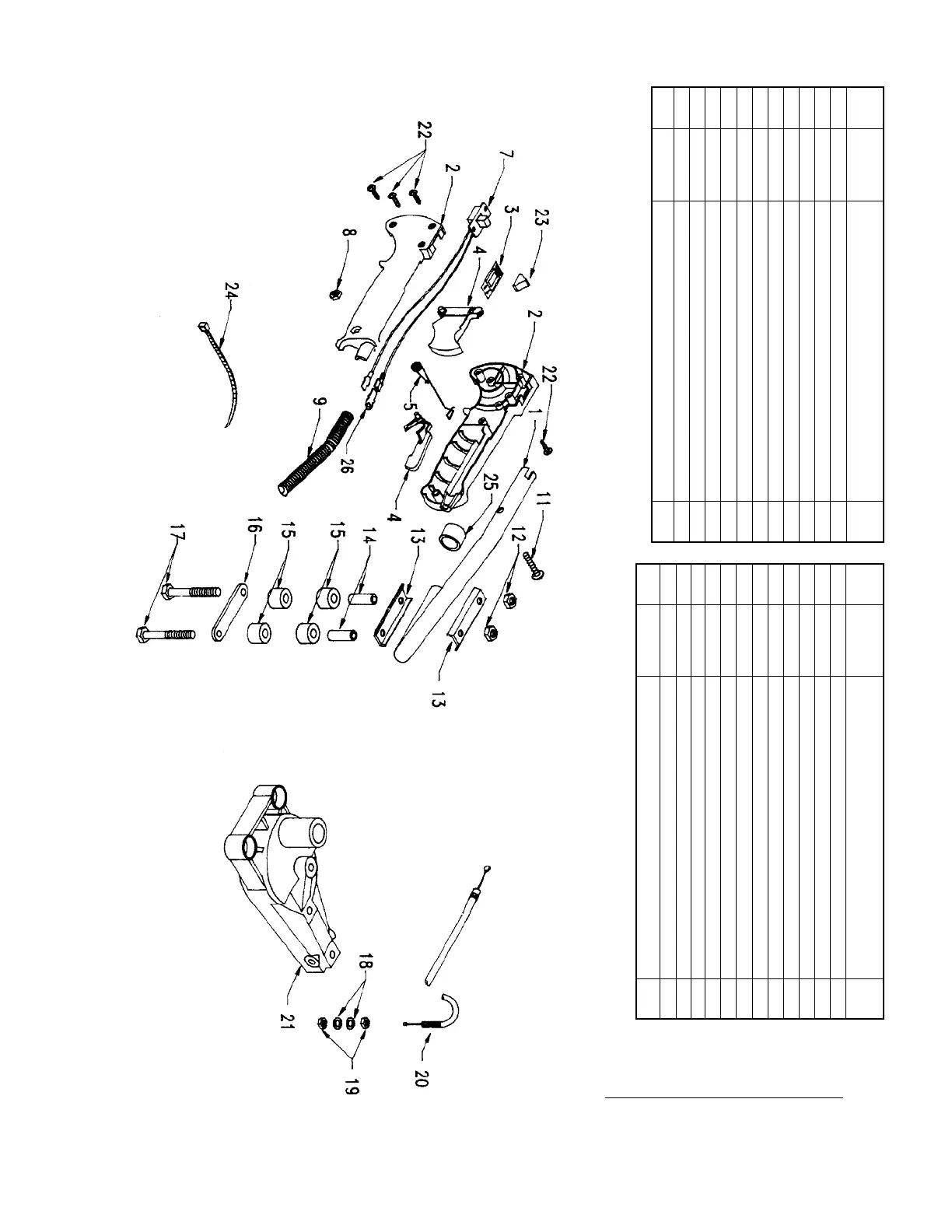

REAR HANDLE ASSEMBLY
Single Edge Trimmers
Key No. Part No. Description Qty.
1 300101 Handle 1
2 300103 Grip (Set) 1
3 300117 Switch Plate 1 4 300122 Trigger Set 1
5 300108 Trigger \ Lockout Springs 1
6 - - - - - - - - - - -
7 300120 Switch/With Leads 1
8 973 10-32 Lock Nut 1
9 300116 Conduit 1
11 300503 10-32 x 1 1/4" Machine Screw 1
12 972 1/4-20 Lock Nut 2
13 300102 Handle Support Channel 2
Key No. Part No. Description Qty.
14 300113 Spacer 2
15 300111 Shock Absorber 4
16 300112 Support Plate 1
17 300505 1/4-20 x 2 1/2" Bolt 2
18 300502 6MM Star Lock Washer 2
19 300500 6MM Nut 2
20 300115 Throttle Cable 1
21 300000 Gear Housing Assembly 1
22 300511 7/8" Phillips Pan Head Screw 4
23 300109 Switch Cap 1
24 300118 Cable Tie 1
25 376-1 Handle End Cap 1
26 300121 Eyelet Spade Terminal 1
