Mantis 2224DAHM - Page 15

Key No. Part No. Description Qty.
2 300115 Throttle Cable 1
3 300500 6MM Nut 2
4 300502 6MM External Star Lockwasher 2
5 300119 Conduit 1
6 16-54B 1/4 - 28 Whiz Flange Locknut 7
7 300308 24" D.E. Frame Bar w/Studs (for model 2224DAH) 1 7 300312 30" D.E. Frame Bar w/Studs 1
8 24-2D 24" D.E. Inside Blade 1
8 30-2D 30" D.E Inside Blade 1
9 24-1D 24" D.E. Outside Blade 1
9 30-1D 30" D.E. Outside Blade 1
Key No. Part No. Description Qty.
10 24-42 24" Protective Comb 1
11 16-54A Large Head Phillips Screw 3
12 300504 7/8" Large Head Phillips Screw 1
13 16-65 Connecting Rod Spacer 1
14 16-64 Connecting Rod 1
15 300512 1/4 - 20 x 2 1/4 Bolt 2
16 300112 Support Plate 3
17 300403 Shock Absorber 8
18 300000 Gear Housing Assembly 1
19 300113 Spacer Tube 4
20 972 1/4 - 20 Locknut 2
21 300300 Frame Bar Brace 1

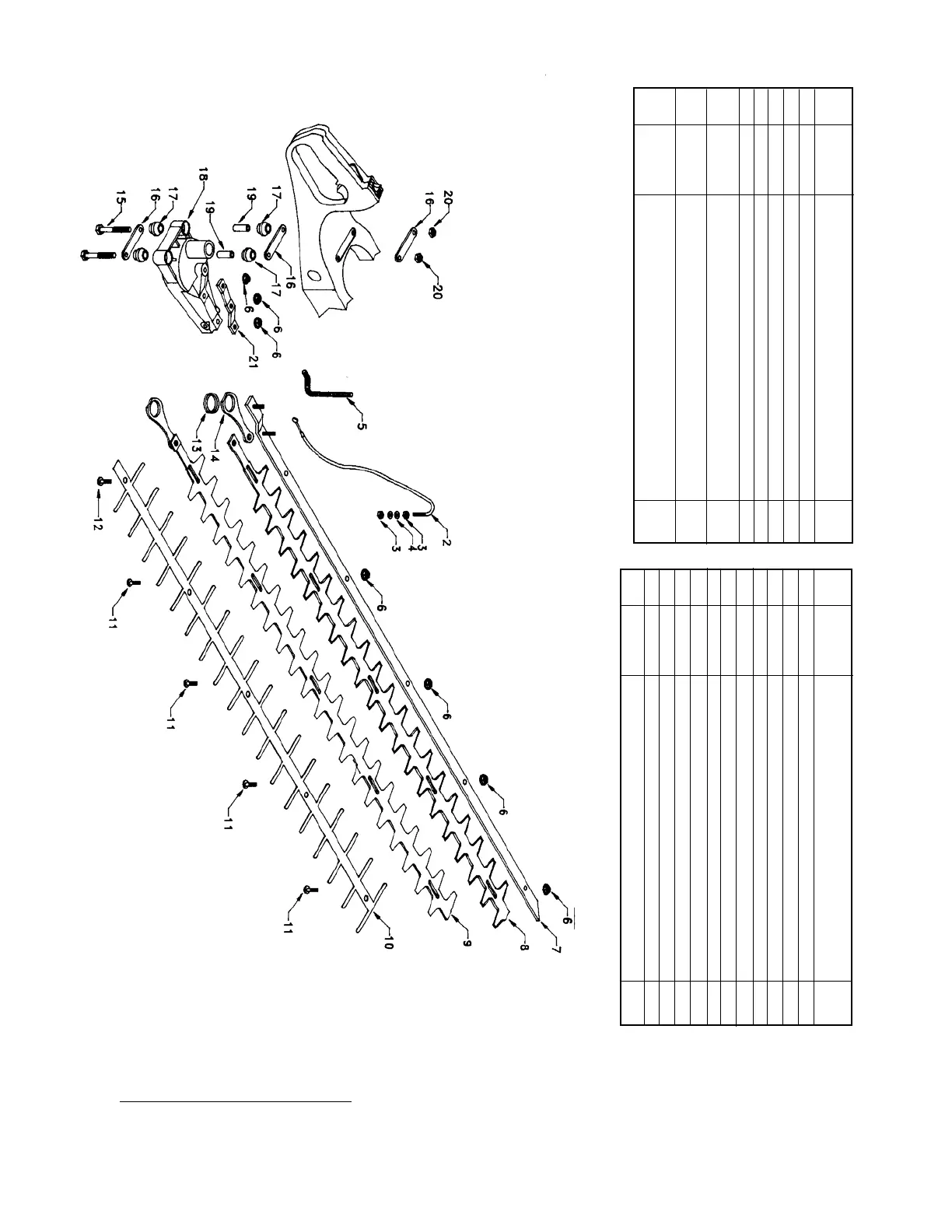

CUTTING BAR ASSEMBLY
Double Edge Trimmers
15
