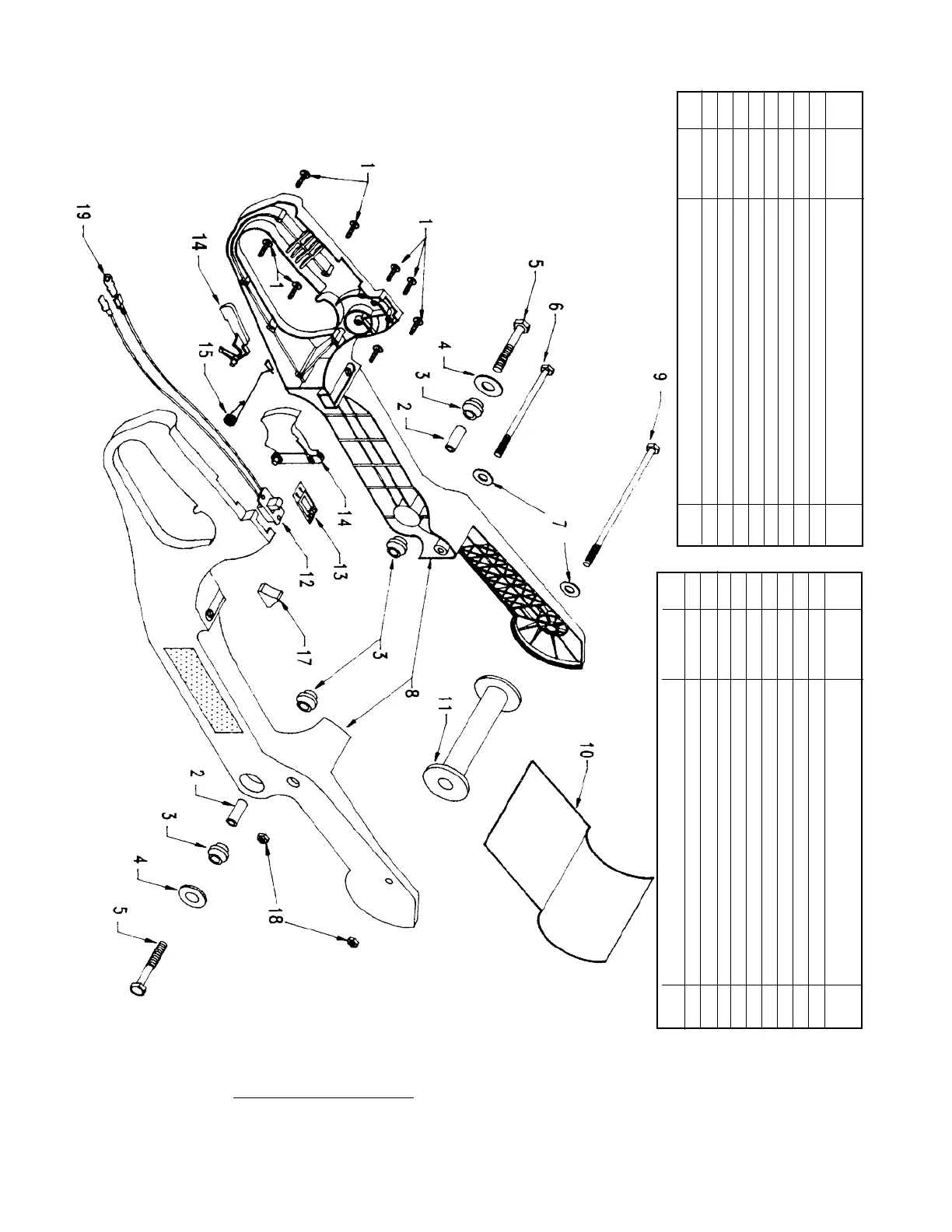

HANDLE ASSEMBLY
Double Edge Trimmers
Key
No. Part No. Description Qty.
1 300511 7/8" Phillips Pan Head Screw 8
2 300113 Spacer Tube 4
3 300403 Shock Absorber 8
4 328 1/4" Flat Washer 2
5 300506 1/4-28 x 1 5/8 Hex Head Bolt 2
6 300510 10-32 x 4 Hex Head Bolt 1
7 300508 #10 Flat Washer 2
8 300400 Grip Set 1
9 300507 10-32 x 5 1/2 Hex Head Bolt 1
Key
No. Part No. Description Qty.
10 300405 Hand Guard 1
11 300404 Front Handle 1
12 300120 Switch With Leads 1
13 300117 Switch Plate 1
14 300122 Trigger Set 1
15 300108 Trigger/Lockout Spring 1
16 - - - - - - - - - - - - - -
17 300109 Switch Cap 1
18 973 10-32 Locknut 2
19 300121 Eyelet Spade Terminal 1
16
