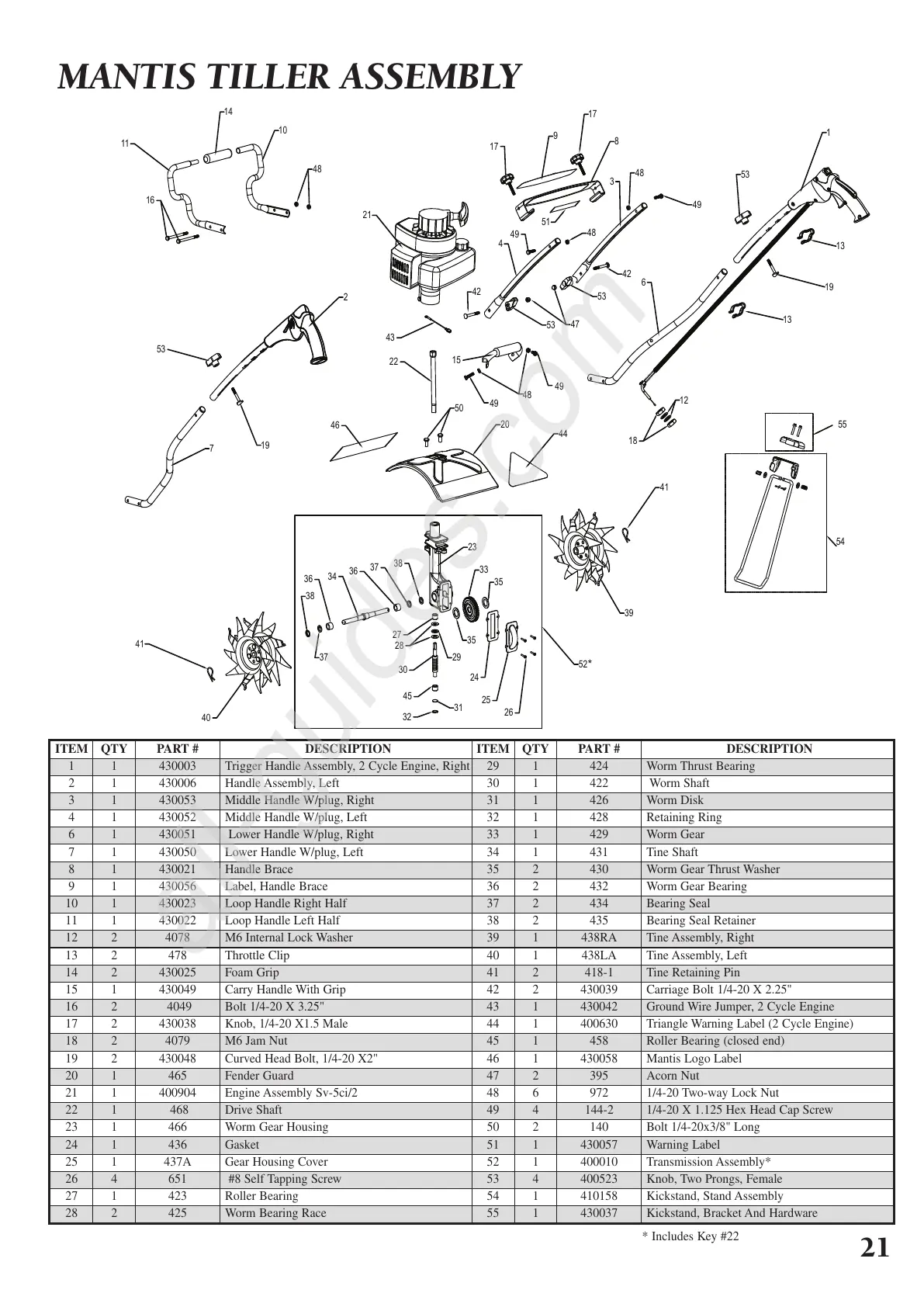

ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION
1 1 430003 Trigger Handle Assembly, 2 Cycle Engine, Right 29 1 424 Worm Thrust Bearing
2 1 430006 Handle Assembly, Left 30 1 422 Worm Shaft
3 1 430053 Middle Handle W/plug, Right 31 1 426 Worm Disk
4 1 430052 Middle Handle W/plug, Left 32 1 428 Retaining Ring
6 1 430051 Lower Handle W/plug, Right 33 1 429 Worm Gear
7 1 430050 Lower Handle W/plug, Left 34 1 431 Tine Shaft
8 1 430021 Handle Brace 35 2 430 Worm Gear Thrust Washer
9 1 430056 Label, Handle Brace 36 2 432 Worm Gear Bearing
10 1 430023 Loop Handle Right Half 37 2 434 Bearing Seal
11 1 430022 Loop Handle Left Half 38 2 435 Bearing Seal Retainer
12 2 4078 M6 Internal Lock Washer 39 1 438RA Tine Assembly, Right
13 2 478 Throttle Clip 40 1 438LA Tine Assembly, Left
14 2 430025 Foam Grip 41 2 418-1 Tine Retaining Pin
15 1 430049 Carry Handle With Grip 42 2 430039 Carriage Bolt 1/4-20 X 2.25"
16 2 4049 Bolt 1/4-20 X 3.25" 43 1 430042 Ground Wire Jumper, 2 Cycle Engine
17 2 430038 Knob, 1/4-20 X1.5 Male 44 1 400630 Triangle Warning Label (2 Cycle Engine)
18 2 4079 M6 Jam Nut 45 1 458 Roller Bearing (closed end)
19 2 430048 Curved Head Bolt, 1/4-20 X2" 46 1 430058 Mantis Logo Label
20 1 465 Fender Guard 47 2 395 Acorn Nut
21 1 400904 Engine Assembly Sv-5ci/2 48 6 972 1/4-20 Two-way Lock Nut
22 1 468 Drive Shaft 49 4 144-2 1/4-20 X 1.125 Hex Head Cap Screw
23 1 466 Worm Gear Housing 50 2 140 Bolt 1/4-20x3/8" Long
24 1 436 Gasket 51 1 430057 Warning Label
25 1 437A Gear Housing Cover 52 1 400010 Transmission Assembly*
26 4 651 #8 Self Tapping Screw 53 4 400523 Knob, Two Prongs, Female
27 1 423 Roller Bearing 54 1 410158 Kickstand, Stand Assembly
28 2 425 Worm Bearing Race 55 1 430037 Kickstand, Bracket And Hardware
* Includes Key #22
*
