9
1 Oil inspection window (see Fig. 2)
2 Oil pump adjuster
3 Front handle
4 Oil tank cap
5 Front hand protection
6 Blade
7 Saw chain

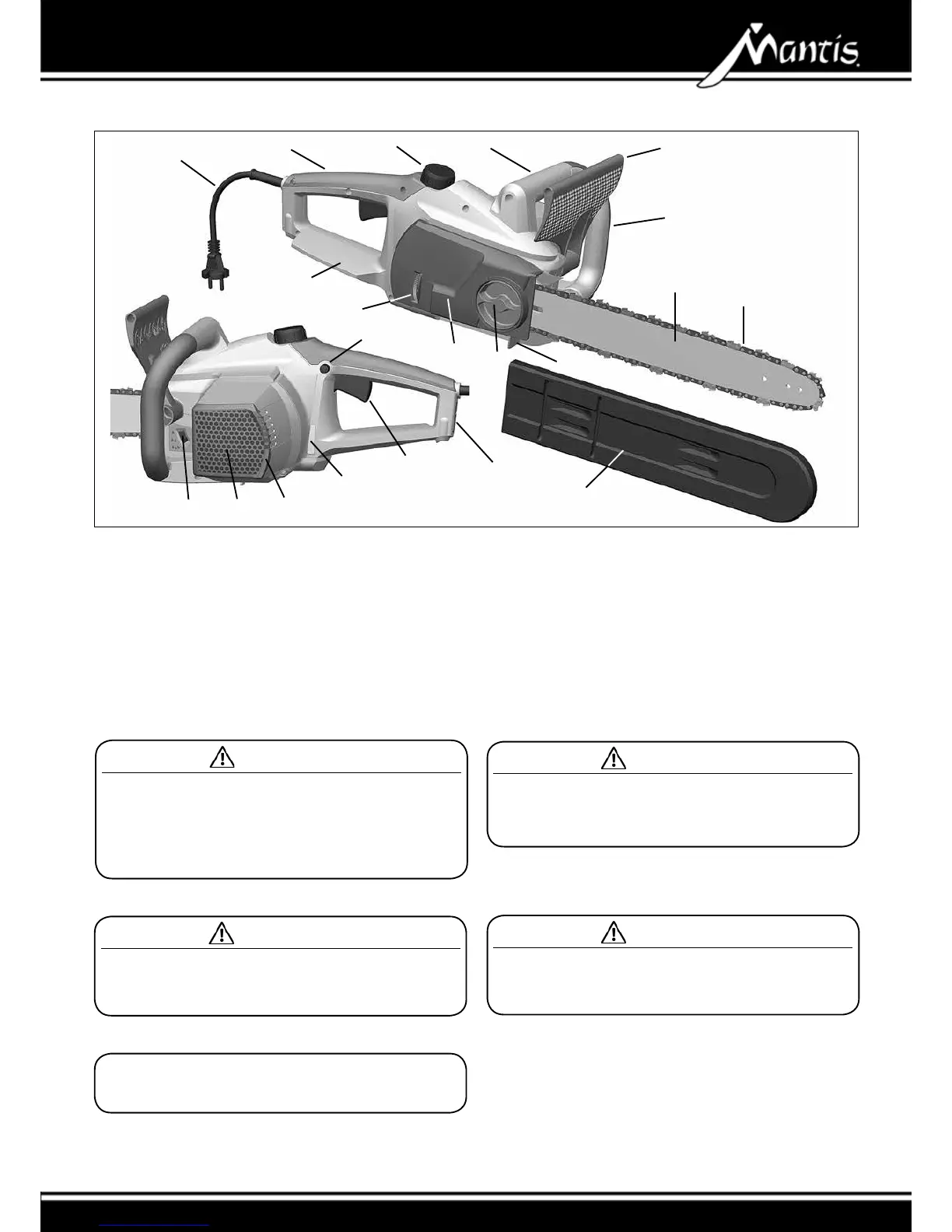

4. Names of Parts
8 T-screw
9 Pinion lid
10 Switch
11 Rear hand protection
12 Rear handle
13 Plug
14 Blade protection
15 Fell handle for horizontal cut
16 Stopping button (see Fig. 6 / 15)
17 Knurling wheel for quick chain tension adjustment
18 Chain catch bolt
19 Cable holder
20 Filter cover
21 Filter
14
20
8
17
6
7
15
5
3
11
10
16
12
13
4
1
9
18
2
19
21
Do not use this product if any parts on the packing list
are already assembled to your product when you unpack
it. Parts on this list are not assembled to the product by
the manufacturer and require customer installation. Use
of a product that may have been improperly assembled
could result in serious personal injury.
WARNING
If any parts are damaged or missing, do not operate
this product until the parts are replaced. Failure to heed
this warning could result in serious personal injury.
WARNING
Do not allow familiarity with this product to make
you careless. Remember that a careless fraction of a
second is sufcient to inict serious injury.
WARNING
Do not connect to power supply until assembly is
complete. Failure to comply could result in accidental
starting and possible serious personal injury.
WARNING
Use a GFCI (ground fault circuit interrupt) protected
supply with a tripping current of 30 mA or less.
