3
Item Description Qty
Step 1
1a 10-32 X 3/8 Machine Screw, Slotted Truss Head, Steel, Zinc Plated 5
1b 10-32 Serrated Flange Locknut 5
Step 3
3a
10-24 X 1/2 Special Phillips Truss Head Shoulder Bolt, Steel, Yellow Zinc Plated
12
3b #10 SAE Flat Washer Steel, Zinc Plated 12
3c 10-24 Nylon Insert Lock Nut, NM, Steel, Zinc Plated 12
Step 4 & 5
4a 1/4-20 Acorn Cap Nut High Crown (7/16X19/32), Steel, Zinc Plated 6
5a 1/4-20 X 3 1/4 Hex Head Cap Screw Grade 2, Steel, Zinc Plated 2
5b 1/4-20 Wing Nut Steel, Zinc Plated 2
Step 6
6a
10-32 X 3/8 Machine Screw, Slotted Truss Head, Steel, Zinc Plated
8
6b #10 SAE Flat Washer Steel, Zinc Plated 4
6c #10 Medium Split Lock Washer, Steel, Zinc Plated 4
6d 10-32 Hex Nut Grade 2, Steel, Zinc Plated 4
6e 10-32 Serrated Flange Locknut 4
6f Latch Hook, Zinc Plated 2
6g Latch, Steel, Zinc Plated 2
Step 7 & 8
7a
#6 X 5/16 Phillips Pan Head Type B Sheet Metal Screw, Steel Zinc Plated
1
8a 1/8 X 3/4 Cotter Pins Stl Zinc 1
Step 10
10a 3/8 X 1 1/2 Fender Washer Steel, Grade 2, Zinc Plated 2
10b 3/8-16 Hex Two Way Locknut , Steel, Zinc Plated 2
10c 3/8-16 X 4 Hex Head Cap Screw, Grade 2, Steel, Zinc Plated 2
Step 11
11a 1/4-20 X 3/4 Hex Head Cap Screw, Grade 2, Steel, Zinc Plated 1
11b 1/4-20 X 1 1/2 Hex Head Cap Screw, Grade 2, Steel, Zinc Plated 6
11c 1/4 Medium Split Lock Washer, Steel, Zinc Plated 7
11d 1/4-20 Finished Hex Nut Steel , Zinc Plated 7

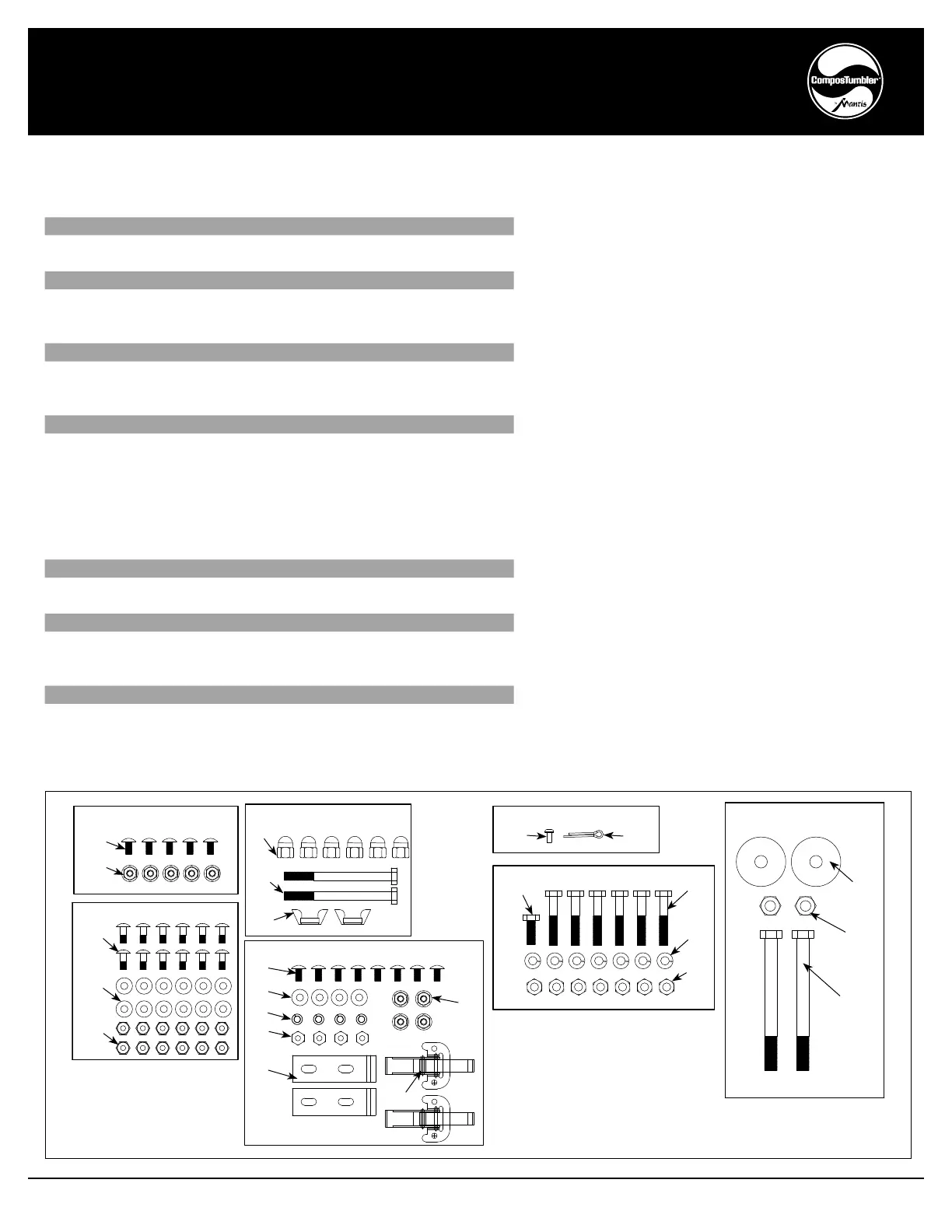

Hardware for the Compact ComposTumbler
1a
4a
7a
11a 11b
10a
10b
10c
11c
11d
8a
5a
6a
5b
6b
6c
6e
6f
6g
6d
1b
3a
3b
3c
STEP 1
STEP 4 & 5
STEP 7 & 8
STEP 6
STEP 11
STEP 10
STEP 3
All hardware can be found in the enclosed hardware
bags. You will see that the items needed for each
step have been grouped together.
