Mantis COMPACT ComposTumbler CT02001 - STEP 3 - DRUM PANEL B ASSEMBLY; STEP 4 - ENDCAP INSTALLATION

7
3.1 3.2

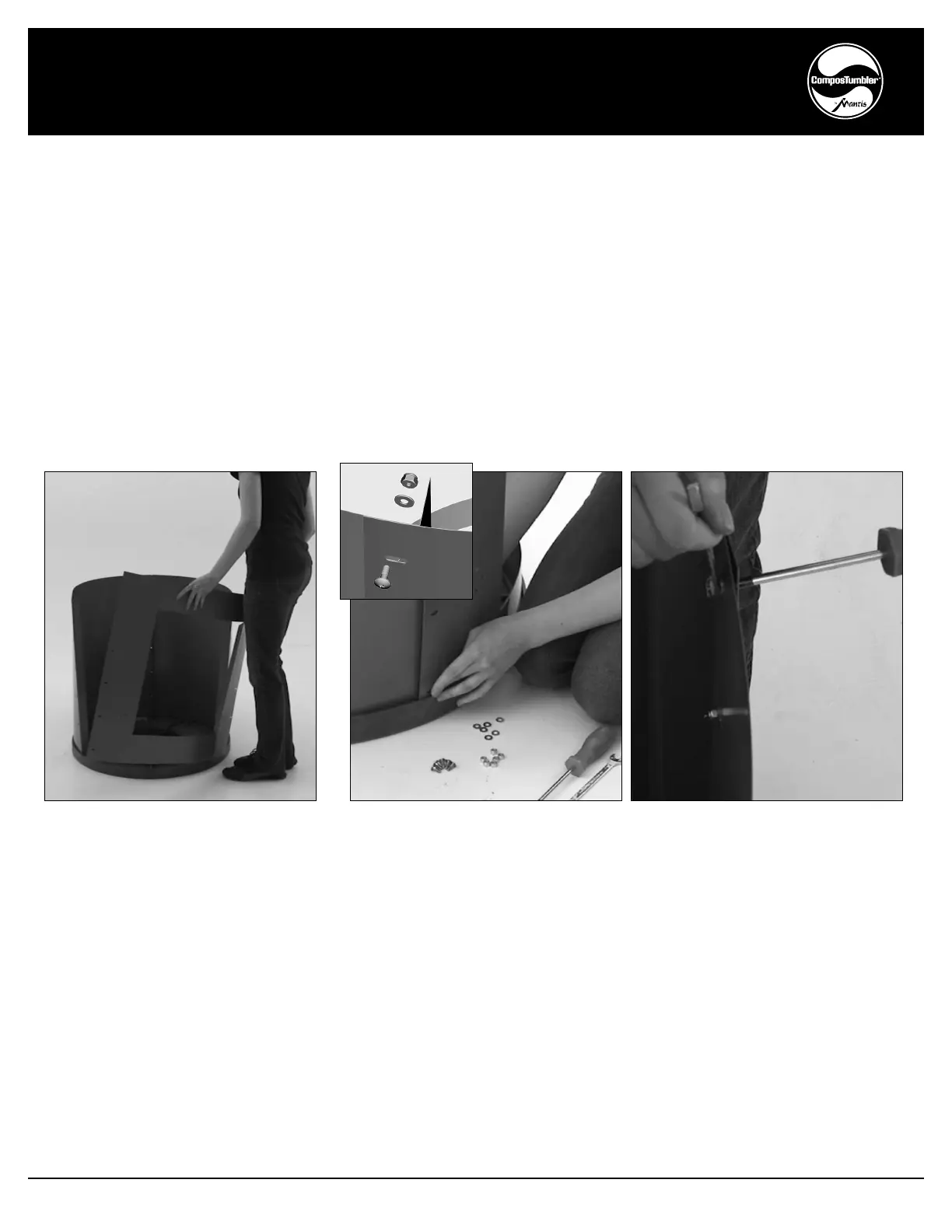

WiththensontheDrumPanelB
opening facing into the drum, insert
drum panel B into the remaining open
space in the endcap.
Align the holes and fasten drum panel B to the drum with the shoulder bolts,
washers, and lock nuts.
WHAT YOU’LL NEED
Tools: Philips screwdriver
3/8” wrench
Hardware: 3a - (12) ½” Philips truss head shoulder bolts
3b - (12) Flat washers
3c - (12) Nylon insert lock nuts
Parts: Item 2 - (1) Drum Panel B
WHAT YOU’LL NEED
Tools: 7/16” wrench
Adjustable wrench
Hardware: 4a - (6) ¼” Acorn cap nuts
Parts: Item 4 - (1) Endcap
Item 7 - (3) Tie rods
STEP 3 – DRUM PANEL B ASSEMBLY
STEP 4 – ENDCAP INSTALLATION
