Mantis COMPACT ComposTumbler CT02001 User Manual

9
6.2
Position the Latch Hooks on the other side of the panel
opening with the hook ends toward the opening and attach
themwiththe#10screws(6a),atwashers(6b),splitlock
washers(6c),andhexnuts(6d).Besuretheatwasher,
lock washer and nut are on the underside of the panel in the
recess, with the Bolt head on top of the Latch Hook. Use
the screwdriver and 3/8” wrench to tighten the latch hooks.
WHAT YOU’LL NEED
Tools: Flat screwdriver
3/8” wrench
Hardware: 6a – (8) 10-32 x 3/8” machine screws
 6b-(4)#10atwashers
6c - (4) #10 split lock washers
6d – (4) 10-32 hex nuts
 6e–(4)10-32serratedangelocknuts
6f - (2) Latch hooks
6g - (2) Latches
Parts: Complete Drum assembly (from step 4)

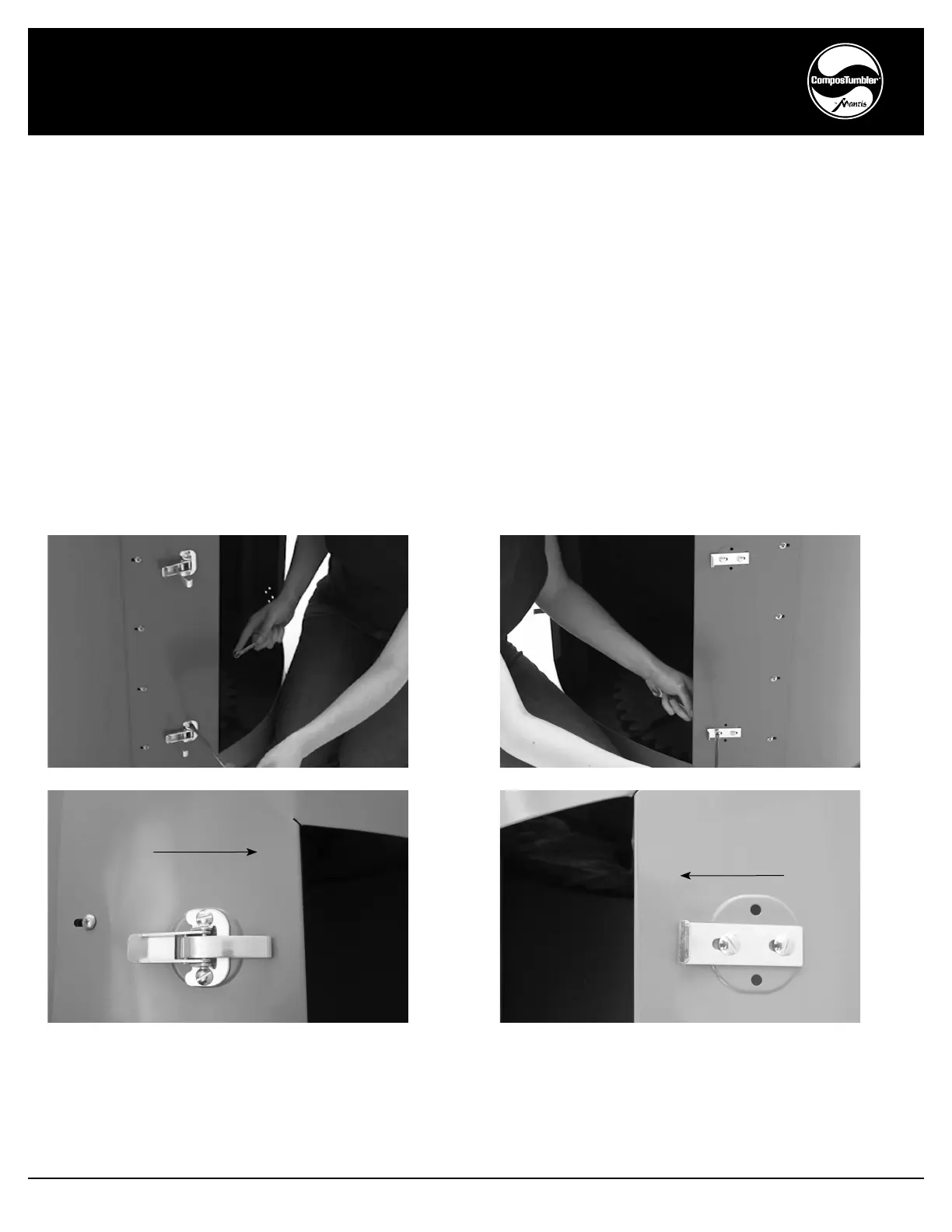

STEP 6 – LATCH/LATCH HOOK INSTALLATION
Door Opening
6.1
Attach the latches (6g) to one side of the door
opening with the hooks of the latches positioned
toward the opening. Secure them with #10 screws
(6a)andserratedangelocknuts(6e)withtheBolt
Head on top of the Latch. Use the screwdriver and
3/8” wrench to tighten the latches.
Door Opening
