Mantis compact compostumbler User Manual

4

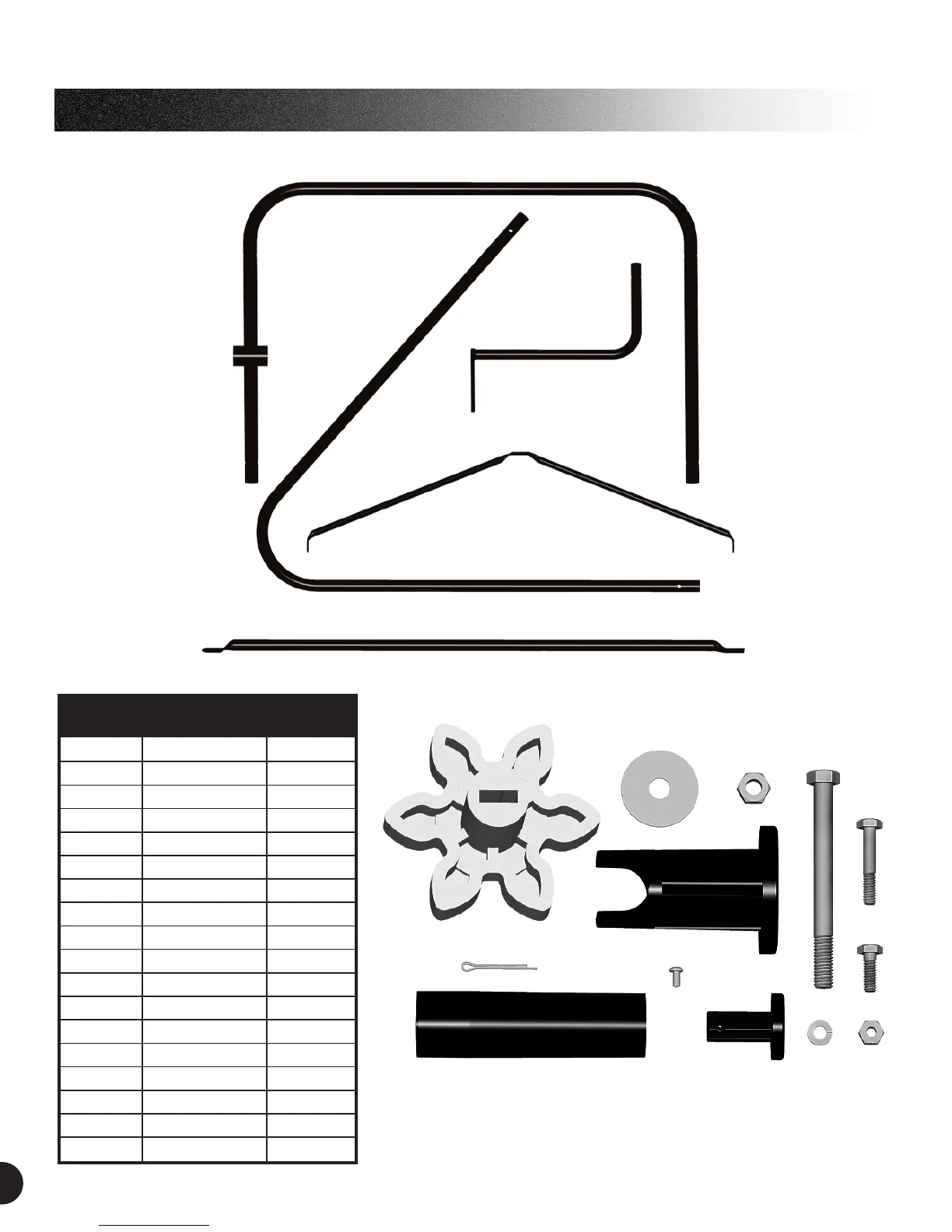

Parts For The Frame
Parts For The Frame
PART QUANTITY
ITEM NO. DESCRIPTION NEEDED
19 Drive Support 1
20 Drive Handle 1
21 Brace 2
22 Frame Leg 2
23 Strut 2
24 Drive Gear 1
25 Cotter Pin 1
26 Grip 1
27 Grip Cap 1
28 #6 Screw 1
29 Stub Axle 2
30
3
/
8 " Fender Washer 2
31
3
/ 8 " Locknut 2
32 Bolt,
3
/ 8 " x 4” 2
33 Bolt,
/ 4 " x1
1
/ 2 " 6
34 Bolt,
1
/ 4 " x
3
/ 4 " 1
35
1
/ 4 " Lockwasher 7
36
1
/ 4 " Nut 7
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
3635
