Mantis ElectricTiller - Upper Handle Assembly

7
Electric Tiller
C. Upper Handle Assembly
1. Attach the upper handle assembly (#1) – the handle
with the power cord – to the right lower handle (#10)
and secure with the handle knob (#12).
(Picture 1 and 2)
2. Follow the same steps to install the left upper
handle onto the left lower handle. (Picture 3)
3. Use the clip (#18) to secure the power cord in
place on the lower handle. (Picture 4)
4. Now install the Handle Brace (#14). Line it up with
the holes on the upper handles. Then insert a Bolt
(#13) and a Lock Nut (#17) on either side (Picture 5)
5. Use a wrench to tighten Bolt (#13) and
Lock Nuts (#17).
6. Now use wrench to tighten all nuts and bolts firmly
and securely.

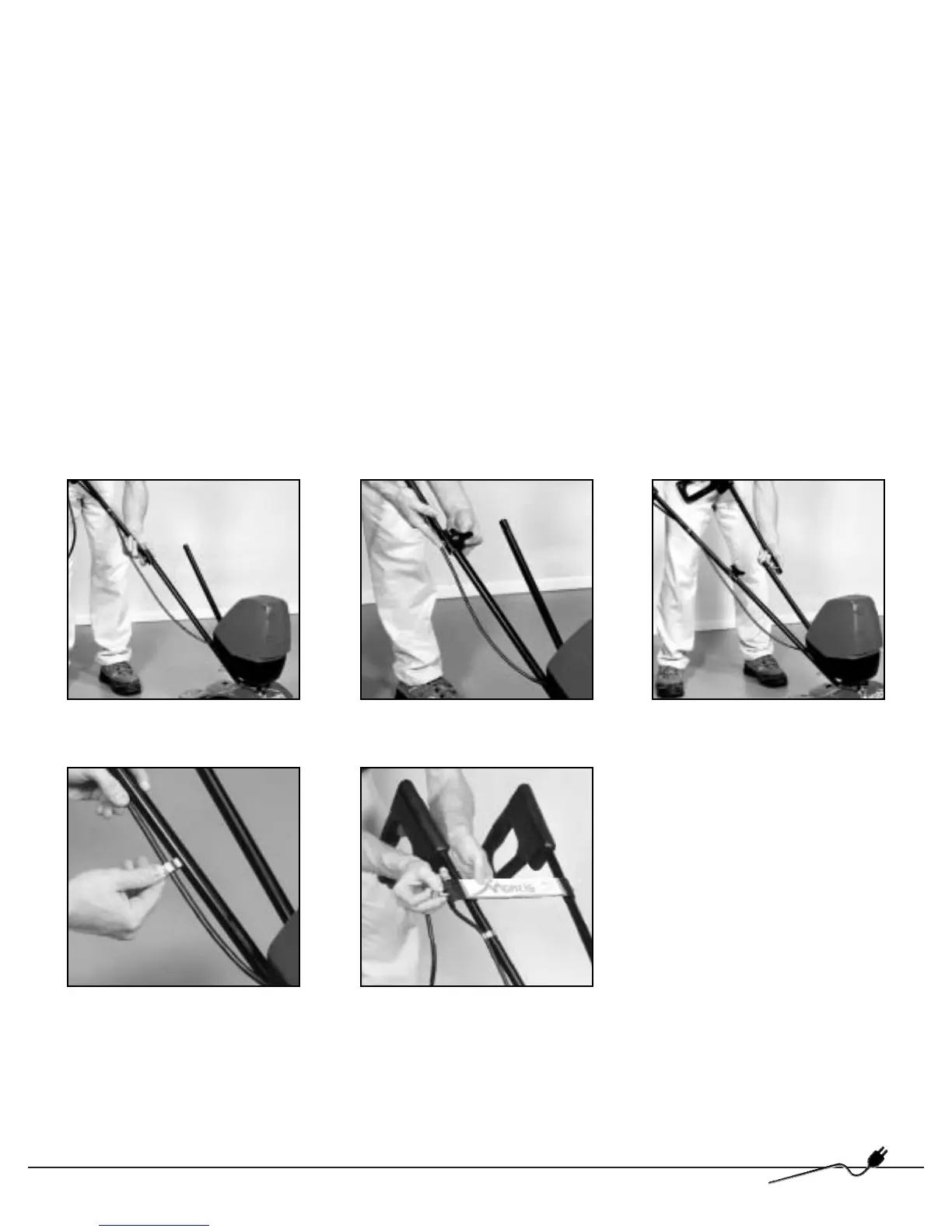

Picture 1
