Marantz 250 - Technical Specifications Summary; 100-Volt AC Conversion Procedure

-

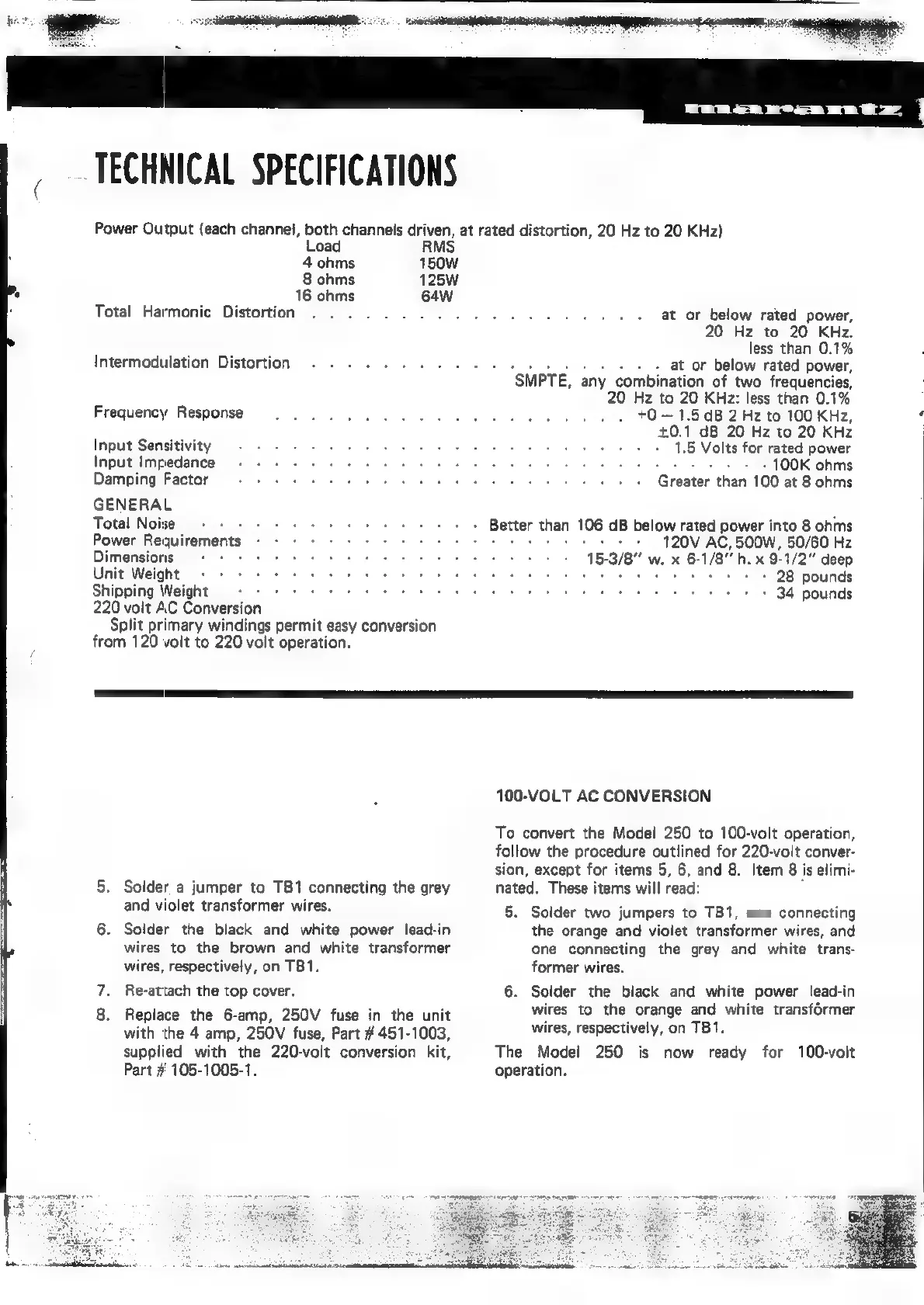

TECHNICAL
SPECIFICATIONS
Power
Output
(each
channel,
both
channels
driven,
at
rated
distortion,
20
Hz
to
20
KHz)
Load
4 ohms 150W
8 ohms 125W
Total Harmonic Distortion
Intermodulation Distortion
Frequency Response
Input Sensitivity
Input Impiedance
Damping Factor
GENERAL
Total Noise
Power Requirements
Dimensions .
Unit Weight
Shipping Weight
220 volt AC Conversion
Split primary windings permit easy conversion
from 120 volt to 220 volt operation.
5. Solder a jumper to TB1 connecting the grey
and violet transformer wires.
6. Solder the black and white power lead-in
wires to the brown and white transformer
wires, respectively, on TB1.
7. Re-attach the top cover.
8. Replace the 6-amp, 250V fuse in the unit
with the 4 amp, 250V fuse, Part # 451-1003,
supplied with the 220-volt conversion kit,
Part # 105-1005-1.
16 ohms 64W
at or below rated power,
20 Hz to 20 KHz.
less than 0.1%
. . at or below rated power,
“SMPTE, any combination of two frequencies,
20 Hz to 20 KHz: less than 0.1%
+0 — 1.5 dB 2 Hz to 100 KHz,
+0.1 dB 20 Hz to 20 KHz
1.5 Volts for rated power
+ + + + + 100K ohms
Greater than 100 at 8 ohms
` Better than 106 dB below rated power into 8 ohms
120V AC, 500W, 50/60 Hz
15: 3/8” w. x x 6- 18° h. x 9-1/2" deep
* 28 pounds
* 34 pounds
100-VOLT AC CONVERSION
To convert the Model 250 to 100-volt operation,
follow the procedure outlined for 220-volt conver-
sion, except for items 5, 6, and 8. Item 8 is elimi-
nated. These items will read: `
5. Solder two jumpers to TB1, one connecting
the orange and violet transformer wires, and
one connecting the grey and white trans-
former wires.
6. Solder the black and white power lead-in
wires to the orange and white transförmer
wires, respectively, on TB1.
The Model 250 is now ready for 100-volt
operation.
