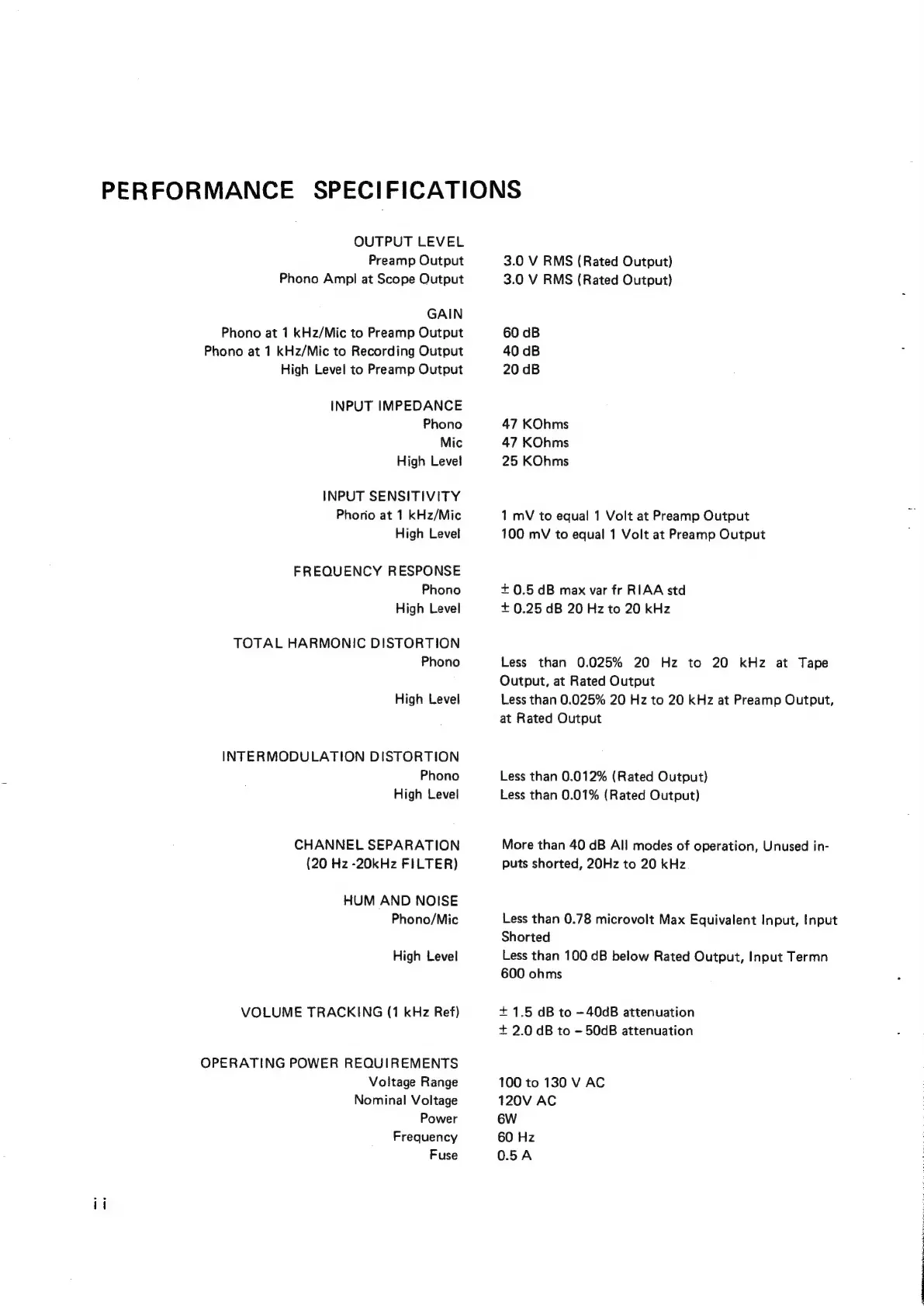

PERFORMANCE SPECIFICATIONS
OUTPUT LEVEL
Preamp Output
Phono Ampl at Scope Output
GAIN
Phono at 1 kHz/Mic to Preamp Output
Phono at 1 kHz/Mic to Recording Output
High Level to Preamp Output
INPUT IMPEDANCE
Phono
Mic
High Level
INPUT SENSITIVITY
Phorio at 1 kHz/Mic
High Level
FREQUENCY RESPONSE
Phono
High Level
TOTAL HARMONIC DISTORTION
Phono
High Level
INTERMODULATION DISTORTION
Phono
High Level
CHANNEL SEPARATION
(20 Hz -20kHz FILTER)
HUM AND NOISE
Phono/Mic
High Level
VOLUME TRACKING (1 kHz Ref)
OPERATING POWER REQUIREMENTS
Voltage Range
Nominal Voltage
Power
Frequency
Fuse
3.0 V RMS (Rated Output)
3.0 V RMS (Rated Output)
60 dB
40 dB
20 dB
47 KOhms
47 KOhms
25 KOhms
1 mV to equa! 1 Volt at Preamp Output
100 mV to equal 1 Volt at Preamp Output
+ 0.5 dB max var fr RIAA std
+ 0.25 dB 20 Hz to 20 kHz
Less than 0.025% 20 Hz to 20 kHz at Tape
Output, at Rated Output
Less than 0.025% 20 Hz to 20 kHz at Preamp Output,
at Rated Output
Less than 0.012% (Rated Output)
Less than 0.01% (Rated Output)
More than 40 dB All modes of operation, Unused in-
puts shorted, 20Hz to 20 kHz
Less than 0.78 microvolt Max Equivalent Input, Input
Shorted
Less than 100 dB below Rated Output, Inout Termn
600 ohms
+ 1.5 dB to —40dB attenuation
+ 2.0 dB to - 50dB attenuation
100 to 130 V AC
120V AC
6W
60 Hz
0.5A
