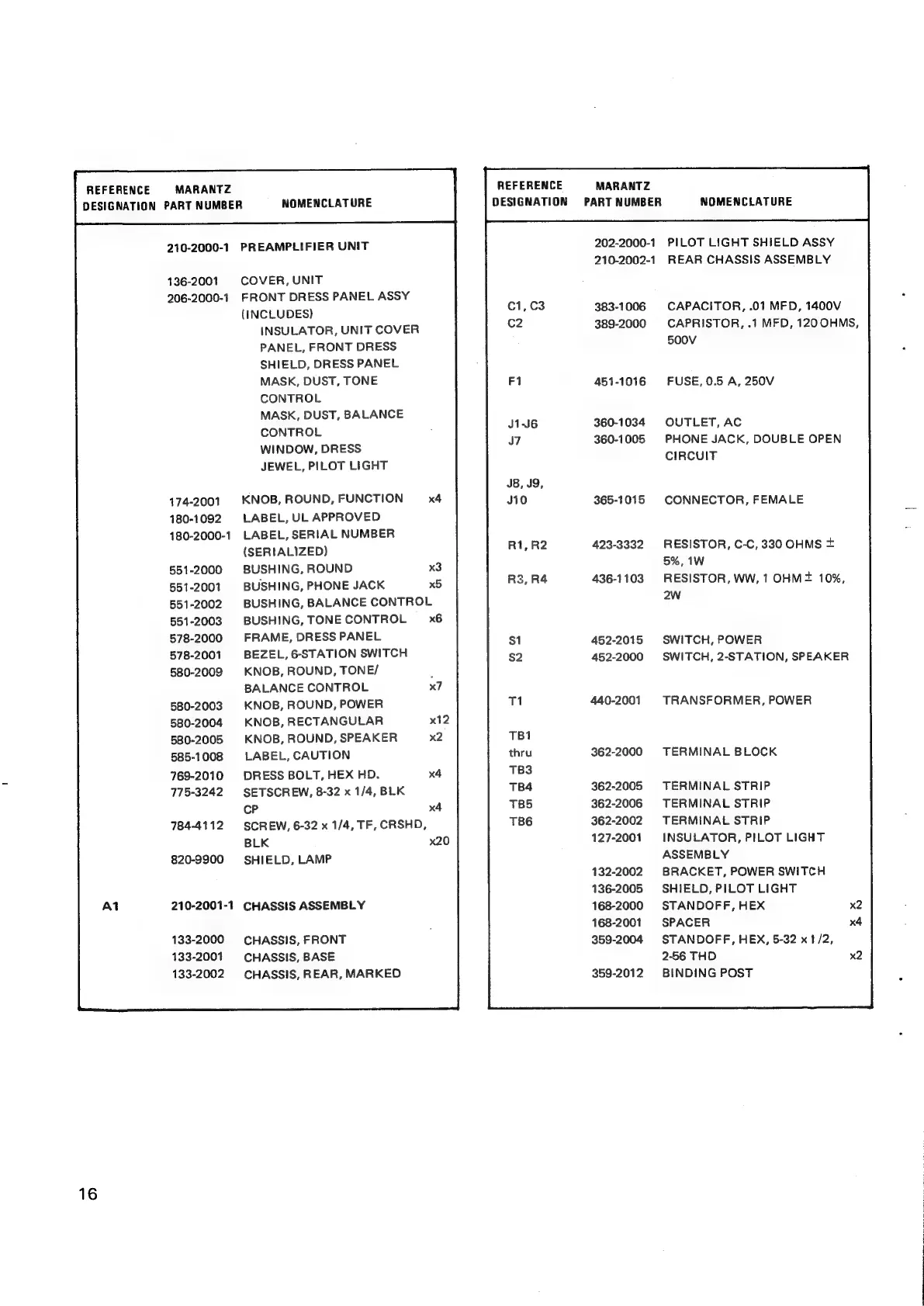

Marantz 3600 - Page 20

REFERENCE
DESIGNATION PART NUMBER
16
MARANTZ
210-2000-1
136-2001
206-2000-1
174-2001
180-1092
180-2000-1
551-2000
551-2001
551-2002
551-2003
578-2000
578-2001
580-2009
580-2003
580-2004
580-2005
585-1008
769-2010
775-3242
784-4112
820-9900
210-2001-1
133-2000
133-2001
133-2002
REFERENCE
NOMENCLATURE DESIGNATION
PREAMPLIFIER UNIT
COVER, UNIT
FRONT DRESS PANEL ASSY
(INCLUDES)
INSULATOR, UNIT COVER
PANEL, FRONT DRESS
SHIELD, DRESS PANEL
MASK, DUST, TONE
CONTROL
MASK, DUST, BALANCE
CONTROL
WINDOW, DRESS
JEWEL, PILOT LIGHT
KNOB, ROUND, FUNCTION x4
LABEL, UL APPROVED
LABEL, SERIAL NUMBER
(SERIALIZED)
BUSHING, ROUND x3
BUSHING, PHONE JACK x5
BUSHING, BALANCE CONTROL
BUSHING, TONECONTROL ~~ x6
FRAME, DRESS PANEL
BEZEL, 6-STATION SWITCH
KNOB, ROUND, TONE/
BALANCE CONTROL
KNOB, ROUND, POWER
KNOB, RECTANGULAR
KNOB, ROUND, SPEAKER
LABEL, CAUTION
DRESS BOLT, HEX HD.
SETSCREW, 8-32 x 1/4, BLK
cP
SCREW, 6-32 x 1/4, TF, CRSHD,
BLK x20
SHIELD, LAMP
CHASSIS ASSEMBLY
CHASSIS, FRONT
CHASSIS, BASE
CHASSIS, REAR, MARKED
MARANTZ
PART NUMBER
202-2000-1
210-2002-1
383-1006
389-2000
451-1016
360-1034
360-1005
365-1015
423-3332
436-1103
452-2015
452-2000
440-2001
362-2000
362-2005
362-2006
362-2002
127-2001
132-2002
136-2005
168-2000
168-2001
359-2004
359-2012
NOMENCLATURE
PILOT LIGHT SHIELD ASSY
REAR CHASSIS ASSEMBLY
CAPACITOR, .01 MFD, 1400V
CAPRISTOR, .1 MFD, 120OHMS,
500V
FUSE, 0.5 A, 250V
OUTLET, AC
PHONE JACK, DOUBLE OPEN
CIRCUIT
CONNECTOR, FEMALE
RESISTOR, C-C, 330 OHMS +
5%, 1W
RESISTOR, WW, 1 OHM + 10%,
2w
SWITCH, POWER
SWITCH, 2-STATION, SPEAKER
TRANSFORMER, POWER
TERMINAL BLOCK
TERMINAL STRIP
TERMINAL STRIP
TERMINAL STRIP
INSULATOR, PILOT LIGHT
ASSEMBLY
BRACKET, POWER SWITCH
SHIELD, PILOT LIGHT
STANDOFF, HEX
SPACER
STANDOFF, HEX, 5-32 x 1/2,
2-56 THD
BINDING POST
