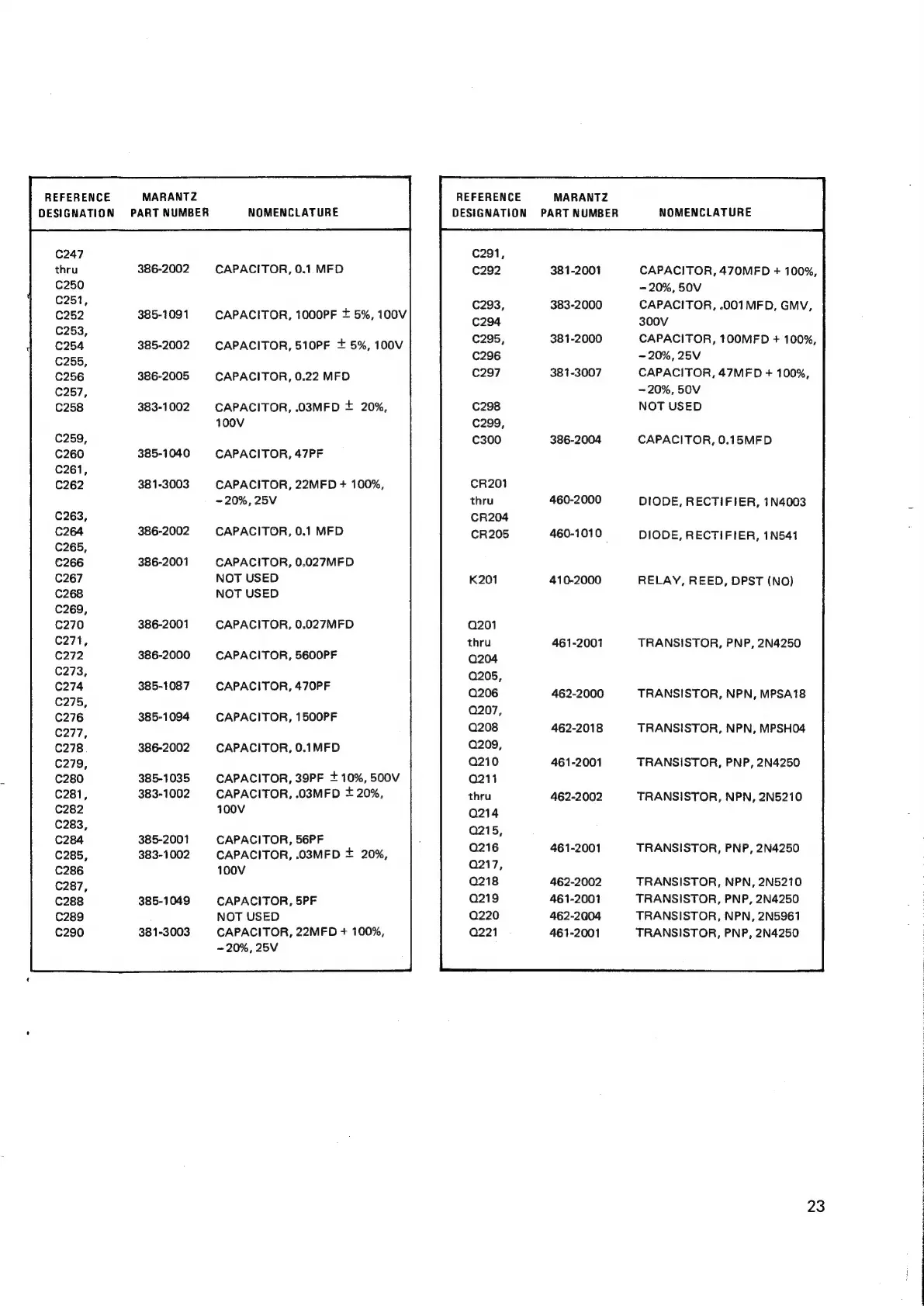

Marantz 3600 - Page 27

REFERENCE
DESIGNATION
MARANTZ
PART NUMBER
386-2002
385-1091
385-2002
386-2005
383-1002
385-1040
381-3003
386-2002
386-2001
386-2001
386-2000
385-1087
385-1094
386-2002
385-1035
383-1002
385-2001
383-1002
385-1049
381-3003
REFERENCE
NOMENCLATURE DESIGNATION
CAPACITOR, 0.1 MFD
CAPACITOR, 1000PF + 5%, 100V
CAPACITOR, 510PF + 5%, 100V
CAPACITOR, 0.22 MFD
CAPACITOR, .O3MFD + 20%,
100V
CAPACITOR, 47PF
CAPACITOR, 22MFD + 100%,
- 20%, 25V
CAPACITOR, 0.1 MFD
CAPACITOR, 0.027MFD
NOT USED
NOT USED
CAPACITOR, 0.027MFD
CAPACITOR, 5600PF
CAPACITOR, 470PF
CAPACITOR, 1500PF
CAPACITOR, 0.1MFD
CAPACITOR, 39PF + 10%, 500V
CAPACITOR, .O3MFD + 20%,
100V
CAPACITOR, S56PF
CAPACITOR, .O3MFD + 20%,
100V
CAPACITOR, SPF
NOT USED
CAPACITOR, 22MFD + 100%,
~- 20%, 25V
MARANTZ
PART NUMBER
381-2001
383-2000
381-2000
381-3007
386-2004
460-2000
460-1010
410-2000
461-2001
462-2000
462-2018
461-2001
462-2002
461-2001
462-2002
461-2001
462-2004
461-2001
NOMENCLATURE
CAPACITOR, 470MFD + 100%,
- 20%, 50V
CAPACITOR, .001MFD, GMV,
300V
CAPACITOR, 100MFD + 100%,
~ 20%, 25V
CAPACITOR, 47MFD + 100%,
— 20%, 50V
NOT USED
CAPACITOR, 0.15MFD
DIODE, RECTIFIER, 1N4003
DIODE, RECTIFIER, 1N541
RELAY, REED, DPST (NO)
TRANSISTOR, PNP, 2N4250
TRANSISTOR, NPN, MPSA18
TRANSISTOR, NPN, MPSH04
TRANSISTOR, PNP, 2N4250
TRANSISTOR, NPN, 2N5210
TRANSISTOR, PNP, 2N4250
TRANSISTOR, NPN, 2N5210
TRANSISTOR, PNP, 2N4250
TRANSISTOR, NPN, 2N5961
TRANSISTOR, PNP, 2N4250
