AV7005
AV7005 Networking AV Preamplifier/Processor
©2010 Marantz America, LLC · www.marantz.com
All specifications, dimensions and weights are subject to change without notice.
D&M Holdings, Marantz, Marantz America, LLC. or any of its subsidiaries will not assume any liability for errors in this spec sheet which may result in consequential errors
Being made by dealers, designers, custom installers, cabinet makers or end users, etc based upon information contained within this document.
Audio Section
• Analog
Input sensitivity/Input imped-
ance:
200 mV/47 kΩ
Frequency response:
10 Hz – 100 kHz — +1, –3 dB (DIRECT
mode)
S/N:
105 dB (IHF–A weighted, DIRECT mode)
Distortion:
0.005 % (20 Hz ~ 20 kHz) (DIRECT mode)
Rated output:
Unbalanced pre-output: 1.2 V
Balanced pre-output:
2.4 V
•Digital
D/A output:
Rated output — 2 V (at 0 dB playback)
Total harmonic distortion — 0.008 % (1
kHz, at 0 dB)
S/N ratio — 102 dB
Dynamic range — 100 dB
Digital input:
Format — Digital audio interface
• Phono equalizer (PHONO input
— REC OUT)
Input sensitivity:
2.5 mV
RIAA deviation:
±1 dB (20 Hz to 20 kHz)
S/N:
74 dB (A weighting, with 5 mV input)
Rated output:
150 mV
Distortion factor:
0.03 % (1 kHz, 3 V)
Video Section
• Standard video connectors
Input/output level and imped-
ance:
1 Vp-p, 75 Ω
Frequency response:
5 Hz – 10 MHz — +1, –3 dB
• Color component video con-
nector
Input/output level and imped-
ance:
Y (brightness) signal — 1 Vp-p, 75
Ω
PB / CB signal — 0.7 Vp-p, 75 Ω
PR / CR signal — 0.7 Vp-p, 75 Ω
Frequency response:
5 Hz – 60 MHz — +0, –3 dB
(when “Video Convert” set to
Tuner Section [FM] [AM]
(Note: μV at 75 Ω, 0 dBf = 1 x 10–
15 W)
Receiving Range:
87.5 MHz – 107.9 MHzkHz
530
kHz –
1710
Usable Sensitivity:
1.5 μV (14.8 dBf) 18 μV
S/N (IHF-A):
MONO 78 dB
STEREO 68 dB
HD 85 dB 85 dB
Total harmonic Distortion (at 1
kHz):
MONO 0.1 %
STEREO 0.2 %
HD 0.02 % 0.02%
General
Power supply:
AC 120 V, 60 Hz
Power consumption:
60 W
0.2 W (Standby)
4.0 W (CEC standby)
Maximum external dimensions:
440 (W) x 187 (H) x 395(D) mm
Weight: 10.1 kg
10.1 kg
Remote Control Unit
(RC011SR)
Batteries:
R03/AAA Type (two batteries)
For purposes of improvement, specifications and design are subject to
change without notice.

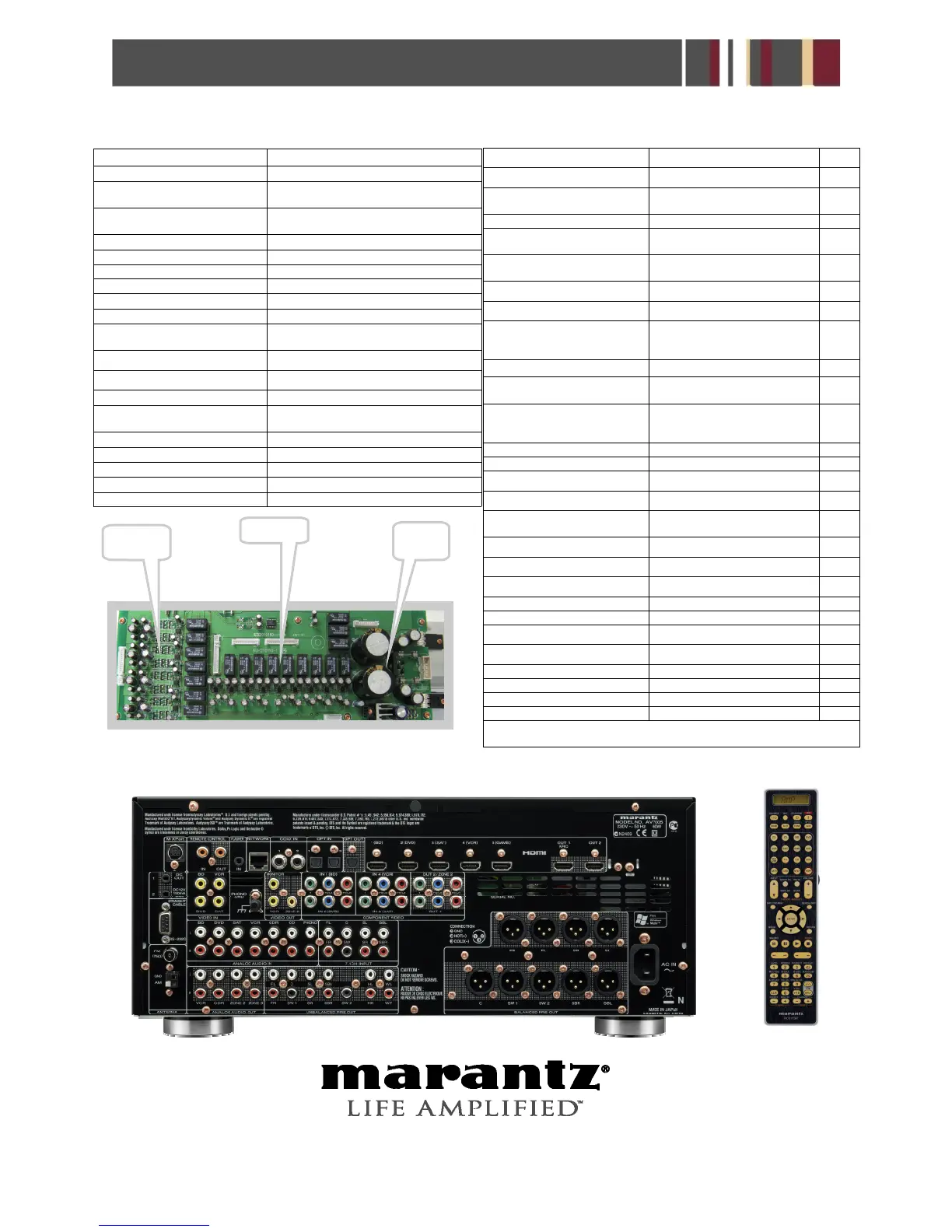

AV 7005 Dedicated Preamplifier Subassembly
SYMMETRICAL
HDAM
LAYOUT
GOLD-PLATED
RELAYS
REGULATED
POWER
SUPPLY
