o

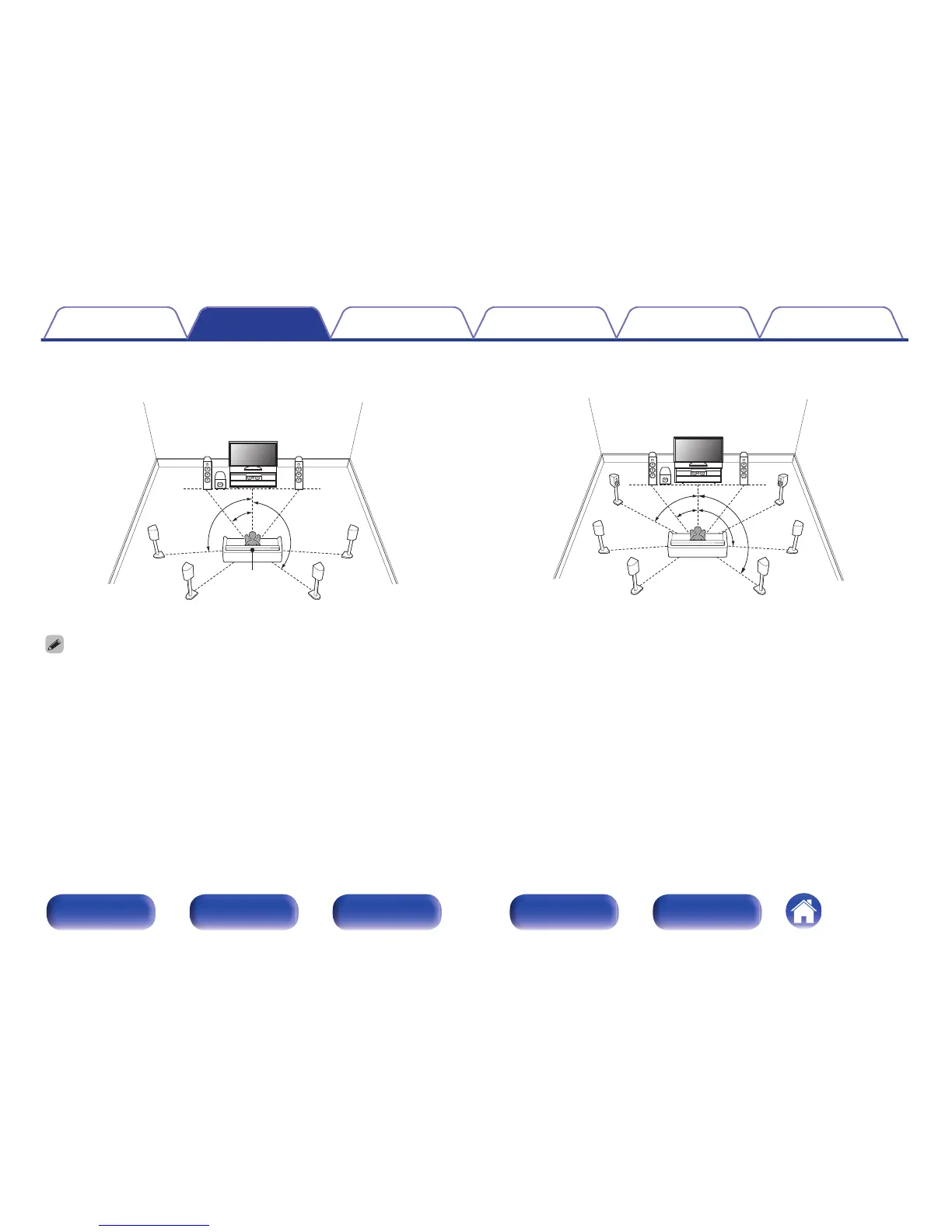

When 7.1-channel speakers are installed using
surround back speakers
.
z1
z2
z3
FL
SW
C
SL
SBL
FR
SR
SBR
Listening
position
z
1:22° - 30°
z
2:90° - 110°
z
3:135° - 150°
When using a single surround back speaker, place it directly behind the listening
position.
o
When 9.1-channel speakers are installed using
front wide speakers
.
z3
z2
z1
z4
SBL
SBR
FL
SW
C
SL
FR
SR
FWL
FWR
z
1: 22° - 30°
z
2: 55° - 60°
z
3: 90° - 110°
z
4: 135° - 150°
