7.1-channel playback (surround back)

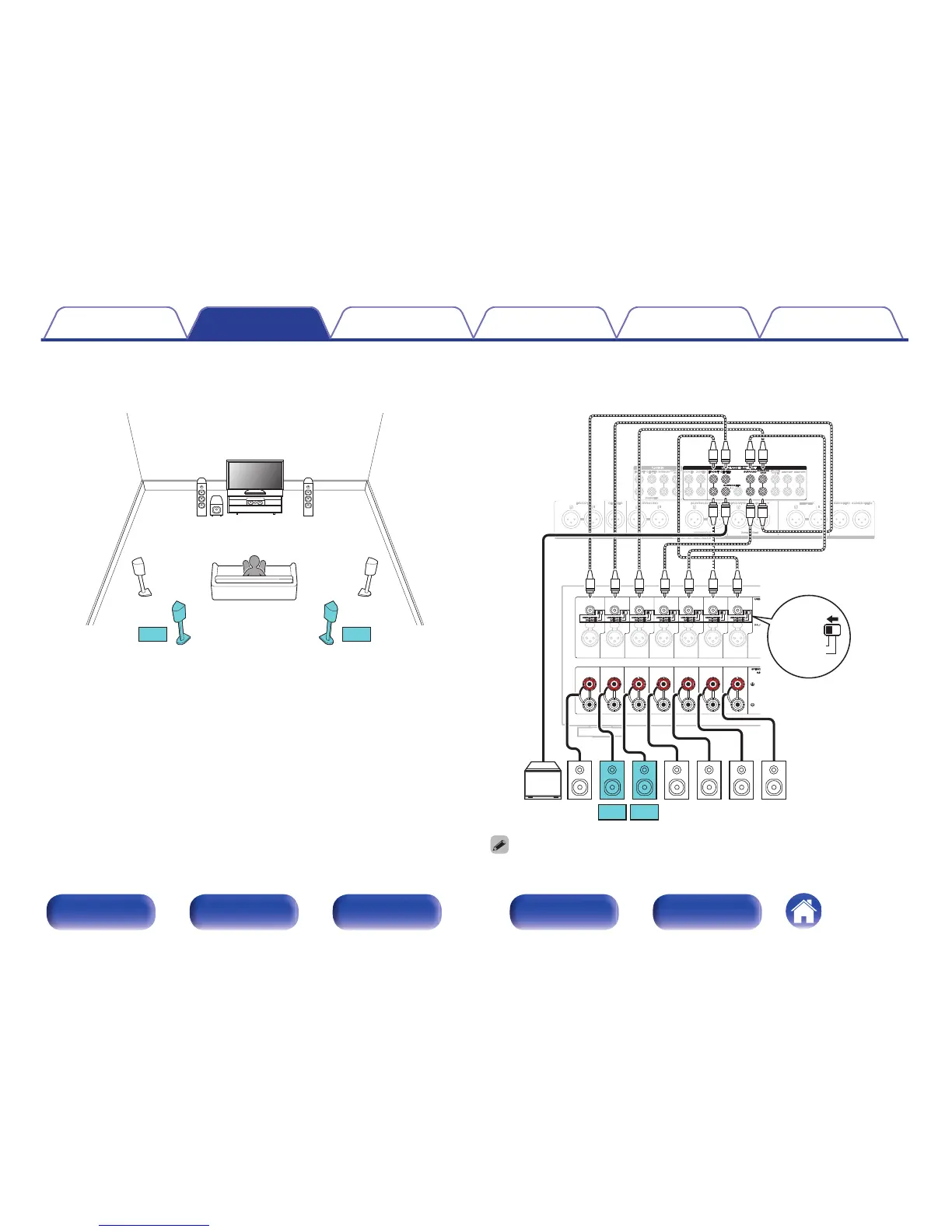

This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.
.
FL
SW
SL
FR
SR
SBRSBL
.
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
BALANCED
BALANCED
UNBALANCED
UNBALANCED
SW
SR SL FR FLC
SBLSBR
【
MM8077
】
When using a single surround back speaker, connect it to the SURROUND BACK L
connector.
