Upgrade (Auro-3D)
o
Auro-3D

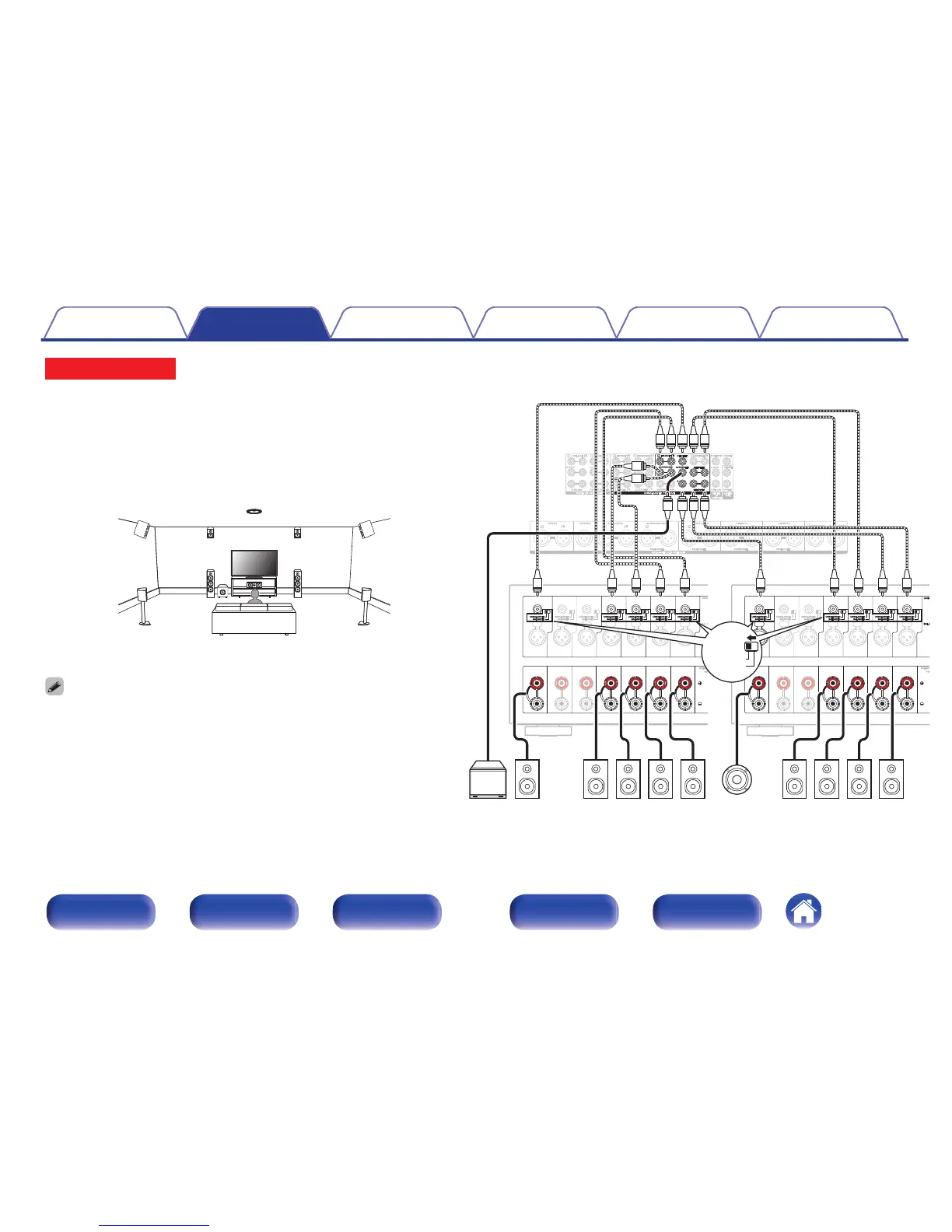

This speaker configuration is optimized for Auro-3D playback.
n
9.1/10.1-channel system
Top surround speaker is optional for Auro-3D.
.
FHL FHR
SHL
SHR
TS
FL FR
SW
SL SR
C
For the best Auro-3D experience surround height speakers are recommended,
however you may substitute rear height speakers from a Dolby Atmos speaker setup
in place of surround height speakers.
When using the rear height speakers, set “Assign Mode” to “9.1ch” or “11.1ch”.
.
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL7
(C)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
SW SR SL FR FLC
BALANCED
BALANCED
UNBALANCED
UNBALANCED
TS FHL
SHR SHL
FHR
【
MM8077
】
